Cisco CGS 2520 Hardware Installation Guide
OL-31444-01
Chapter 2 Switch Installation
Installing the Switch

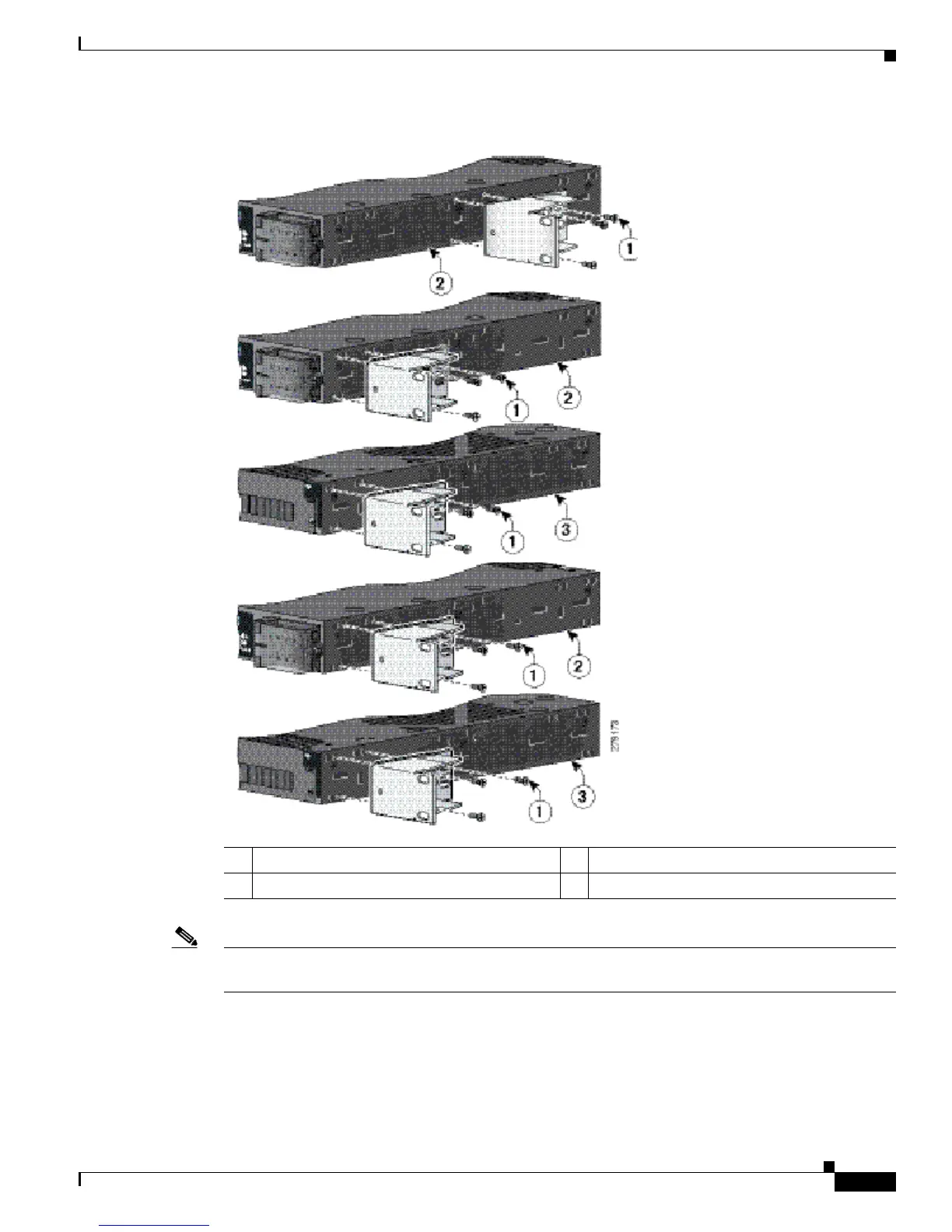

Figure 2-11 Attaching Brackets for 23-Inch Racks
Note For IP-30 compliance: If you use 23-inch brackets, you can insert the rubber plugs in the same holes as
shown in Figure 2-7 or Figure 2-8 before installing the brackets.
Attaching Brackets for ETSI Racks
Figure 2-12 shows the mounting bracket locations on the switch for cable-side mounting and power-side
mounting onto an ETSI rack.
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side-mounting position
