Chapter 2 Switch Installation
Installing the Switch

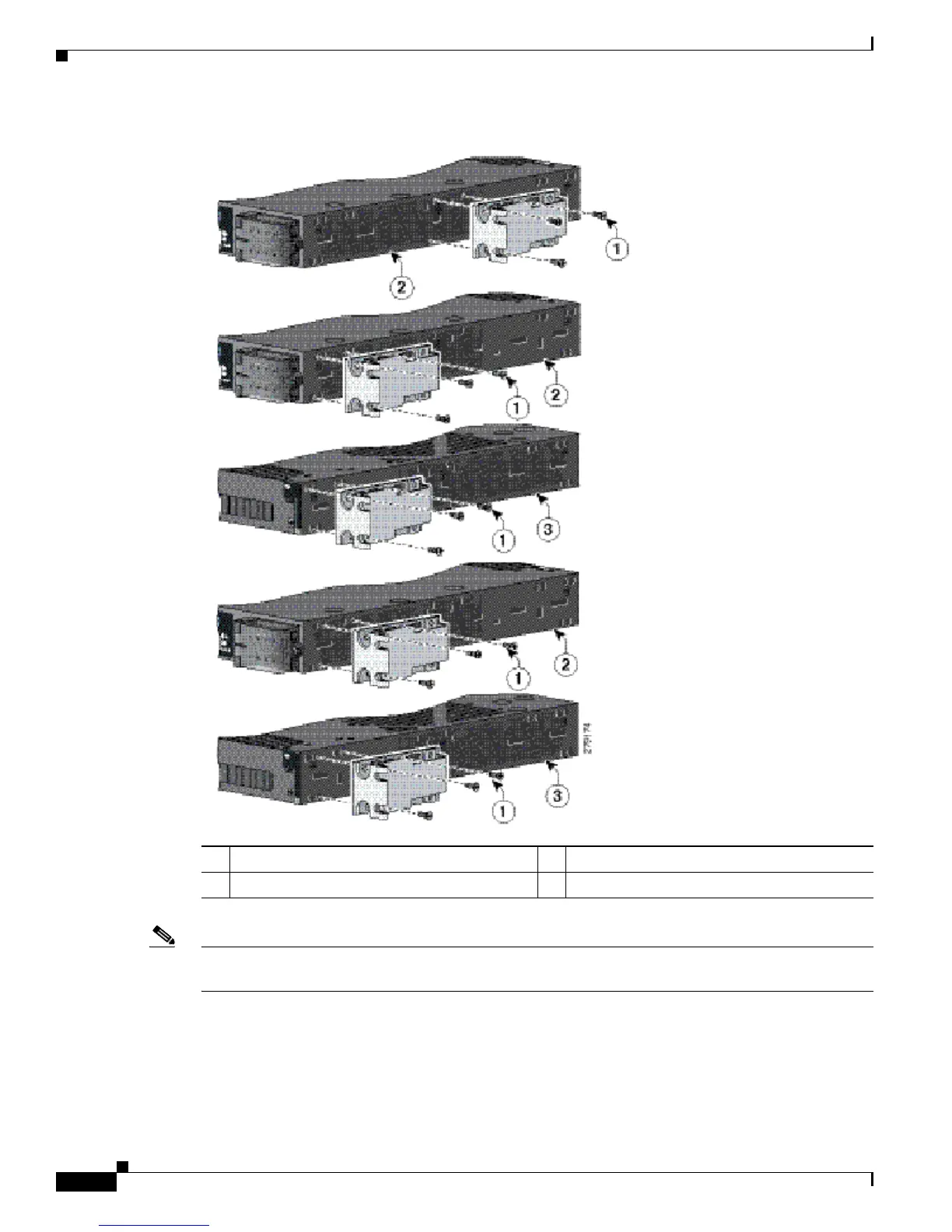

Figure 2-12 Attaching Brackets for ETSI Racks
Note For IP-30 compliance: If you use ETSI brackets, you can insert the rubber plugs in the same holes as
shown in Figure 2-7 or Figure 2-8 before installing the brackets.
1 Phillips flat-head screws 3 Power supply-side mounting position
2 Cable-side mounting position
