2-23
Cisco CGS 2520 Hardware Installation Guide
OL-31444-01
Chapter 2 Switch Installation
Replacing the SD Flash Memory Card

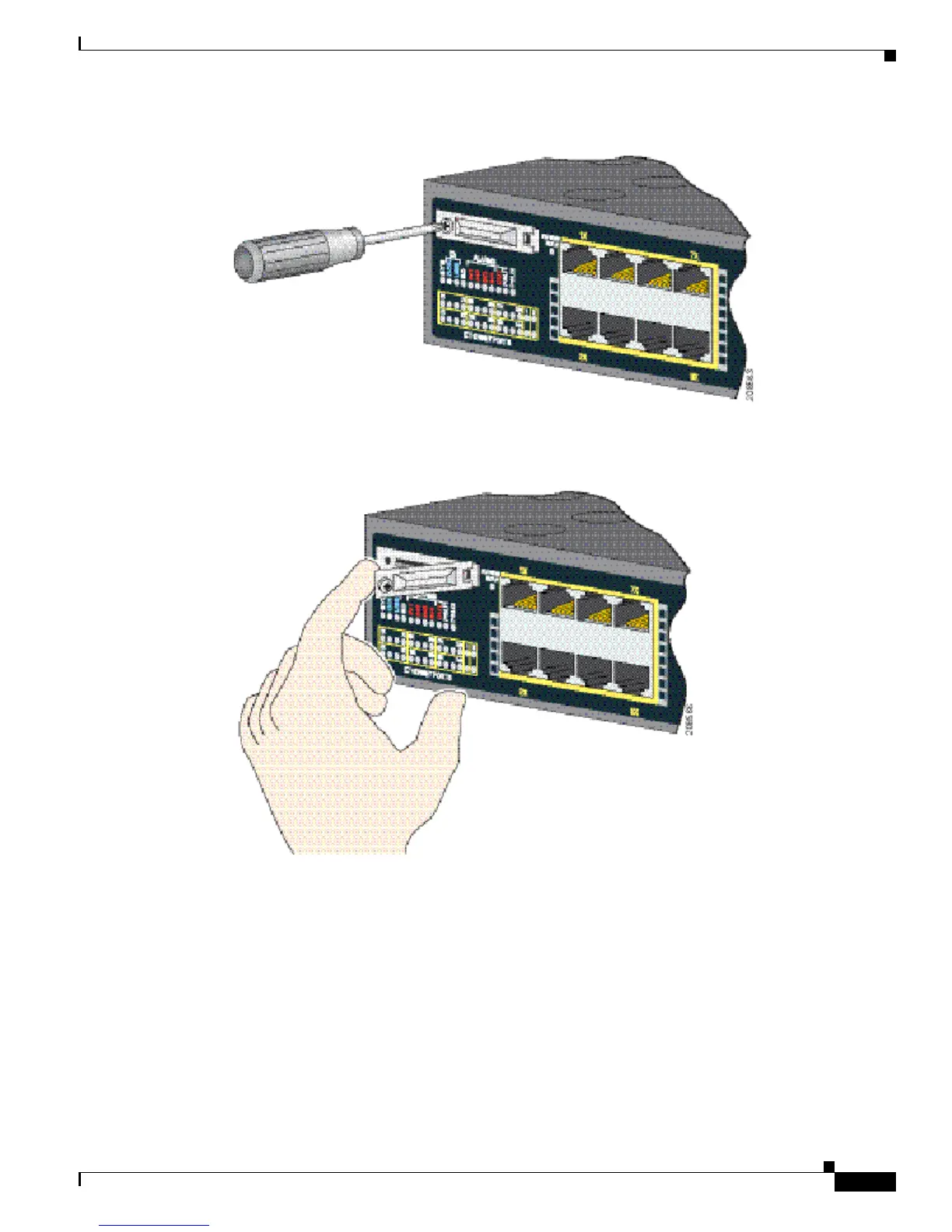

Figure 2-21 Loosening the Captive Screw
Step 3
Pull the cover open, and pull the cover tabs from the hinge (see Figure 2-22).
Figure 2-22 Removing the SD Slot Cover
Step 4
Gently push the SD flash memory card to eject it (see Figure 2-23). Place it in an antistatic bag to protect
it from static discharge.
