1-2 Cisco 4000 Series Hardware Installation and Maintenance
Series Specifications

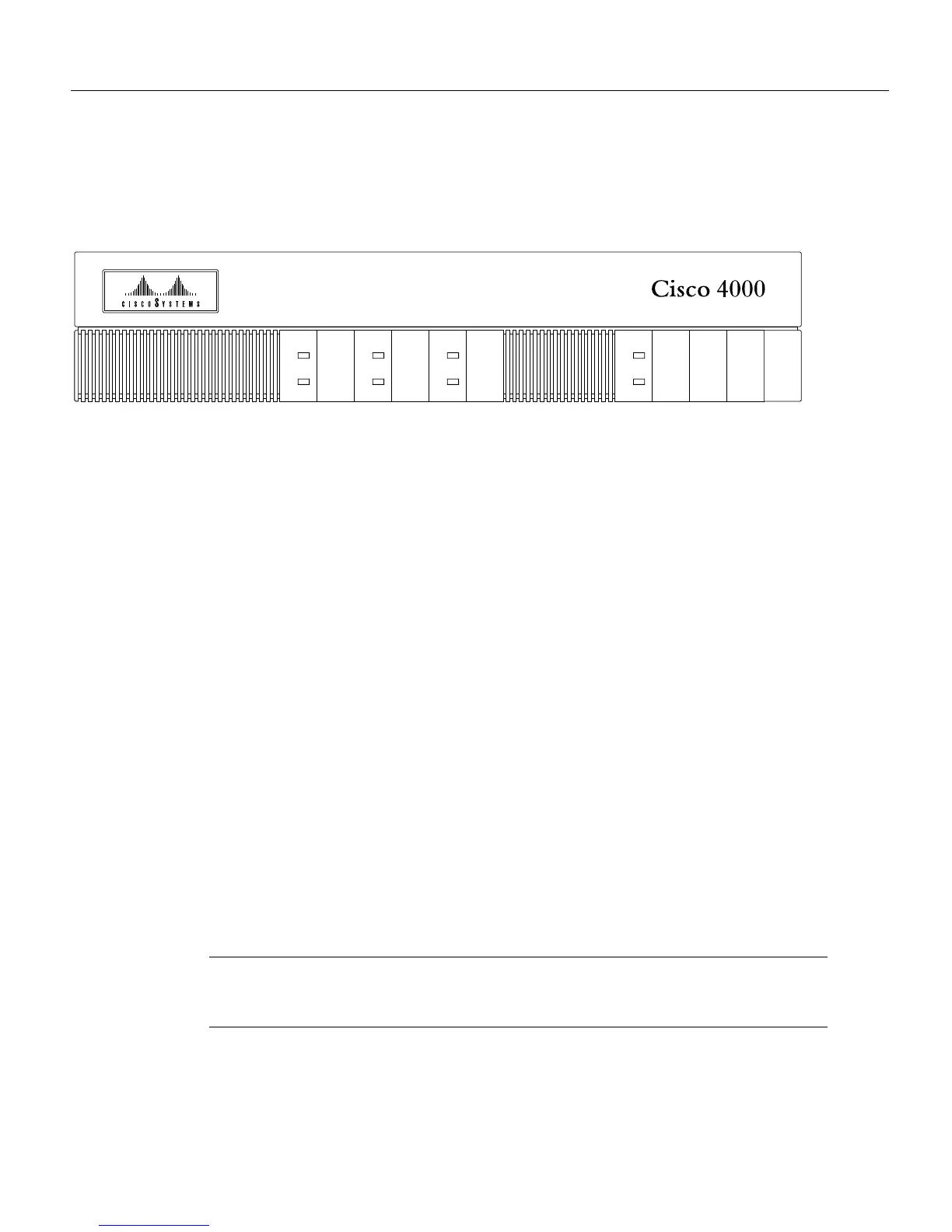

Figure 1-1 shows the front panel of a Cisco 4000 series router.
Figure 1-1 Cisco 4000 Series Chassis—Front Panel
Series Specifications
Design specifications for the Cisco 4000 series follow:
• Modular router platform
• Flash memory capability
• User-upgradable network processor modules, shared memory, and processor local memory
• Hardware thermal alarm to warn of excessively high operating temperature
• Rack-mountable in either a standard 19-inch rack or telco rack
• Wall, desktop, or desk-side mountable
• Support for up to three network processor modules at a time, including Ethernet, Token Ring,
serial, single-mode and multimode Fiber Distributed Data Interface (FDDI), ISDN BRI, G.703,
channelized T1/PRI, channelized T1/PRI, and ATM modules. Network processor modules can
be placed in any of the three available positions in any desired combination.
The BRI 4-port and 8-port network interface modules (NP-4B/NP-8B) are not compatible with
the Channelized T1/ISDN PRI network interface module (NP-CT1) or with the Channelized
E1/ISDN PRI network interface module ((NP-CE1).
The Cisco 4000-M can support only one FDDI network processor module in combination with
any two other types of network processor modules. The Cisco 4500-M and Cisco 4700 can
support two FDDI network processor modules. For optimum heat dissipation, use the center slot
position for the FDDI module if one is present.
Note The Cisco 4500-M and Cisco 4700 support all network processor modules except the
single-port Ethernet network processor module and early versions of the single and dual Token Ring,
dual Ethernet, and FDDI modules.
H3590
2
DATA
OK
3
DATA
OK
1
DATA
OK POWER
OK
SERIES
