2-34 Cisco 4000 Series Hardware Installation and Maintenance
Network Connection Considerations

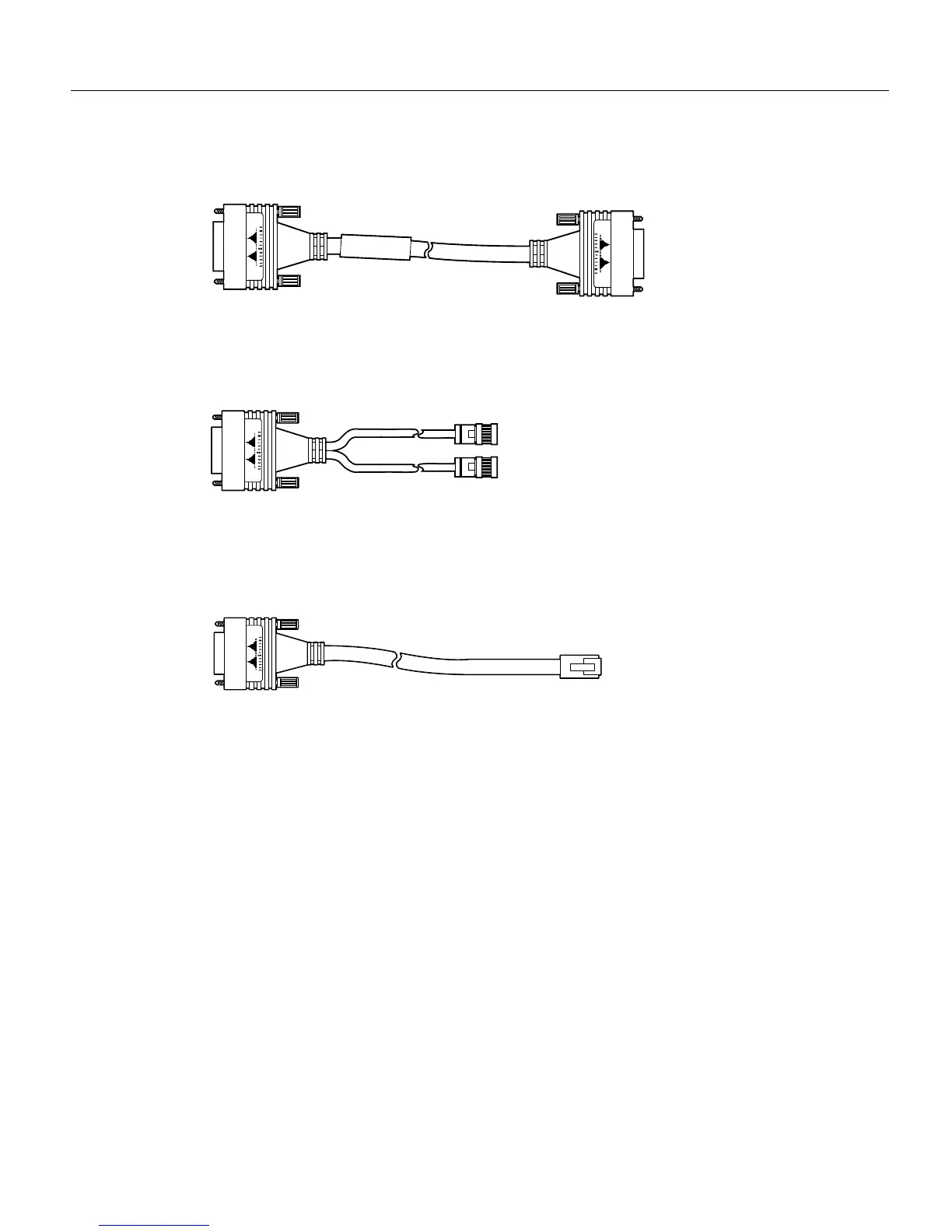

Figure 2-37 E1 Interface Cable for 120-Ohm, Balanced Connections
(with DB-15 Connectors)
Figure 2-38 E1 Interface Cable for 120-Ohm, Balanced Connections
(with Twinax Connectors)
Figure 2-39 E1 Interface Cable for 120-Ohm, Balanced Connections
(with RJ-45 Connector)
ATM Connections
The ATM processor module for a Cisco 4000 series router provides a user network interface (UNI)
between the router and an ATM network.
The ATM module provides an interface to ATM switching fabrics for transmitting and receiving data
at rates of up to 155 Mbps in each direction (Rx and Tx); the actual rate is determined by the PLIM
and ATM network technology (i.e., by the specific physical layer). The ATM processor module
supports PLIMs that connect to the following physical layers:
• SONET/SDH 155 Mbps multimode fiber optical—STS-3c or STM-1 (See Figure 2-41)
• SONET/SDH 155 Mbps single-mode fiber optical—STS-3c or STM-1 (See Figure 2-40)
All ATM interfaces are full-duplex. You must use the appropriate ATM interface cable and
accessories to connect the ATM processor module with an external ATM network. The ATM
interface cable is used to connect your router to an ATM switch, or to connect two router ATM
interfaces in a back-to-back manner.
An ATM processor module can be installed in any available network processor slot. If the middle
slot is not occupied by an FDDI NPM, use this slot for the ATM NPM.
