Reading Network Processor Module LED Indicators

CT1 Network Processor Module LED Indicators

The three LEDs on the CT1 network processor module are labeled loopback, local alarm, and remote

alarm. (See Figure 4-15.)

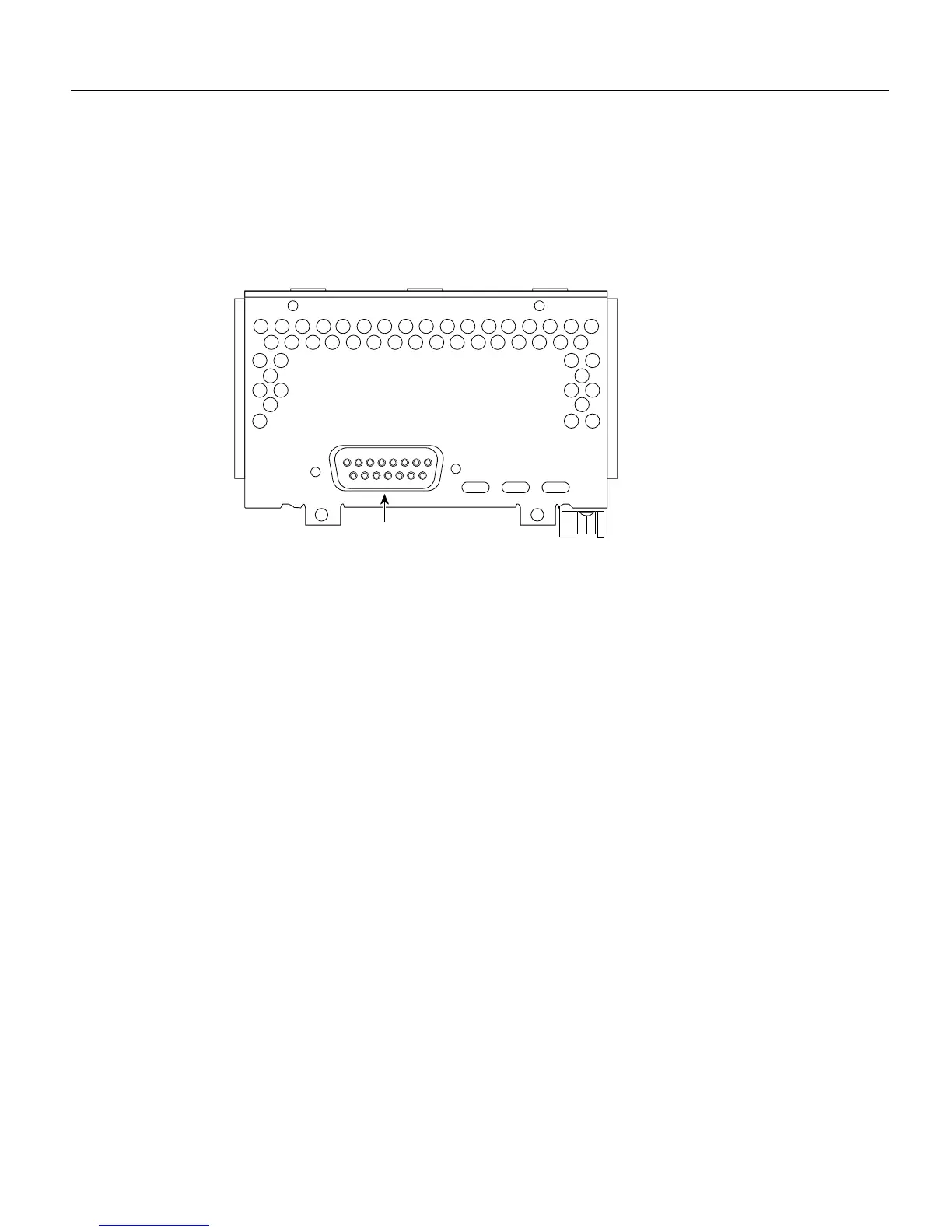

Figure 4-15 Channelized T1 Network Interface Processor

The three LEDs on the CT1 front panel indicate the following:

• Loopback—Indicates controller local loopback.

• Local alarm—Indicates a loss of signal, a loss of frame, or unavailability because of excessive

errors.

• Remote alarm—Indicates a remote alarm is received from the remote end because of a local

alarm at the remote end.

H3155

cT1/ PRI

LOOPBACK

LOCAL ALARM

REMOTE ALARM

DB-15

female
