Reading Network Processor Module LED Indicators
Four Port Serial Module Indicators

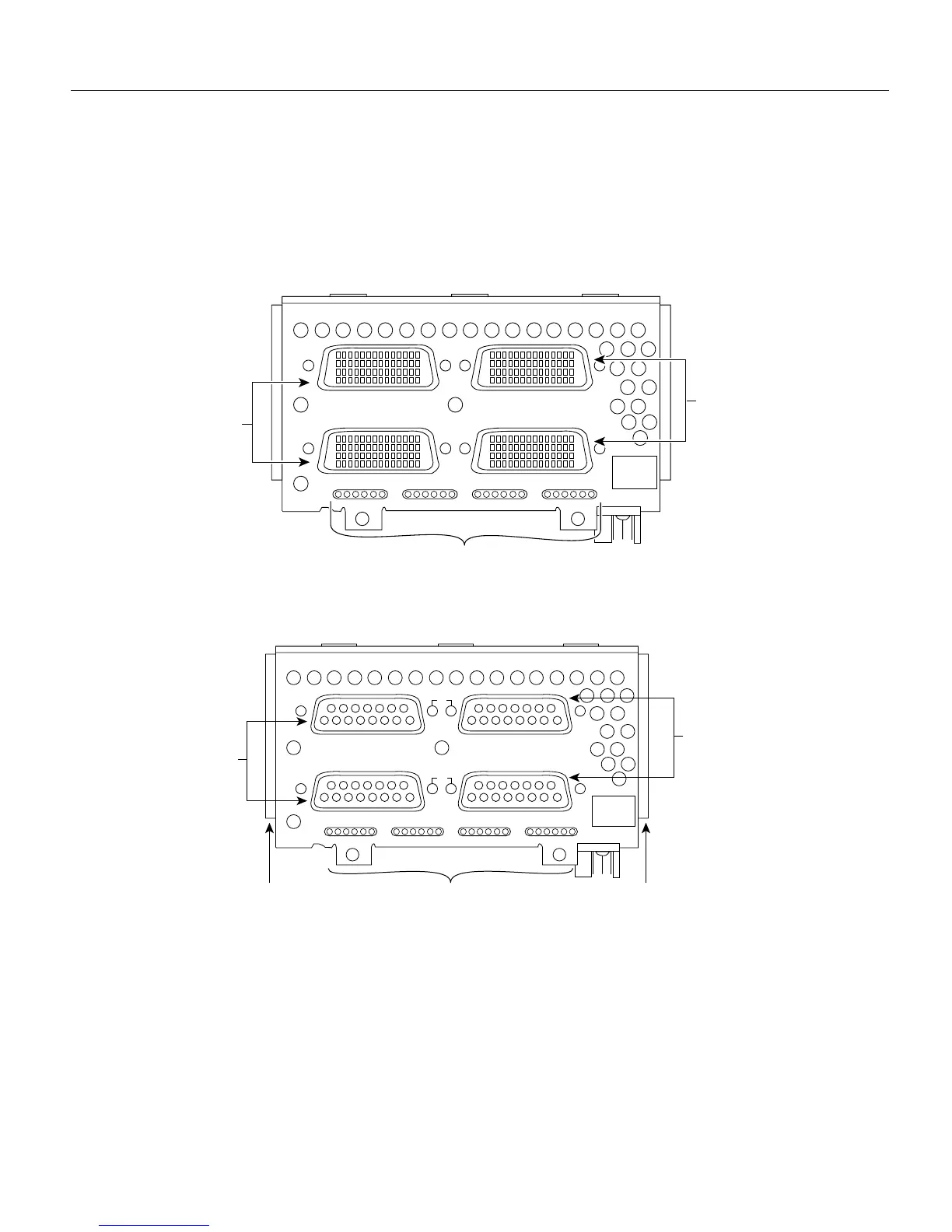

The four port serial network processor module has six LEDs per port. (See Figure 4-5 and
Figure 4-6.) LED Indicators and colors are explained in Table 4-1. The four port serial LEDs
functions are different from the dual serial module’s functions.
Figure 4-5 Four-Port Serial Network Processor Module Ports
Figure 4-6 G.703/G.704 Serial Network Processor Module Ports (DB-15)
60-Pin
ports
H1981
PORT-3 PORT-2
PORT-1 PORT-0
P-3
P-1
P-2
P-0
P-3 P-2 P-1`
P-0
LP CN TD TC RD RC LP CN TD TC RD RC LP CN TD TC RD RC LP CN TD TC RD RC
LEDs
60-Pin
ports
Alignment
groove
Alignment
groove
H2792
PORT-3 PORT-2
PORT-1 PORT-0
P-3
P-1
P-2
P-0
P-3 P-2 P-1`
P-0
LP CN TD TC RD RC LP CN TD TC RD RC LP CN TD TC RD RC LP CN TD TC RD RC
LEDs
DB-15
female
ports
DB-15
female
ports
E1
E1
