Installing the Router 3-3
Making Network Connections
Making Ethernet Connections
Ethernet network processor modules contain both Ethernet AUI connectors and 10BaseT
connectors. Dual Ethernet modules contain two of each type of connector interface.
For dual-port Ethernet modules (see Figure 3-2), connect either the Ethernet AUI connector or the
10BaseT connector on a specific Ethernet port, but not both connectors on the same port. For
single-port Ethernet modules (see Figure 3-3), connect either the Ethernet AUI or the 10BaseT
connector, but not both on the same module.
In Figure 3-2, the configuration on the left, showing two network connections attached to Port 0, is
unsupported; the configuration on the right, which shows two network connections, one to Port 0
and one to Port 1, is supported.

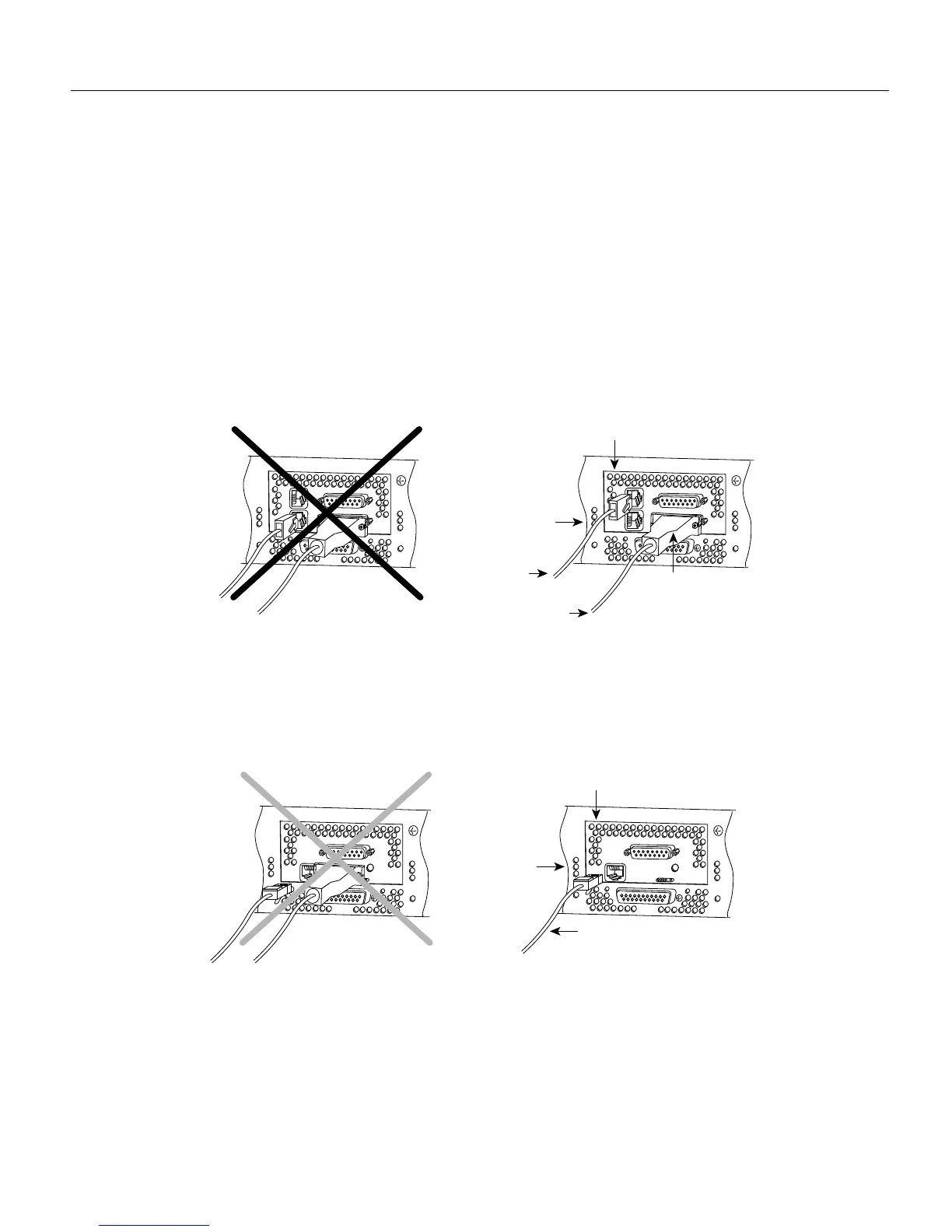

Figure 3-2 Making Dual-Ethernet Module Network Connections
In Figure 3-3, the single-port Ethernet module on the left shows an unsupported configuration of two
network connections going to two connectors on the same port; the module on the right shows a
supported connection with a single 10BaseT cable connecting to a single connector on the port.
Figure 3-3 Unsupported and Supported Single-Port Ethernet Module Connections
H1571a
10BaseT cable
to transceiver
AUI
AUX
Router
(rear view)
Ethernet moduleUnsupported configuration
AUI
AUI
AUX
AUI
Slide-latch
connector
Ethernet transition
cable to transceiver
H1570a
10BaseT cable
to transceiver
AUI
10BASE T
AUX
Router
(rear view)
Ethernet module
AUI
10BASE-T
AUX
Unsupported configuration
