Troubleshooting the Initial Hardware Configuration 4-13

Reading Network Processor Module LED Indicators

CE1 Network Processor Module LED Indicators

The three LEDs on the CE1 network processor module are labeled loopback, local alarm, and remote

alarm. (See Figure 4-16.)

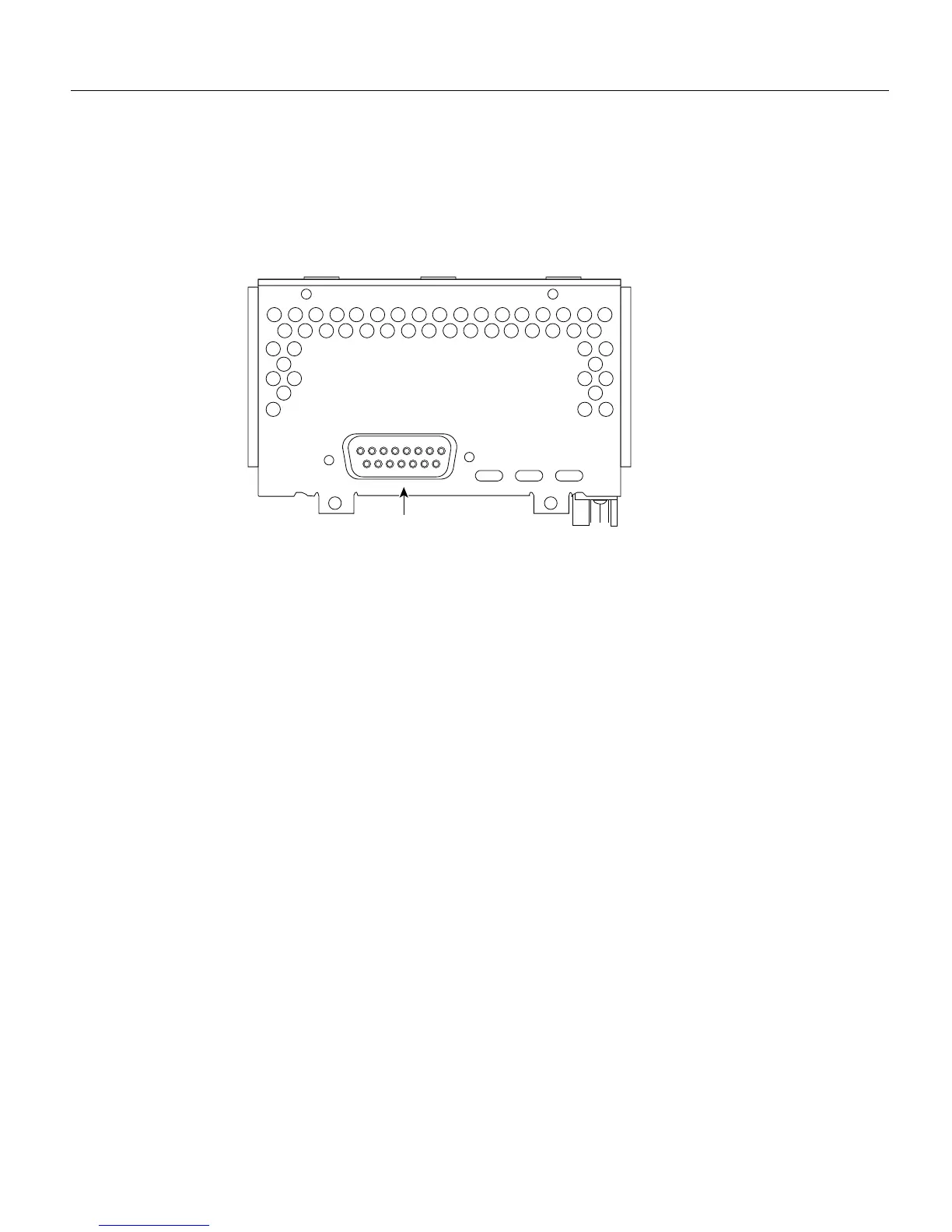

Figure 4-16 Channelized E1 Network Interface Processor

The three LEDs on the CE1 front panel indicate the following:

• Local alarm—Indicates a loss of signal, a loss of frame, or unavailability because of excessive

errors.

• Remote alarm—Indicates a remote alarm is received from the remote end because of a local

alarm at the remote end.

• Loop—Indicates controller local loopback.

H3154

cE1/ PRI

LOOPBACK

LOCAL ALARM

REMOTE ALARM

DB-15

female
