Preparing for Installation 2-35
Network Connection Considerations

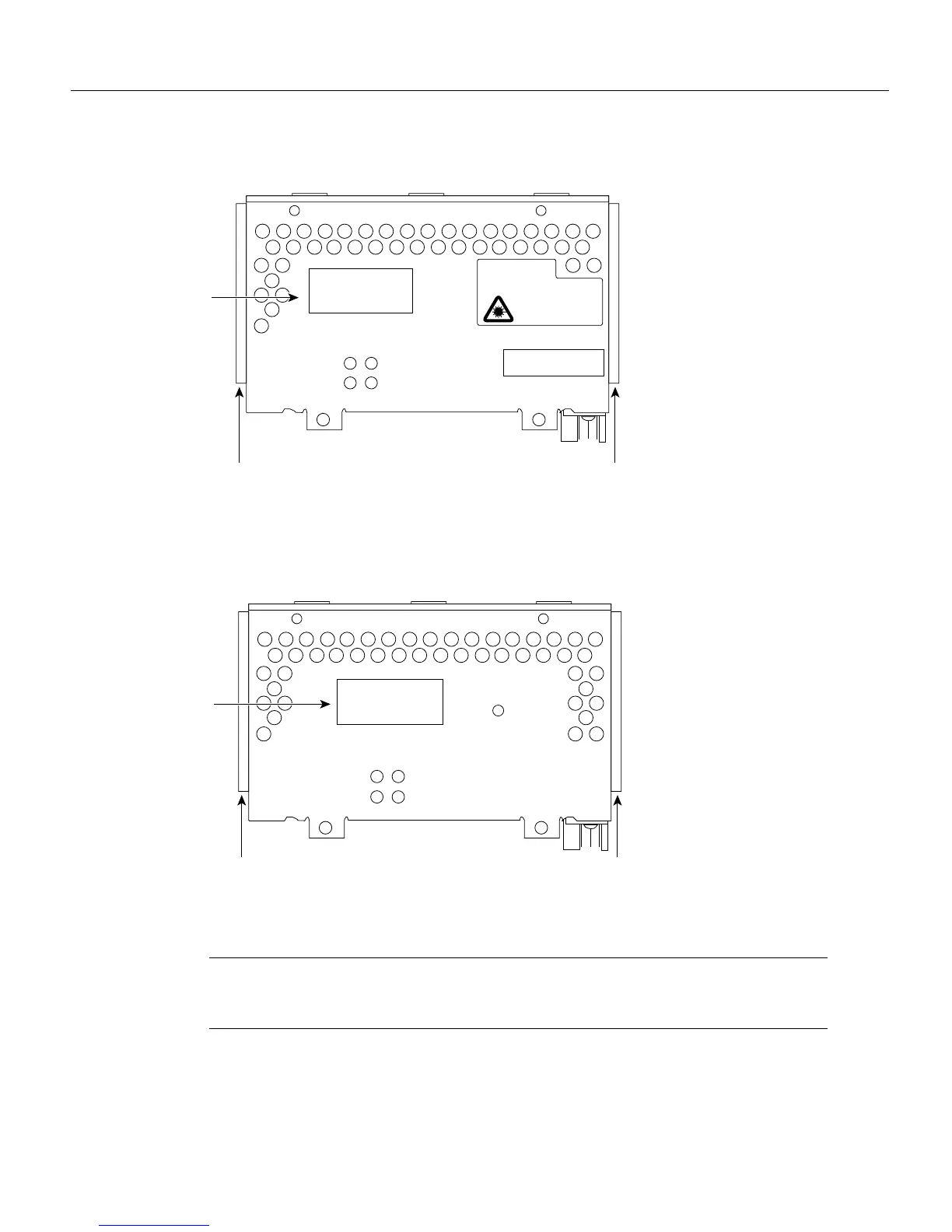

Figure 2-40 ATM Network Processor Module with STS-3c/STM-1 Single Mode PLIM
Figure 2-41 ATM Network Processor Module with STS-3c/STM-1 Multimode PLIM
Note Traffic from multiple ATM interfaces could exceed the available bandwidth in the router,
causing packets to be dropped. Therefore the Cisco 4500-M and Cisco 4700 routers currently
support one ATM module.
ATM Cabling
For single- or multi-mode SONET connections, connect the fiber cable to the SC-style receptacle on
the module front panel. The SONET SC-duplex connector is shipped with a dust plug. Remove the
plug by pulling on the plug as you squeeze the sides of the connector.
H3157
Alignment
groove
Alignment
groove
ATM
SM
XMTR RCVR
RX ALARM
AVOID EXPOSUREÐINVISIBLE
LASER RADIATION IS EMITTED
FROM THESE APERTURES.
WARNING
CISCO SYSTEMS, INC.
170 W. TASMAN DRIVE
SAN JOSE CA. 95134
DATE:
ÒComplies with FDA Radiation
Performance Standards, 21 CFR,
Subchapter JÓ
1300
NM
CLASS 1 LASER PRODUCT
LASERKLASSE 1
READY
RX CELLSBUSY
