2-14 Cisco 4000 Series Hardware Installation and Maintenance
Network Connection Considerations

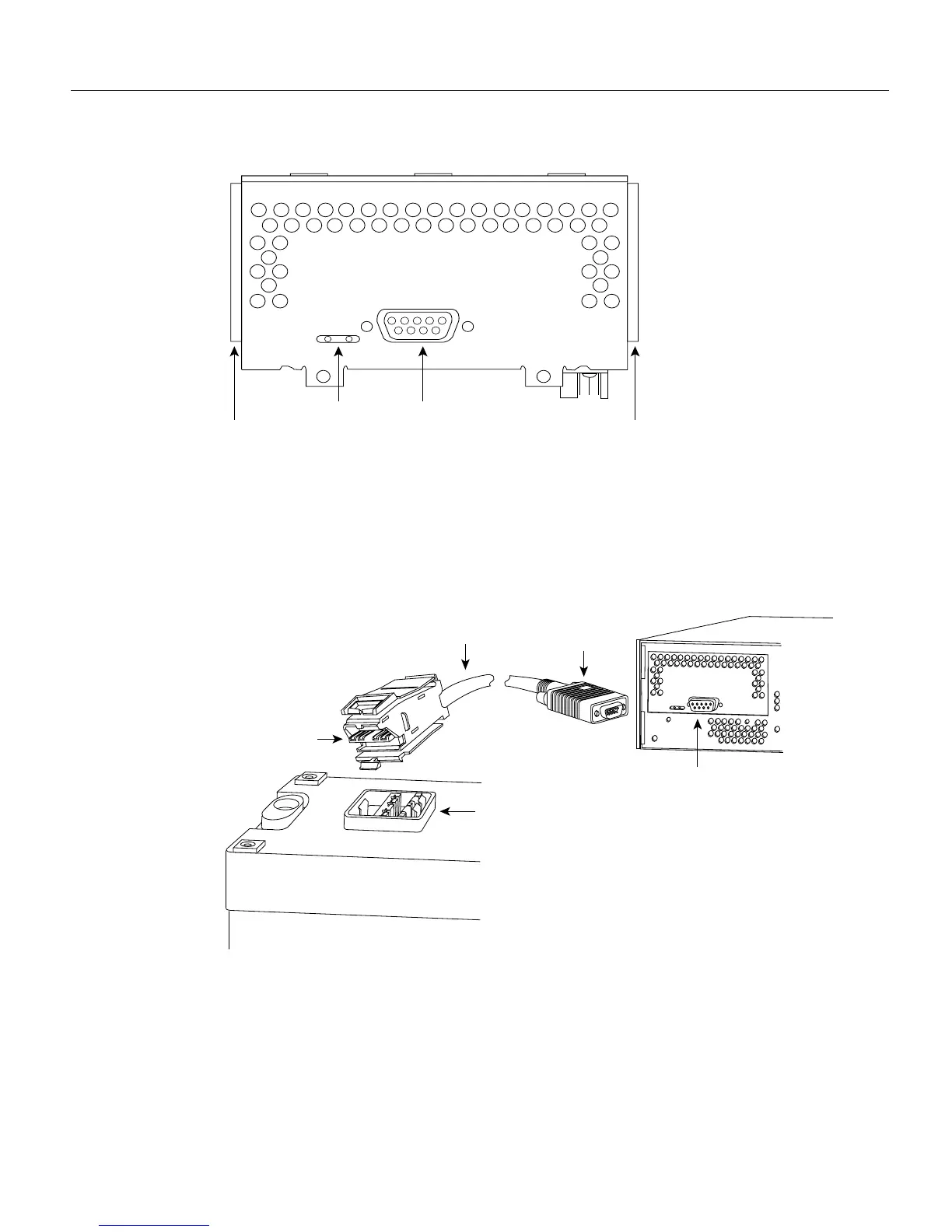

Figure 2-11 Token Ring Module Network Connector
Use a standard 9-pin Token Ring lobe cable to connect the router directly to a media attachment unit
(MAU). (See Figure 2-12.)
Figure 2-12 Token Ring Cable Connections
Token Ring portLEDs
(2 green)
H1042a
Alignment
groove
Alignment
groove
Token Ring
16MBPS IN-RING
Media attachment unit
IEEE 802.5 connector
Token Ring
lobe cable
(not included)
9-pin
D connector
Router
(rear view)
Token Ring port
H1569a
