Appendix B Installation In a Hazardous Environment
Connecting the Switch to the Power Converter
Caution Do not insert the cord into the AC outlet until you finish wiring the line, neutral, and ground connections.
Step 1 Remove the plastic cover from the input power terminals and set it aside. See Figure B-43.
Figure B-43 AC/DC Power Input Terminal Block

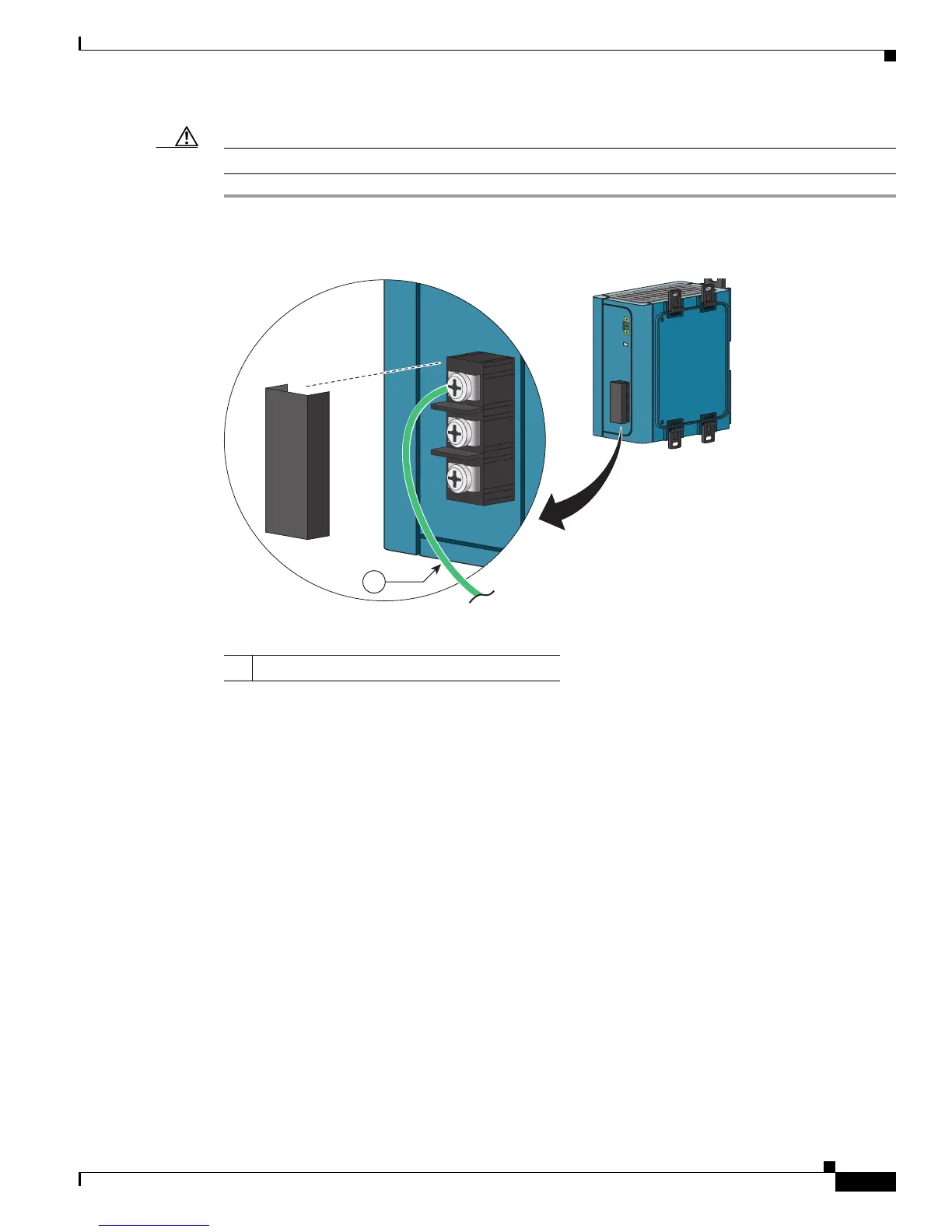

Step 2 Insert the exposed ground wire lead into the power converter ground wire connection. Make sure that
only wire with insulation extends from the connector. See
Figure B-44.
1 Ground wire
202299
1

Cisco IE-3000-8TC Specifications

General

Switching Capacity	16 Gbps
MAC Address Table Size	8000
Uplink Ports	2 x 10/100/1000Base-T or SFP (Small Form-Factor Pluggable)
Operating Temperature	-40°C to 70°C
Mounting	DIN rail
Ports	8 x Ethernet 10/100Base-TX ports
Jumbo Frame Support	Yes
