25
Switch Installation
Connecting to Power

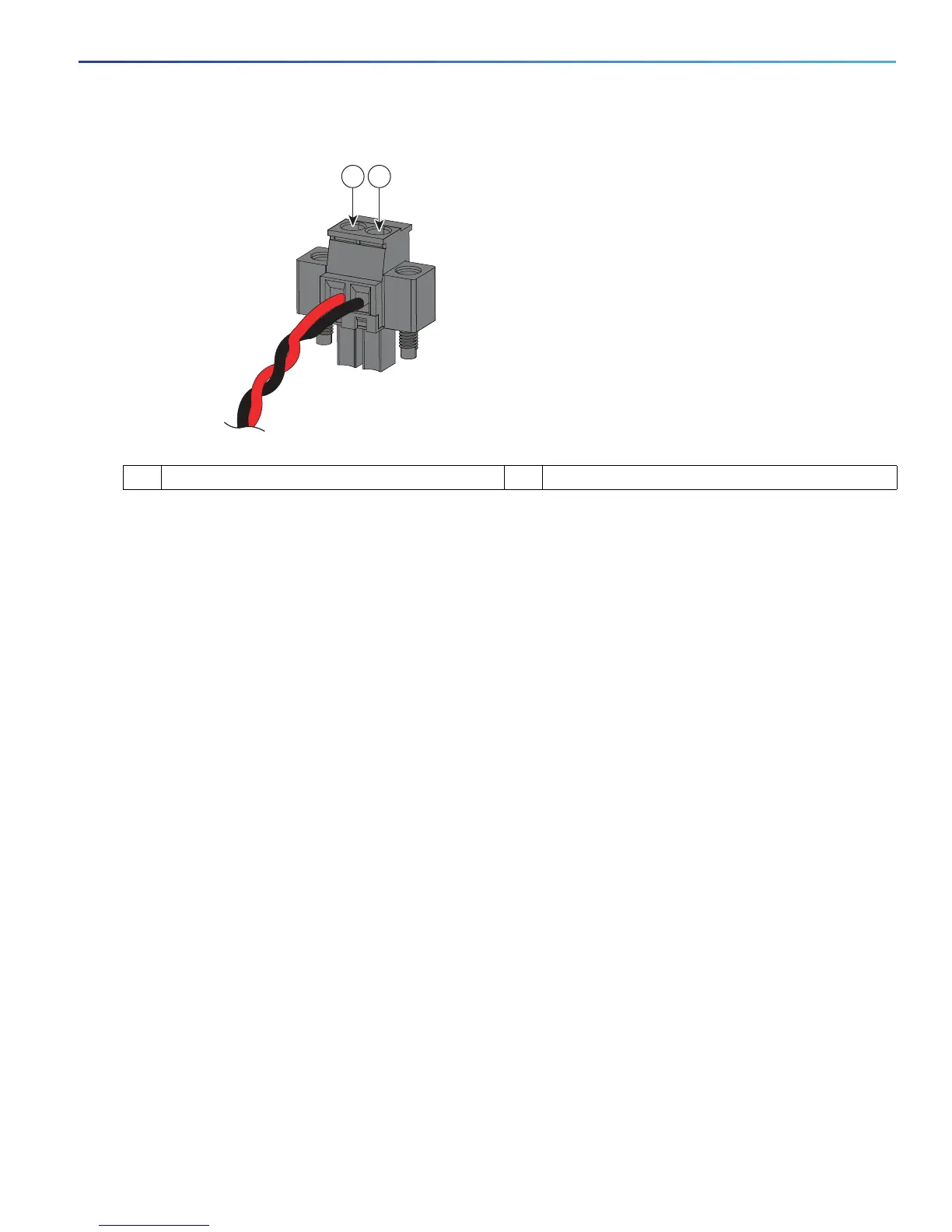

Figure 11 Inserting Wires in the Power Connector
7. Use a ratcheting torque flathead screwdriver to torque the power connector captive screws (above the installed wire
leads) to 5in-lb (0.565 Nm). See Figure 12 on page 26.
Caution: Do not over-torque the power connector’s captive screws. The torque should not exceed 5in-lb (0.565
Nm).
1 Power source positive connection 2 Power source return connection
