Cable and Connectors
Cables and Adapters
Cable Pinouts

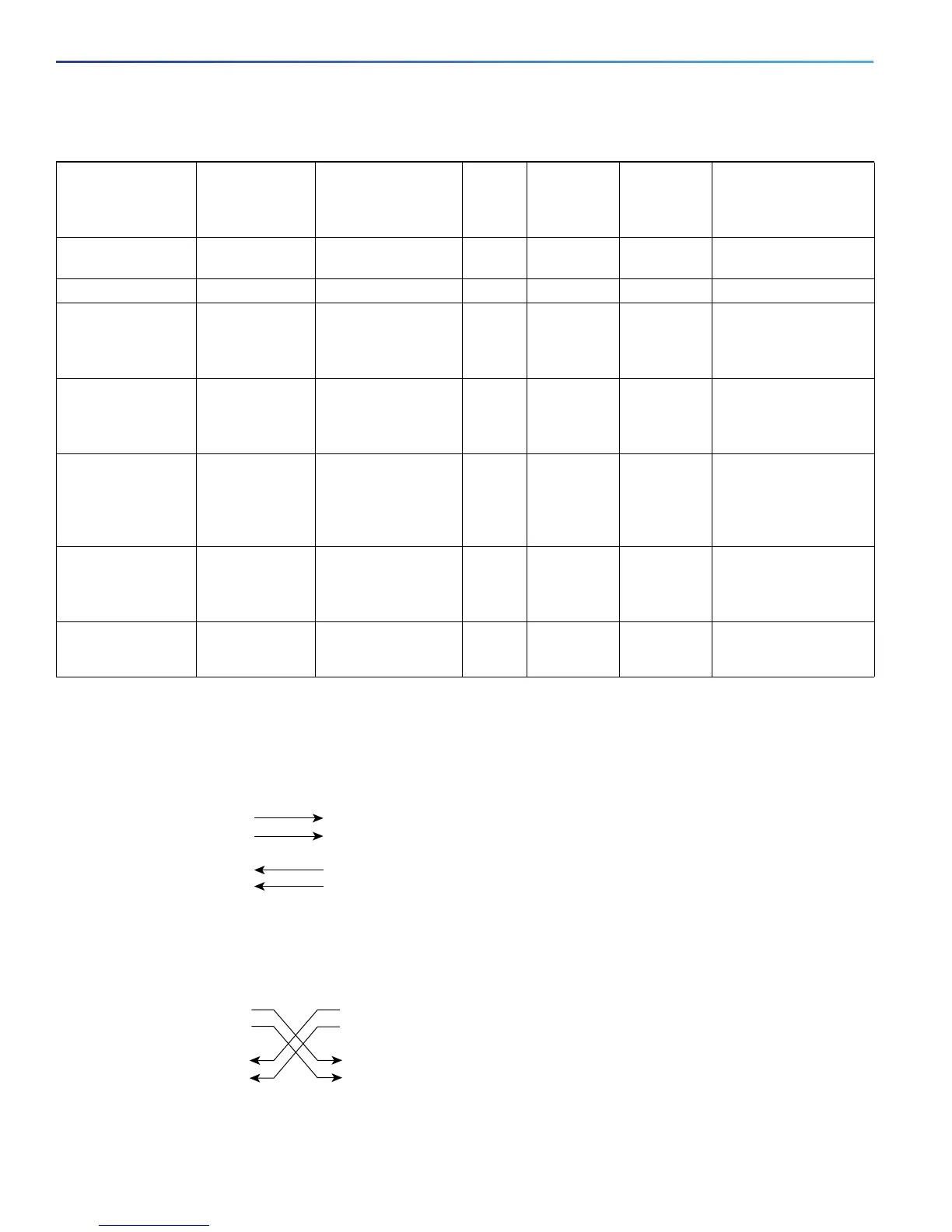

Figure 29 Two Twisted-Pair Straight-Through Cable Schematic for 10/100 Ports
Figure 30 Two Twisted-Pair Crossover Cable Schematic for 10/100 Ports
Table 8 Extended Temperature SFPs—Fiber-Optic SFP Module Port Cabling Specifications
Type of SFP
Module
Model Wavelength
(nanometers)
Fiber
Type
Core
Size/Claddi
ng Size
(micron)
Modal
Bandwidth
(MHz/km)
Cable Distance
100BASE-BX10-U GLC-FE-100BX
-U
1310 TX SMF G.652 — 6.2 miles (10 km)
100BASE-EX GLC-EX-SMD 1310 SMF G.652 — 24.9 miles (40 km)
100BASE-LX/LH SFP-GE-L 1300 MMF or
SMF
62.2
50
50
9/10
500
400
500
—
1804 feet (550 m)
1804 feet (550 m)
1804 feet (550 m)
6.2 miles (10 km)
100BASE-SX SFP-GE-S 850 MMF 62.5
62.5
50.0
50.0
160
200
400
500
722 feet (220 m)
902 feet (275 m)
1640 feet (500 m)
1804 feet (550 m)
100BASE-ZX GLC- SX-SMD 850 MMF 62.5
62.5
50.0
50.0
50.0
160
200
400
500
2000
722 feet (220 m)
902 feet (275 m)
1640 feet (500 m)
1804 feet (550 m)
3281 feet (1 km)
100BASE-ZX GLC-LH-SMD 1310 MMF
SMF
62.5
50.0
50.0
G.652
500
400
500
—
1804 feet (550 m)
1804 feet (550 m)
1804 feet (550 m)
6.2 miles (10 km)
100BASE-ZX SFP-GE-Z 1550 SMF
SMF
9/10
8
— 43.5 miles (70 km)
62 miles (100 km)
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Router or PC
3 RD+
6 RD–
1 TD+
2 TD–
H5578
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
