Cisco IE 4000 Hardware Installation Guide

1
Cisco Systems, Inc. www.cisco.com
Product Overview
The Cisco® Industrial Ethernet (IE) 4000 Series is the latest addition to our ruggedized switching platforms and provides
superior high-bandwidth switching and proven Cisco IOS® Software-based routing capabilities for industrial
environments. The IE 4000 Series delivers highly secure access and industry-leading convergence using the Cisco
Resilient Ethernet Protocol (REP) and is built to withstand extreme environments while adhering to overall IT network
design, compliance, and performance requirements.
The IE 4000 Series is ideal for industrial Ethernet applications where hardened products are required, including factory
automation, energy and process control, intelligent transportation systems (ITS), oil and gas field sites, city surveillance
programs, and mining. With improved overall performance, greater bandwidth, a richer feature set, and enhanced
hardware, the Cisco IE 4000 Series complements the current industrial Ethernet portfolio of related Cisco industrial
switches.
The Cisco IE 4000 can easily be installed in your network. Through a user-friendly web device manager, the Cisco IE
4000 provides easy out-of-the-box configuration and simplified operational manageability to deliver advanced security,
data, video, and voice services over industrial networks.

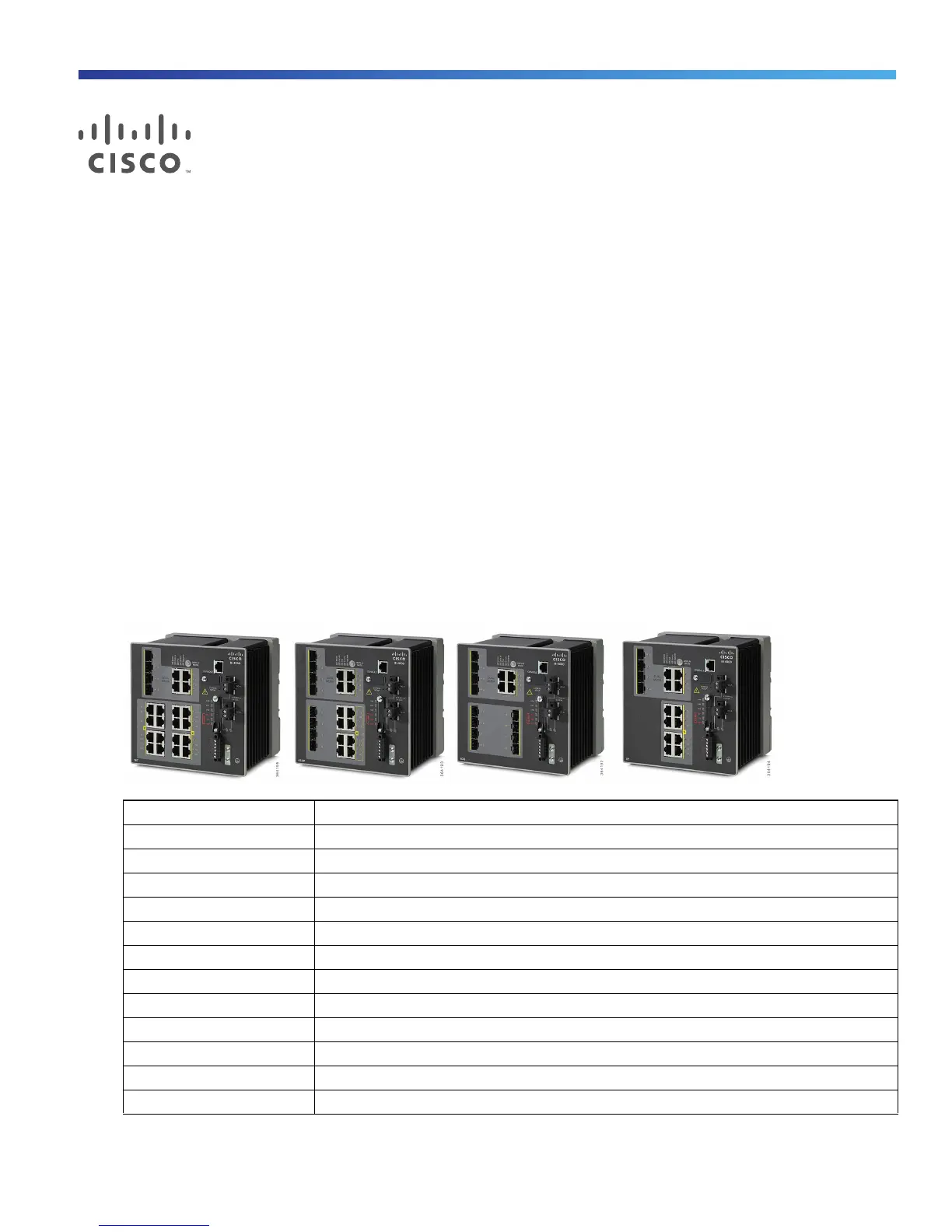

Switch Models
Model Description
IE-4000-4TC4G-E 4 FE Combo DL ports, 4 GE combo UL ports, w/FPGA
IE-4000-8T4G-E 8 FE Copper DL ports, 4 GE combo UL ports, w/FPGA
IE-4000-8S4G-E 8 FE Fiber DL ports, 4 GE combo UL ports, w/FPGA
IE-4000-4T4P4G-E 4 FE Copper DL ports + 4 FE Copper DL ports with POE, 4 GE combo UL ports, w/FPGA
IE-4000-16T4G-E 16 FE Copper DL ports, 4 GE combo UL ports, w/FPGA
IE-4000-4S8P4G-E 4 FE Fiber DL ports + 8 FE Copper DL ports with POE, 4 GE combo UL ports, w/FPGA
IE-4000-8GT4G-E 8 GE Copper DL ports, 4 GE combo UL ports, w/FPGA
IE-4000-8GS4G-E 8 GE Fiber DL ports, 4 GE combo UL ports, w/FPGA
IE-4000-4GC4GP4G-E 4 GE Combo DL ports + 4 GE Copper DL ports with POE, 4 GE combo UL ports, w/FPGA
IE-4000-16GT4G-E 16 GE Copper DL ports, 4 GE combo UL ports, w/FPGA
IE-4000-8GT8GP4G-E 8 GE Copper DL ports + 8 GE Copper DL ports with POE, 4 GE combo UL ports, w/FPGA
IE-4000-4GS8GP4G-E 4 GE Fiber DL ports + 8 GE Copper DL ports with POE, 4 GE combo UL ports, w/FPGA

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
