Cisco IE 4000 Hardware Installation Guide

63
Cisco Systems, Inc. www.cisco.com
Cable and Connectors
 Connector Specifications, page 63
 Cables and Adapters, page 65
Connector Specifications
 10/100/1000 Ports, page 63
 SFP Module Connectors, page 63
 Dual-Purpose Ports, page 64
 Alarm Port, page 65
10/100/1000 Ports
The 10/100/1000 Ethernet ports on the switches use RJ-45 connectors. Figure 2410/100 Port Pinouts, page 63 shows
the pinouts.

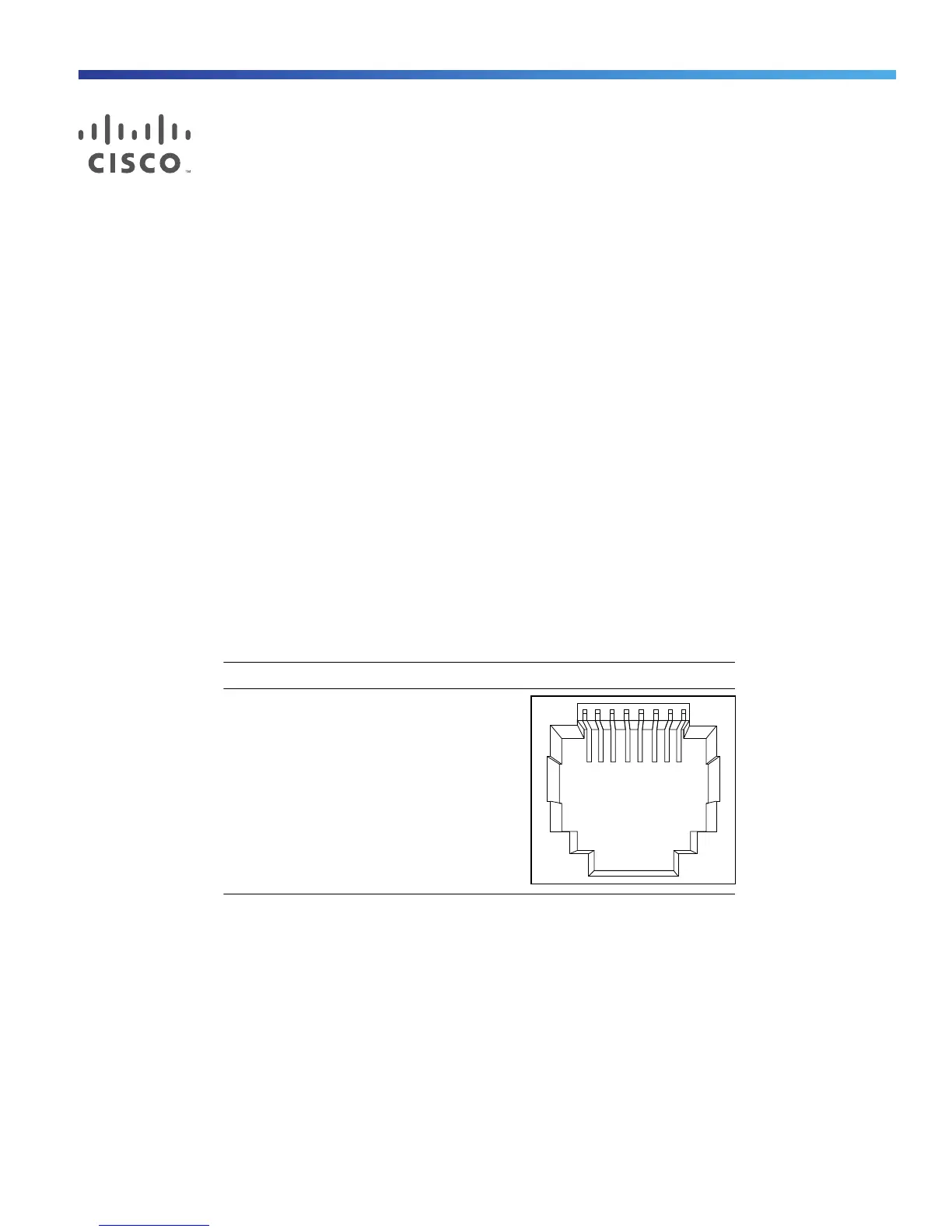

Figure 24 10/100 Port Pinouts
Note: For the three models of IE 4000 switch that support PoE, connector pins 4 and 5 supply +48 VDC and pins 7 and
8 are the DC voltage return lines.
SFP Module Connectors
Figure 25Fiber-Optic SFP Module LC Connector, page 64 shows a MT-RJ style connector that is used with the SFP
Module slots. It is a fiber-optic cable connector.
H5318
231 45678Pin Label
1
2
3
4
5
6
7
8
RD+
RD-
TD+
NC
NC
TD-
NC
NC

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
