Cisco IE 4000 Hardware Installation Guide

42
Running Express Setup
6. Power on or reset the IE4000:
Use LEDs to monitor boot progress:
— Sys blinking: bootloader
— Sysl Blank: POST
— Sys solid: exit post, IOS initializing
— Sys and alarm LEDs green: IOS init done
— ~90 – 100 seconds after power on
— EXP blinking: ready for express setup process
7. Insert paper clip into express setup button for 1-2 seconds.
When released, port Gig1/1 LED starts flashing green.
8. Connect computer to port Gig1/1.
LED continues to blink.
9. After computer has IP Address (169.254.0.2), point browser to http://169.254.0.1.
10. Leave the username blank and enter the default password, cisco.
Note The switch ignores text in the username field. The Express Setup window appears.
Troubleshooting: If the Express Setup window does not appear, make sure that any pop-up blockers or proxy
settings on your browser are disabled and that any wireless client is disabled on your computer.
11. Enter all entries in English letters and Arabic numbers.

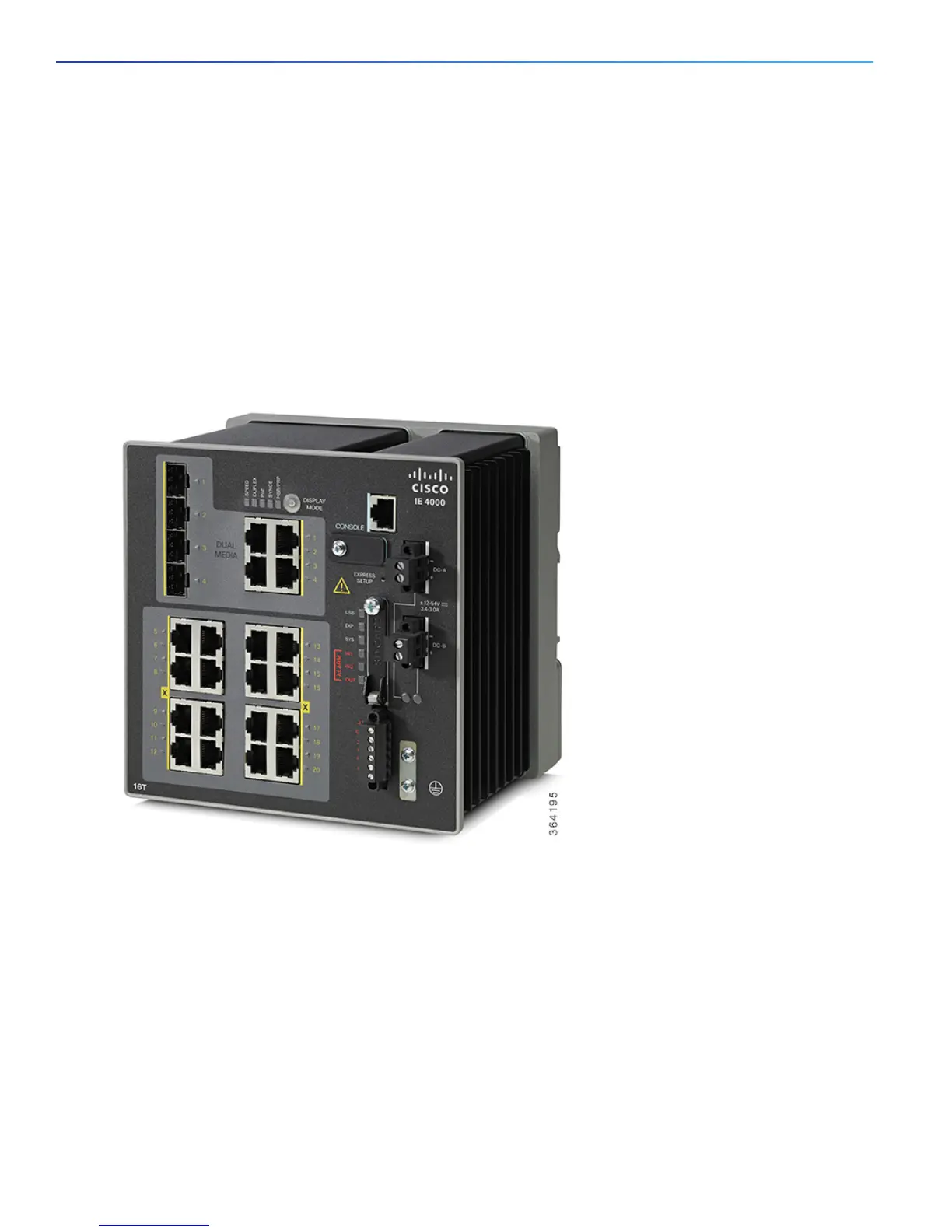

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
