Switch Installation
Connecting Destination Ports

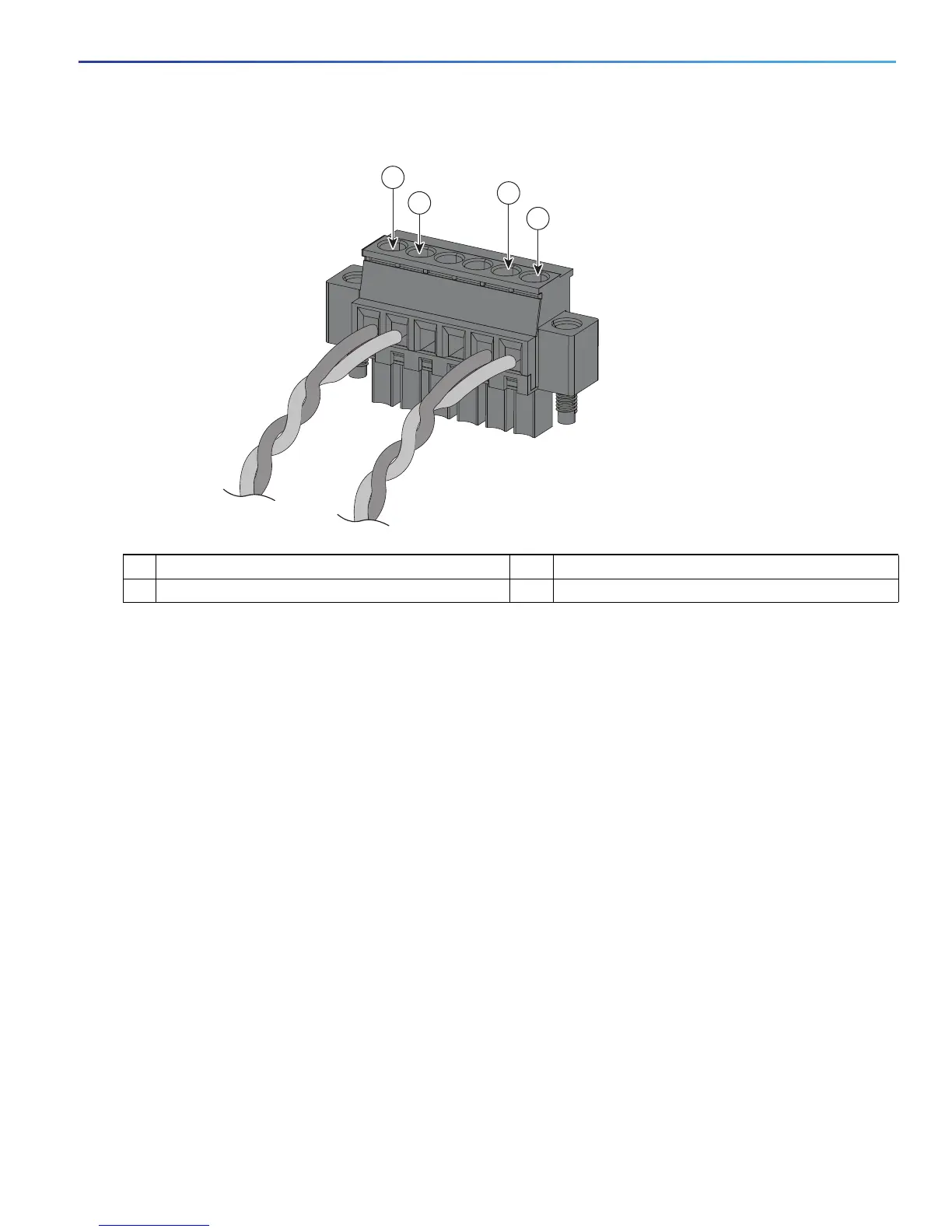

Figure 19 Completed Connections for Three External Alarm Devices on the Alarm Connector
Attaching the Alarm Connector to the Switch
Warning: Failure to securely tighten the captive screws can result in an electrical arc if the connector is accidentally
removed. Statement 397
Warning: When you connect or disconnect the power and/or alarm connector with power applied, an electrical arc
can occur. This could cause an explosion in hazardous area installations. Be sure that all power is removed from the
switch and any other circuits. Be sure that power cannot be accidentally turned on or verify that the area is
nonhazardous before proceeding. Statement 1058
To attach the alarm connector to the front panel of the switch, follow these steps:
1. Insert the alarm connector into the receptacle on the switch front panel.
2. Use a ratcheting torque flathead screwdriver to tighten the captive screws on the sides of the alarm connector.
Connecting Destination Ports
These section provide more information about connecting to the destination ports:
 Connecting to 10/100 and 10/100/1000 Ports, page 36
 Installing and Removing SFP Modules, page 36
 Connecting to SFP Modules, page 38
 Connecting to a Dual-Purpose Port, page 38
1 IN1 wired connection 3 COM wired connection
2 REF wired connection 4 NO wired connection
332047
1
2
3
4

Cisco IE 4000 Specifications

General

Product Type	Switch
Form Factor	DIN Rail Mountable
MAC Address Table Size	8000
Jumbo Frame Support	9216 bytes
Operating Temperature	-40°C to 70°C
Mean Time Between Failures (MTBF)	Over 500, 000 hours
Memory	256 MB DRAM
Mounting	DIN Rail, Wall
Certifications	EN 50121-4
Ports	8 x 10/100Base-TX Ethernet Ports
