Catalyst 4500 E-Series Switches Installation Guide
OL-13972-02
Chapter 1 Product Overview
Catalyst 4507R-E Switch
Catalyst 4507R-E Switch
The Catalyst 4507R-E switch is a 7-slot horizontal chassis supporting redundant power supplies,
redundant supervisor engines, and slots for up to six modules.
Figure 1-3 shows a front view of the
Catalyst 4507R-E switch with the chassis major features identified.

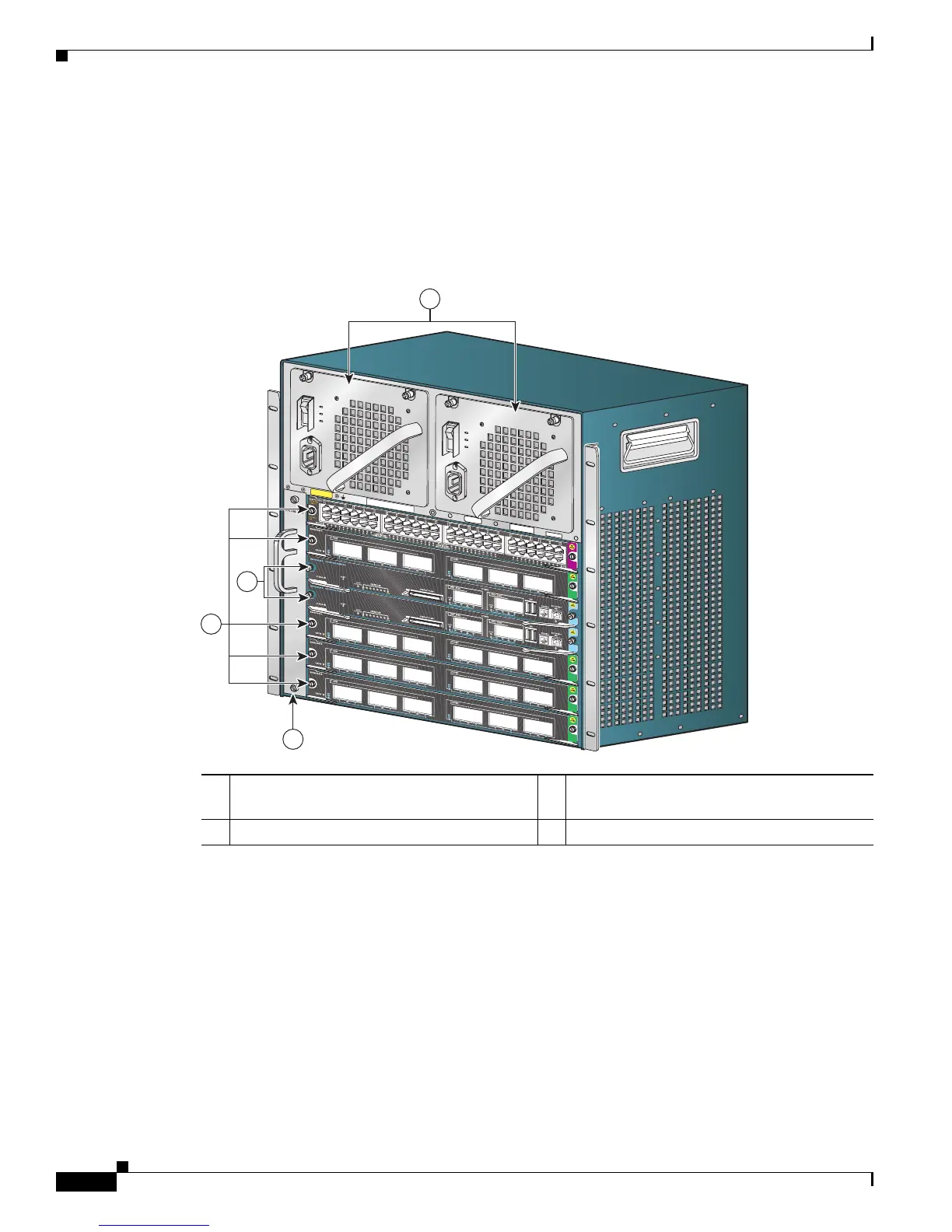

Figure 1-3 Catalyst 4507R-E Switch (Front View)
Table 1-5 describes the features of the Catalyst 4507R-E switch.
1 Fan tray 3 Supervisor engines (primary in slot 3 and
secondary in slot 4)
2 Switching modules (slots 1, 2, 5, 6, 7) 4 Power supplies
