Cisco MDS 9132T User Manual

Airflow grill8System status LED2
Rack mount mounting rails9Power supply status LED3
Linecard Expansion Module (LEM)10Fan status LED4
LEM ejector lever11USB port5
LEM locking screw12Two 10/100/1000 Mbps
Ethernet management
ports
6
Rear View

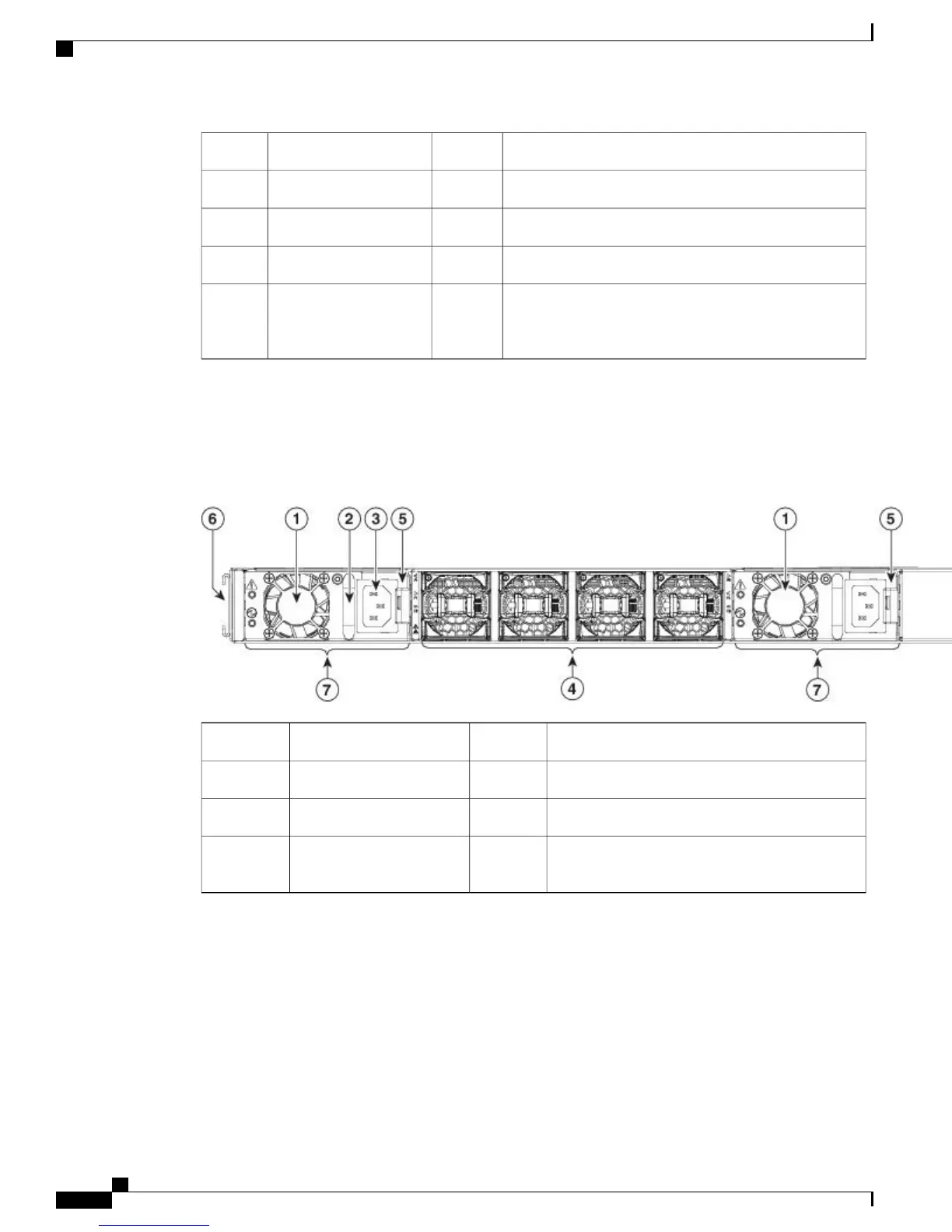

The following figure shows the rear view of the Cisco MDS 9132T Switch:
Figure 2: Rear view of the Cisco MDS 9132T Switch
PSU locking latches5Power supply unit fans1
Rack mount mounting rails6Power supply unit handle2
Power supply units (2 units)7Power receptacle3
Chassis fan modules (4
units)
4
Cisco MDS 9132T Fibre Channel Switch Hardware Installation Guide
6
Product Overview

Cisco MDS 9132T Specifications

General

Airflow	Front-to-back
Product Type	Fibre Channel Switch
Rack-mountable	Yes
Manageable	Yes
Product Model	MDS 9132T
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Power Supply	AC
Data Transfer Rate	32 Gbps
Fibre Channel Standard	FC-FS-2, FC-GS-4, FC-SW-2
Humidity	5% to 93% (non-condensing)
Ports	32 x 32Gbps Fibre Channel
Form Factor	1U
Dimensions	1.72 x 17.3 x 19.2 in
Port Speed	32 Gbps
Weight	17.6 lbs (8 kg)
