Cisco MDS 9132T User Manual

Part DescriptionQuantity
Slider brackets2
Shelf brackets2
Crossbar1
10-32 x 3/8-in. Phillips pan-head screws2
12-24 x 3/4-in. Phillips screws16
10-24 x 3/4-in. Phillips screws16
Required Equipment
You need the following equipment for this installation:
•
Number 2 Phillips screwdriver
•
Tape measure and level (to ensure shelf brackets are level)
Installing the Shelf Bracket Kit into a Two-Post Telco Rack

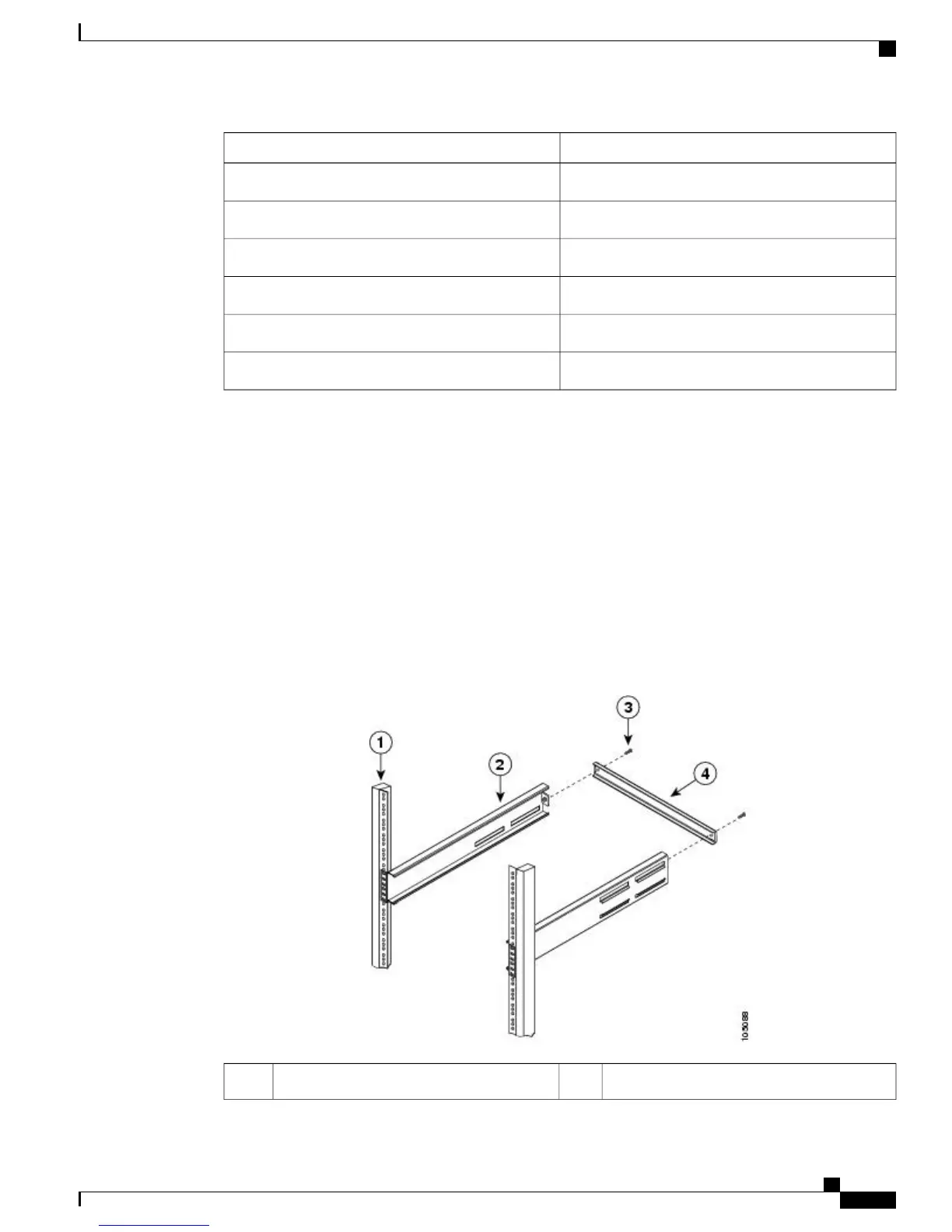

The following figure shows the installation of the shelf bracket kit into a two-post Telco rack.
Figure 10: Installing the Shelf Bracket Kit into a Telco Rack
10-32 screws3Rack-mounting post1
Cisco MDS 9132T Fibre Channel Switch Hardware Installation Guide
23
Installing the Cisco MDS 9132T Switch
Cisco MDS 9000 Family Telco and EIA Shelf Bracket

Cisco MDS 9132T Specifications
