Cisco MDS 9132T User Manual

The following figure shows the Linecard expansion blank module:

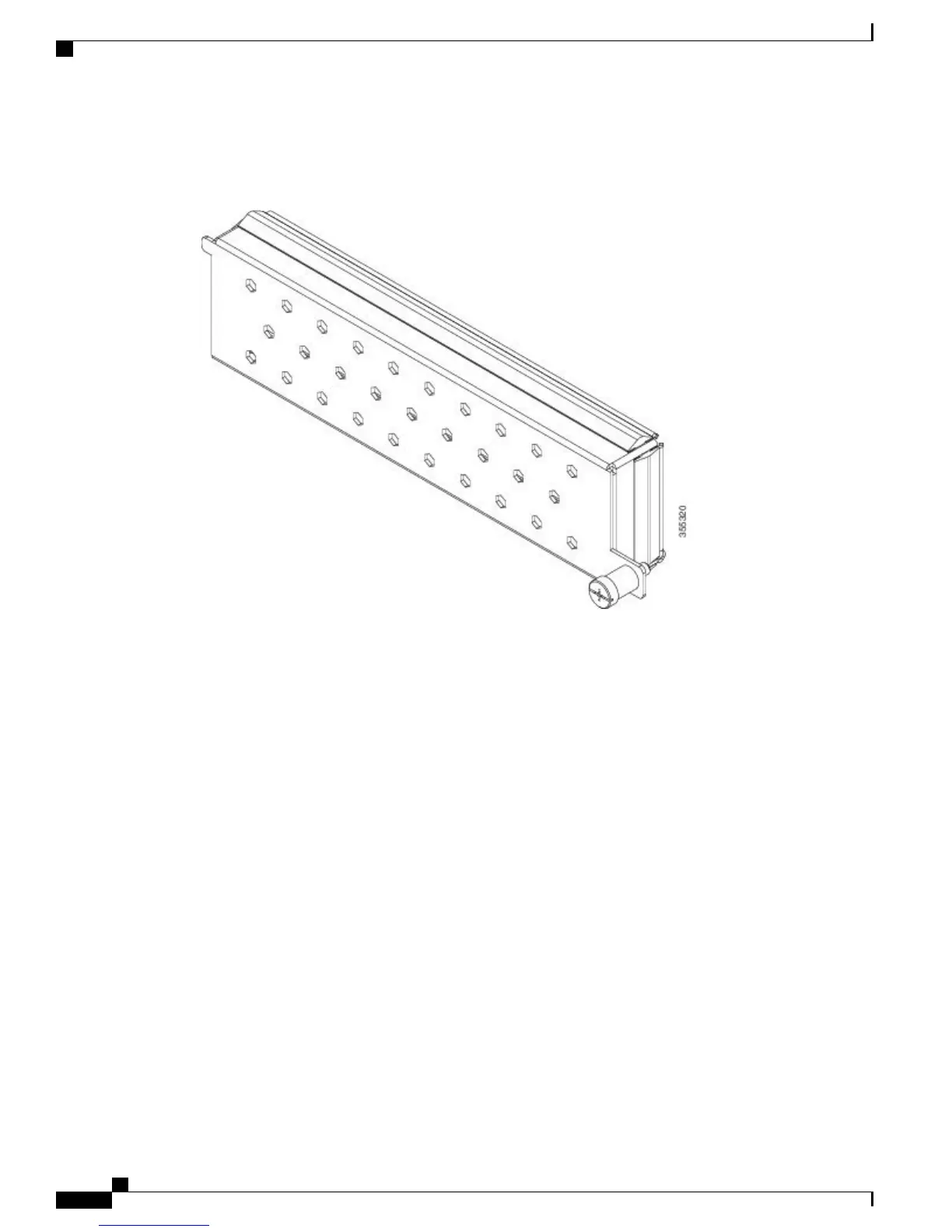

Figure 9: Linecard Expansion Blank Module
For more information on installing and removing the LEM, see the Installing and Removing the Linecard
Expansion Module chapter.
Switch LEDs
The following table describes the chassis activity LEDs for the Cisco MDS 9132T switch.
Cisco MDS 9132T Fibre Channel Switch Hardware Installation Guide
12
Product Overview
Switch LEDs

Cisco MDS 9132T Specifications

General

Airflow	Front-to-back
Product Type	Fibre Channel Switch
Rack-mountable	Yes
Manageable	Yes
Product Model	MDS 9132T
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Power Supply	AC
Data Transfer Rate	32 Gbps
Fibre Channel Standard	FC-FS-2, FC-GS-4, FC-SW-2
Humidity	5% to 93% (non-condensing)
Ports	32 x 32Gbps Fibre Channel
Form Factor	1U
Dimensions	1.72 x 17.3 x 19.2 in
Port Speed	32 Gbps
Weight	17.6 lbs (8 kg)
