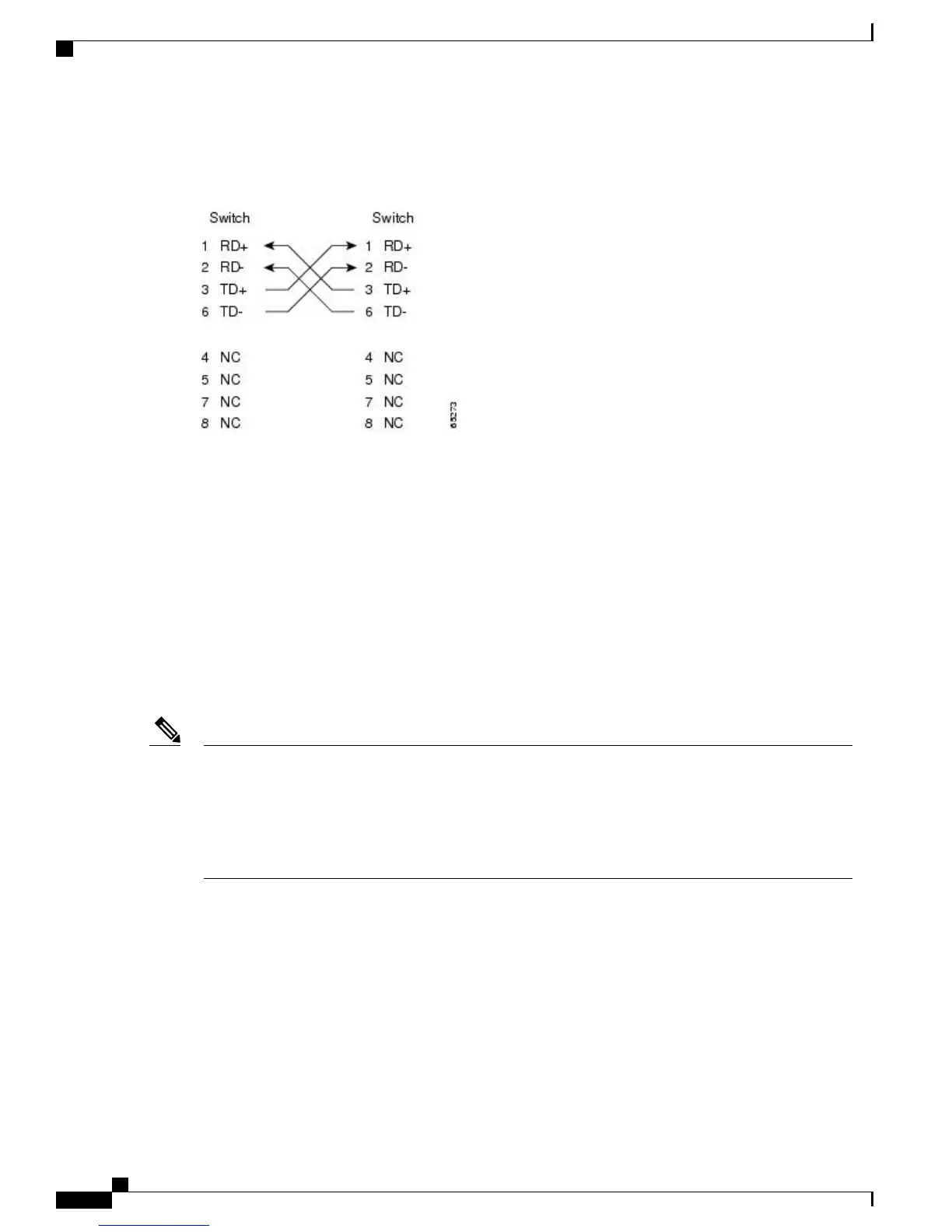

The following figure shows a schematic of the 10/100BASE-T cable.
Figure 21: Twisted-Pair 10/100BASE-T Cable Schematic
Supported Power Cords and Plugs
A separate power cord is provided for each power supply. Standard power cords or jumper power cords are
available for connection to a power distribution unit having IEC 60320 C13 outlet receptacles. The jumper
power cords, for use in cabinets, are available as an option instead of the standard power cords.
Power Cords
The standard power cords have an IEC C15 connector on the end that plugs into the switch. The optional
jumper power cords have an IEC C15 connector on the end that plugs into the switch, and an IEC C14 connector
on the end that plugs into an IEC C13 outlet receptacle.
Note
•
Only the standard power cords or jumper power cords provided with the switch are supported.
•
If you do not order the optional power cord with the system, you are responsible for selecting the
appropriate power cord for the product. Using a non-compatible power cord with this product may
result in electrical safety hazard. Orders delivered to Argentina, Brazil, and Japan must have the
appropriate power cord ordered with the system.
Cisco MDS 9132T Fibre Channel Switch Hardware Installation Guide
70
Cable and Port Specifications
Supported Power Cords and Plugs

Cisco MDS 9132T Specifications
