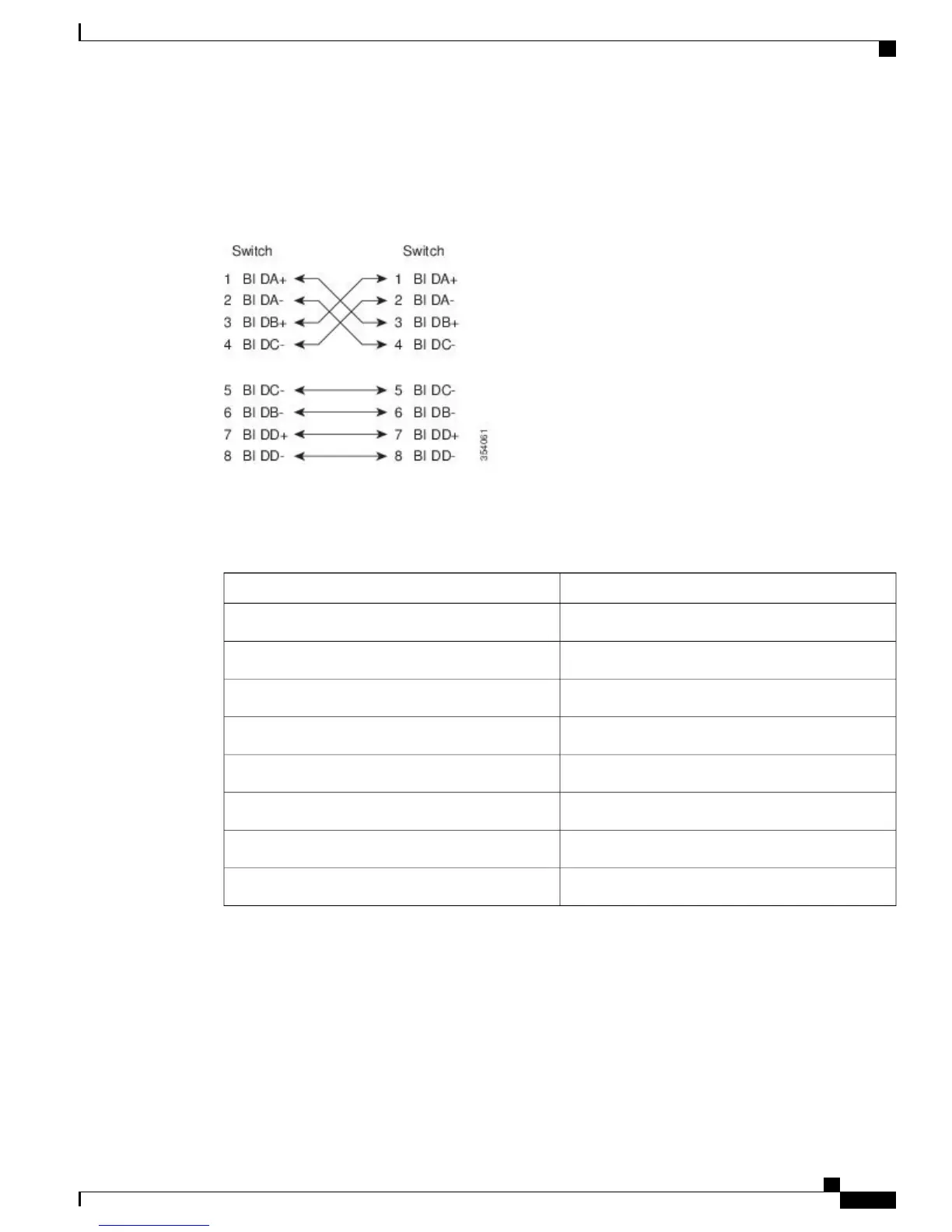

The following figure shows a schematic of the 10/100/1000BASE-T cable.
Figure 20: Twisted-Pair 10/100/1000BASE-T Cable Schematic
The following table lists the connector pinouts and signal names for a 10/100BASE-T management port (MDI)
cable.
Table 19: 10/100BASE-T Management Port Cable Pinout
SignalPin
TD+1
TD-2
RD+3
RD-4
Not used5
Not used6
Not used7
Not used8
Cisco MDS 9132T Fibre Channel Switch Hardware Installation Guide
69
Cable and Port Specifications
MGMT 10/100/1000 Ethernet Port

Cisco MDS 9132T Specifications

General

Airflow	Front-to-back
Product Type	Fibre Channel Switch
Rack-mountable	Yes
Manageable	Yes
Product Model	MDS 9132T
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Power Supply	AC
Data Transfer Rate	32 Gbps
Fibre Channel Standard	FC-FS-2, FC-GS-4, FC-SW-2
Humidity	5% to 93% (non-condensing)
Ports	32 x 32Gbps Fibre Channel
Form Factor	1U
Dimensions	1.72 x 17.3 x 19.2 in
Port Speed	32 Gbps
Weight	17.6 lbs (8 kg)
