Cisco MDS 9132T User Manual

The LEM blank module must be installed if the LEM bay is empty when operating for longer than several
minutes to provide correct airflow. If the airflow is inadequate the preset temperature thresholds will be
exceeded and the system will automatically shut down to prevent permanent damage.

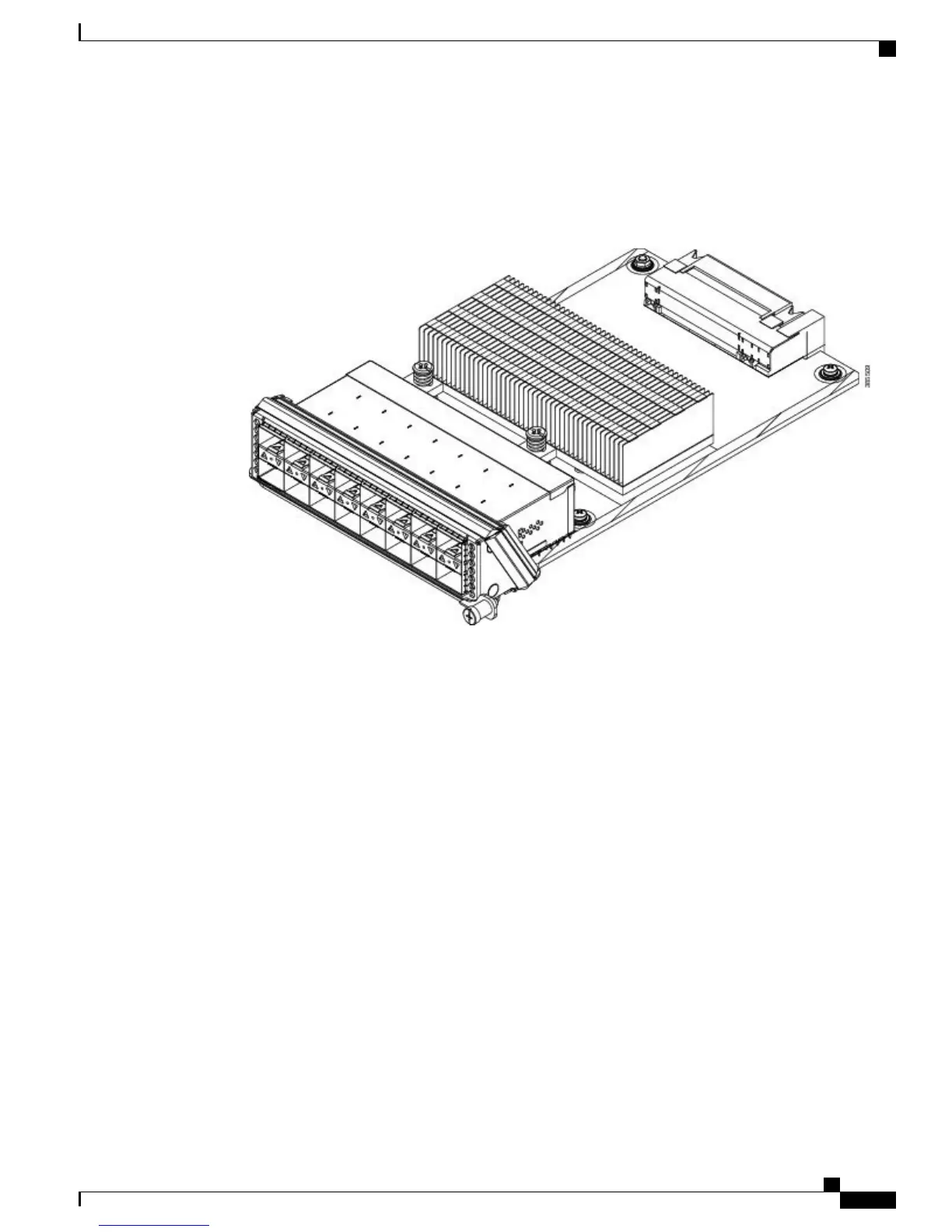

Figure 8: Cisco MDS 9132T LEM
Cisco MDS 9132T Fibre Channel Switch Hardware Installation Guide
11
Product Overview
Linecard Expansion Module

Cisco MDS 9132T Specifications

General

Airflow	Front-to-back
Product Type	Fibre Channel Switch
Rack-mountable	Yes
Manageable	Yes
Product Model	MDS 9132T
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Power Supply	AC
Data Transfer Rate	32 Gbps
Fibre Channel Standard	FC-FS-2, FC-GS-4, FC-SW-2
Humidity	5% to 93% (non-condensing)
Ports	32 x 32Gbps Fibre Channel
Form Factor	1U
Dimensions	1.72 x 17.3 x 19.2 in
Port Speed	32 Gbps
Weight	17.6 lbs (8 kg)
