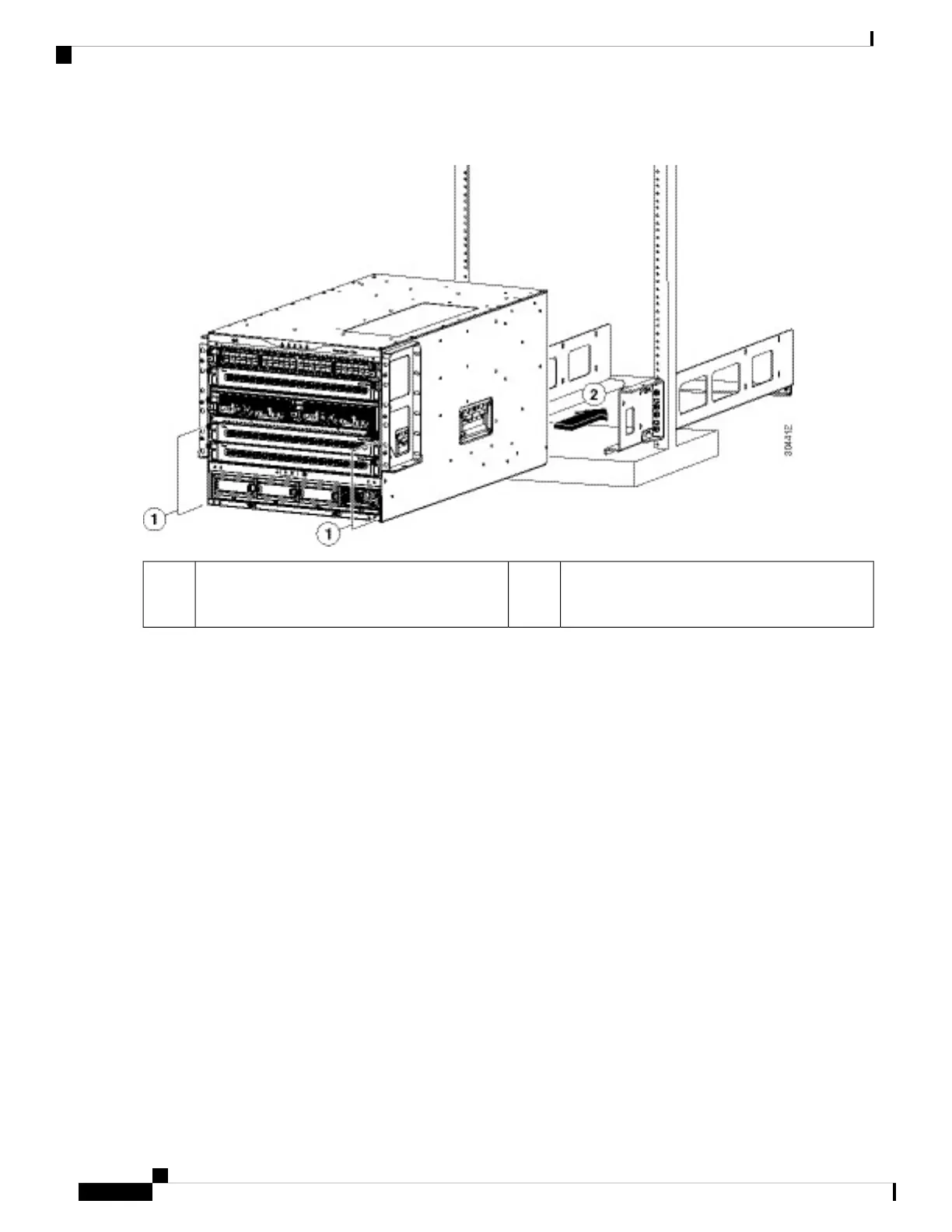

Figure 34: Moving a Chassis onto a Rack or Cabinet - Cisco MDS 9706 Chassis
Push the chassis into the rack until its mounting
bracket touches the vertical mounting rails on the
rack.
2Push the sides of the lower half of the front side
of the chassis.
1
To adjust the placement of the chassis on the bottom-support rails, you can use the handles on the sides of
the chassis.
Tip
Step 5 If the mechanical lift is raised above the height of the bottom-support rails, gently lower it to the level of the rails or
no more than 1/4 inch (0.6 cm) below the rails.
This action helps to prevent the bottom of the chassis from getting caught on the bottom expansion edges of the
bottom-support rails.
Step 6 Push the chassis all the way onto the rack so that the vertical mounting brackets on the chassis come in contact with
the vertical mounting rails on the rack.
Step 7 Use seven M6 x 19 mm or 24 x 3/4-inch screws to attach each of the two vertical mounting brackets on the chassis to
the two vertical mounting rails on the rack (total of 14 screws). See the following figure.
Cisco MDS 9700 Series Switches Hardware Installation Guide
88
Installing the Cisco MDS 9700 Series Switches
Installing the Cisco MDS 9706 Chassis in a Two-Post Rack
