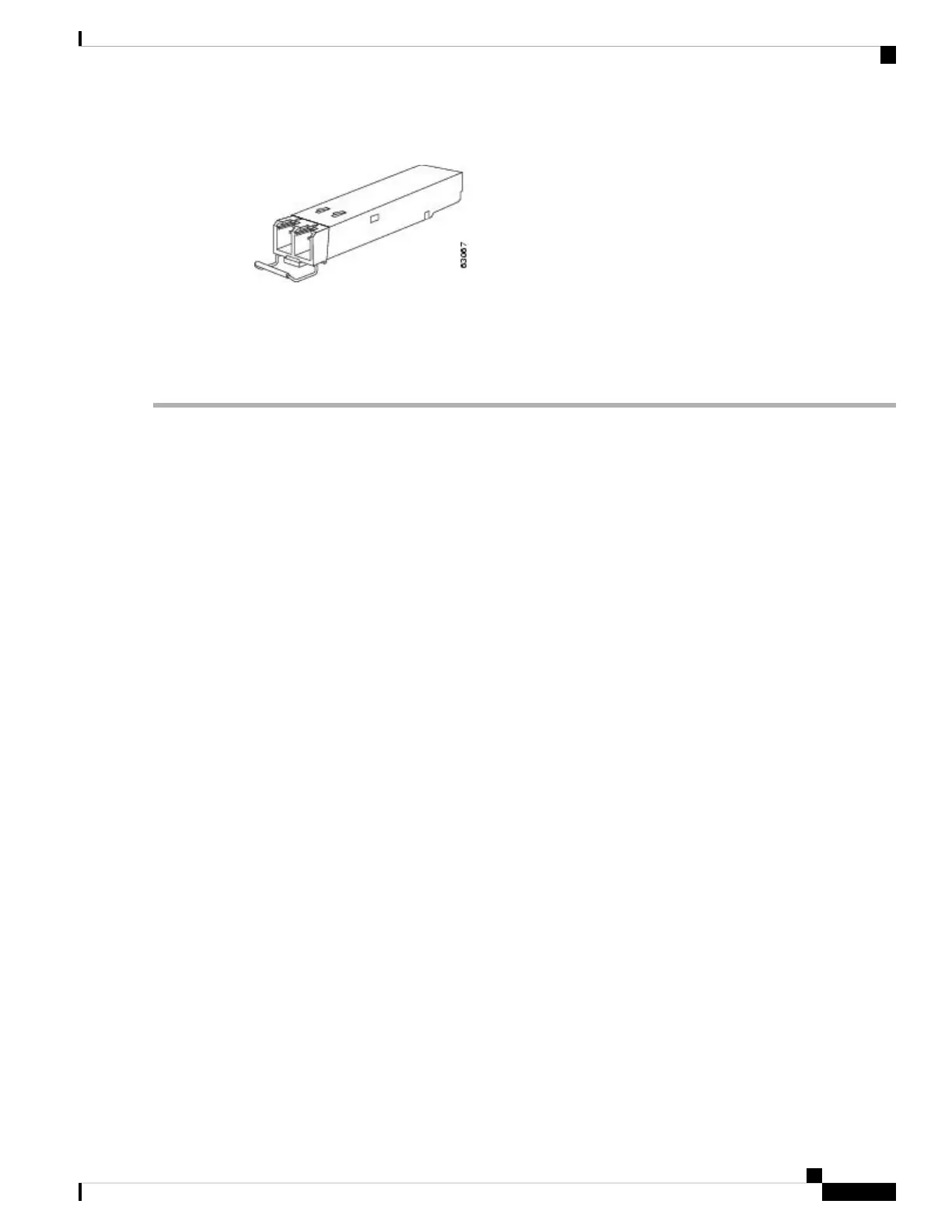

Figure 41: SFP+ Transceiver with Bale-Clasp Latch
Removing an SFP+ or QSFP+ Transceiver
To remove an SFP+ or QSFP+ transceiver, follow these steps:
Step 1 Attach an ESD-preventive wrist strap and follow its instructions for use.
Step 2 If a cable is installed in the transceiver:
a. Record the cable and port connections for later reference.
b. Press the release latch on the cable, grasp the connector near the connection point, and gently pull the connector from
the transceiver.
c. Insert a dust plug into the cable end of the transceiver.
If the transceiver does not remove easily in the next step, push the transceiver all the way back in and then
ensure that the latch is in the correct position before continuing.
Caution
Step 3 Remove the transceiver from the port:
a. If the transceiver has a Mylar tab latch, gently pull the tab straight out (do not twist), and then pull the transceiver
out of the port.
b. If the transceiver has a bale clasp latch, open the clasp by pressing it downwards, and then pull the transceiver out
of the port.
If you have difficulty removing a bale clasp SFP+ or QSFP+ transceiver, you should reseat the SFP+ or
QSFP+ by returning the bale clasp in the up position. Then press the SFP+ or QSFP+ inward and upward
into the cage. Next, lower the bale clasp and pull the SFP+ or QSFP+ straight out with a slight upward lifting
force (see the following image). Be careful not to damage the port cage during this process.
Note
Cisco MDS 9700 Series Switches Hardware Installation Guide
109
Connecting the Cisco MDS 9700 Series Switches
Removing an SFP+ or QSFP+ Transceiver
