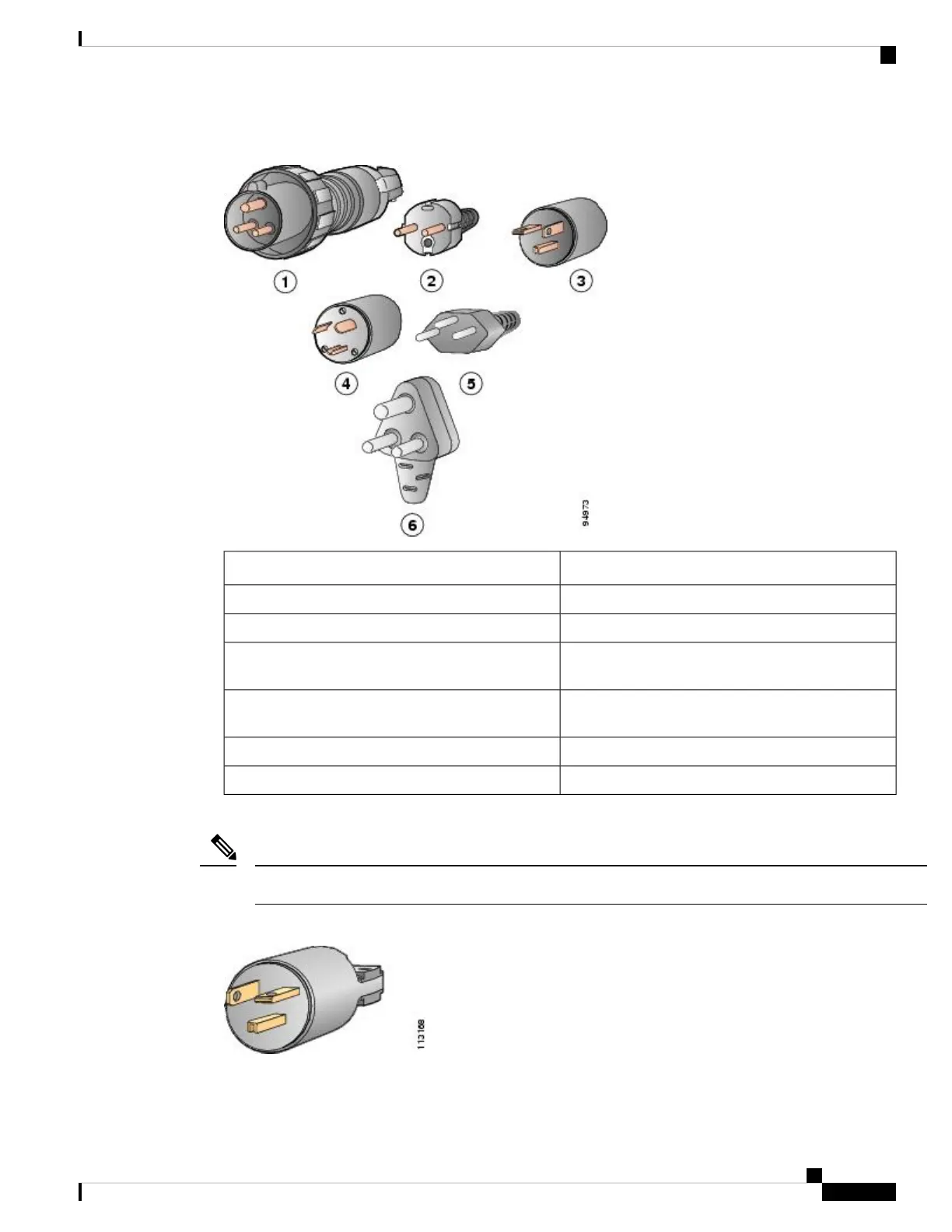

Figure 56: 3000-W AC Power Supply Plugs
DescriptionLegend
International ( 3000 W) IEC 309 (20 A)1
Europe (3000 W) CEE 7/7 (16 A)2
North America (non-locking) -3000W NEMA 6-20
plug (20 A)
3
North America (locking) (3000 W) NEMA L6-20
plug (20 A)
4
Switzerland (3000 W) 23 G SEV 1011 (16 A)5
South Africa (3000 W) EL 208, SABS 164-1 (16 A)6
The following figure shows an additional plug that is supported for the 3000 W power supply using 110 VAC.
Using the plug displayed in the following figure at 110 VAC results in 1450 W available to the system.
Note
Figure 57: Additional Power Supply Plug Supported for 3000 W 110 VAC Only
Cisco MDS 9700 Series Switches Hardware Installation Guide
201
Cable and Port Specifications
Supported Plugs for 3000 W AC Power Supplies

Cisco MDS 9700 Series Specifications
