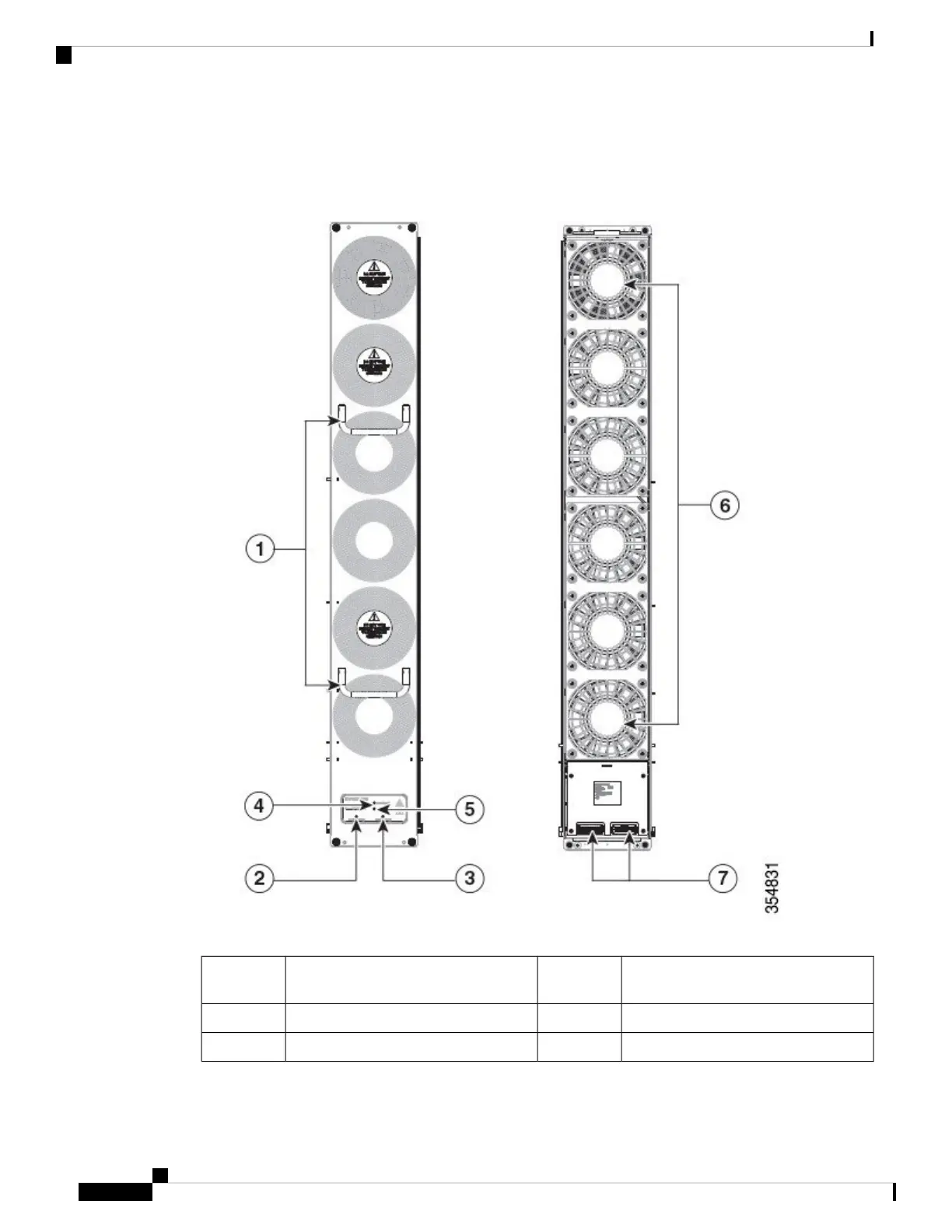

Figure
19:
MDS
9718
Fan
Modules
External
and
Internal
View
Right
crossbar
fabric
switching
module
status
LED
5
Fan
handles
1
Fans
(6)
6
Fan
module
status
LED
2
Fan
module
connectors
7
Fan
module
locator
LED
3
Cisco
MDS
9700
Series
Switches
Hardware
Installation
Guide
54
Product
Overview
Cisco
MDS
9718
Director
Fan
Modules
67
69
Table of Contents
Table of Contents
2
Preface
11
Audience
11
Document Conventions
11
Related Documentation
12
Communications, Services, and Additional Information
12
New and Changed Information
15
Product Overview
19
Cisco MDS 9718 Director
19
Cisco MDS 9718 Director Features
20
Cisco MDS 9710 Director
21
Cisco MDS 9710 Director Features
22
Cisco MDS 9706 Director
22
Cisco MDS 9706 Director Features
23
Chassis Description
24
Cisco MDS 9718 Director Chassis
24
Cisco MDS 9710 Director Chassis
29
Cisco MDS 9706 Director Chassis
32
System Leds
35
Supervisor Modules
35
Cisco MDS 9700 Series Supervisor-4 Module
35
Cisco MDS 9700 Series Supervisor-1E Module
39
Cisco MDS 9700 Series Supervisor-1 Module
42
Crossbar Fabric Switching Modules
46
Cisco MDS 9718 Director Crossbar Fabric Switching Modules
46
Cisco MDS 9710 Director Crossbar Fabric Switching Modules
48
Cisco MDS 9706 Director Crossbar Fabric Switching Modules
51
Fiber Channel Switching Modules
54
Cisco MDS 48-Port 64-Gbps Fiber Channel Switching Module
54
Cisco MDS 48-Port 32-Gbps Fiber Channel Switching Module
57
Cisco MDS 48-Port 16-Gbps Fiber Channel Switching Module
58
SAN Extension Modules
60
Cisco MDS 24/10 Port SAN Extension Module
60
Fiber Channel over Ethernet Switching Modules
62
Cisco MDS 24-Port 40-Gbps Fiber Channel over Ethernet Module
63
Cisco MDS 48-Port 10-Gbps Fiber Channel over Ethernet Module
64
Fan Modules
66
Cisco MDS 9718 Director Fan Modules
67
Cisco MDS 9710 Director Fan Modules
69
Cisco MDS 9706 Director Fan Modules
70
Power Supplies
70
Supported Transceivers
73
Fiber Channel SFP+ Transceivers
73
Preparing the Site
75
Humidity Requirements
75
Altitude Requirements
75
Dust and Particulate Requirements
76
Minimizing Electromagnetic and Radio Frequency Interference
76
Shock and Vibration Requirements
77
Grounding Requirements
77
Planning for Power Requirements
77
Power Modes Overview
78
Rack and Cabinet Requirements
80
General Requirements for Open Four-Post Racks
80
General Rack and Cabinet Requirements for Cisco MDS 9700 Series Directors
80
Rack and Cabinet Requirements for the Cisco MDS 9718 Chassis
81
Rack and Cabinet Requirements for the Cisco MDS 9710 Chassis
81
Rack and Cabinet Requirements for the Cisco MDS 9706 Chassis
81
Clearance Requirements for Cisco MDS 9700 Series Directors
82
Rack-Mounting Guidelines
84
Before Installing the Rack-Mount Support Brackets
84
Installing and Removing the Brackets
85
Installing the Cisco MDS 9700 Series Shelf Bracket Kit into a Rack
85
Installing the Switch on the Brackets
86
Installing the Switch on the Rack-Mount Support Brackets
86
Installing the Switch on the Shelf Brackets
87
Removing the Shelf Bracket Kit
88
Installing the Cisco MDS 9700 Series Switches
89
Preparing for Installation
89
Unpacking and Inspecting the Switch
90
Required Equipments
91
Installation Guidelines
92
Attaching Bottom-Support Rails to a Two-Post Rack
93
Attaching Bottom-Support Rails to a Four-Post Rack
94
Installing the Cisco MDS 9706 Chassis in a Two-Post Rack
99
Installing the Cisco MDS 9710 and MDS 9718 Series Switch on a Four-Post Rack or Cabinet
104
Installing the Cisco MDS 9700 Series Switch on a Four-Post Rack or Cabinet
106
System Grounding
113
Proper Grounding Practices
113
Preventing Electrostatic Discharge Damage
114
Establishing the System Ground
115
Required Tools and Equipment
116
Connecting the Cisco MDS 9700 Series Switches
119
Connection Guidelines
119
Preparing for Network Connections
120
Connecting to the Console Port
120
Connecting to the MGMT 10/100/1000 Ethernet Port
121
Connecting to a Fibre Channel or Fibre Channel over Ethernet (Fcoe) Port
121
Removing and Installing SFP+ and QSFP+ Transceivers
122
Removing an SFP+ or QSFP+ Transceiver
123
Installing an SFP+ Transceiver
124
Removing and Installing Cables into SFP+ or QSFP+ Transceivers
125
Removing a Cable from an SFP+ or QSFP+ Transceiver
125
Installing a Cable into an SFP+ or QSFP+ Transceiver
125
Maintaining SFP+ and QSFP+ Transceivers and Fiber-Optic Cables
126
Installing, Removing, and Verifying Field Replaceable Units
127
Installing a Supervisor Module
127
Removing a Supervisor Module
129
Nondisruptive Migration for Supervisor Modules
131
Nondisruptive Migration for Dual Supervisor Modules
131
Requirements
132
Components Used
132
Guidelines and Limitations
132
Prerequisites
134
Performing a Nondisruptive Migration
136
Switch with Only Active Supervisor Module
145
Verification
152
Troubleshooting
157
Migration Clean up
163
Disruptive Migration for Supervisor Modules
164
Installing a Switching Module
168
Removing a Switching Module
169
Verifying Installation of the Supervisor and Switching Modules
169
Crossbar Fabric Switching Modules
170
Installing a Crossbar Fabric Switching Module
170
Removing a Crossbar Fabric Switching Module
175
Modules
176
Requirements
176
Components Used
176
Nondisruptive Migration from Crossbar Fabric-1 Switching Modules to Crossbar Fabric-3 Switching Modules
176
Prerequisites
177
Performing a Nondisruptive Migration from Crossbar Fabric-1 Switching Modules to Crossbar Fabric-3 Switching Modules
178
Verification
181
Recovery Procedure
182
Troubleshooting
182
Power Supply in a Switch Chassis
182
Installing an AC Power Supply
183
Connecting an AC Power Supply to an AC Power Source
183
Removing an AC Power Supply
185
Installing a DC Power Supply
185
Connecting a DC Power Supply Directly to DC Power Sources
186
Removing a DC Power Supply
188
Installing and Removing Fan Modules
189
Installing a Fan Module
189
Removing a Fan Module
191
Powering up the Switch and Verifying the Component Installation
192
Technical Specifications
195
Switch Specifications
195
Switch Specifications for Cisco MDS 9706 Director
195
Switch Specifications for Cisco MDS 9710 Director
196
Switch Specifications for Cisco MDS 9718 Director
196
Module Specifications
197
Supervisor-4 Module Specifications
197
Supervisor-1E Module Specifications
197
Supervisor-1 Module Specifications
198
Crossbar Fabric Switching Module Specifications
198
40-Gigabit Fcoe Switching Module Specifications
199
10-Gigabit Fcoe Switching Module Specifications
200
48-Port 64-Gbps FC Switching Module Specifications
200
48-Port 32-Gbps FC Switching Module Specifications
201
48-Port 16-Gbps FC Switching Module Specifications
201
Power Specifications
202
Power Supply Specifications
202
Power Supply Fuse Information
203
Component Power Requirements and Heat Dissipation
203
Requirements and Heat Dissipation for 3000 W AC Power Supplies for 64 Gbps Fibre Channel
205
Requirements and Heat Dissipation for 3000 W AC Power Supplies for 32 Gbps Fibre Channel
205
AC Power Consumption for the Cisco MDS 9706 Director
206
AC Power Consumption for the Cisco MDS 9710 Director
207
AC Power Consumption for the Cisco MDS 9718 Director
207
AC Power Supply Requirements for Grid Redundancy of Cisco MDS 9706 Director
208
AC Power Supply Requirements for Grid Redundancy of Cisco MDS 9710 Director
208
AC Power Supply Requirements for Grid Redundancy of Cisco MDS 9718 Director
209
SFP+ Transceiver Specifications
210
Cable and Port Specifications
211
Cables and Adapters Provided
211
Console Port
211
Console Port Pinouts
211
Connecting the Console Port to a Computer Using the DB-25 Adapter
212
MGMT 10/100/1000 Ethernet Port
212
Supported Power Cords and Plugs
214
Power Cords
214
Supported Plugs for 3000 W AC Power Supplies
214
Power Supply AC Power Cords
216
Site Planning and Maintenance Records
219
Contacting Customer Service
219
Finding the Chassis Serial Number
219
Site Preparation Checklist
220
Accessory Kit Contents
221
