Cisco NCS 560-4

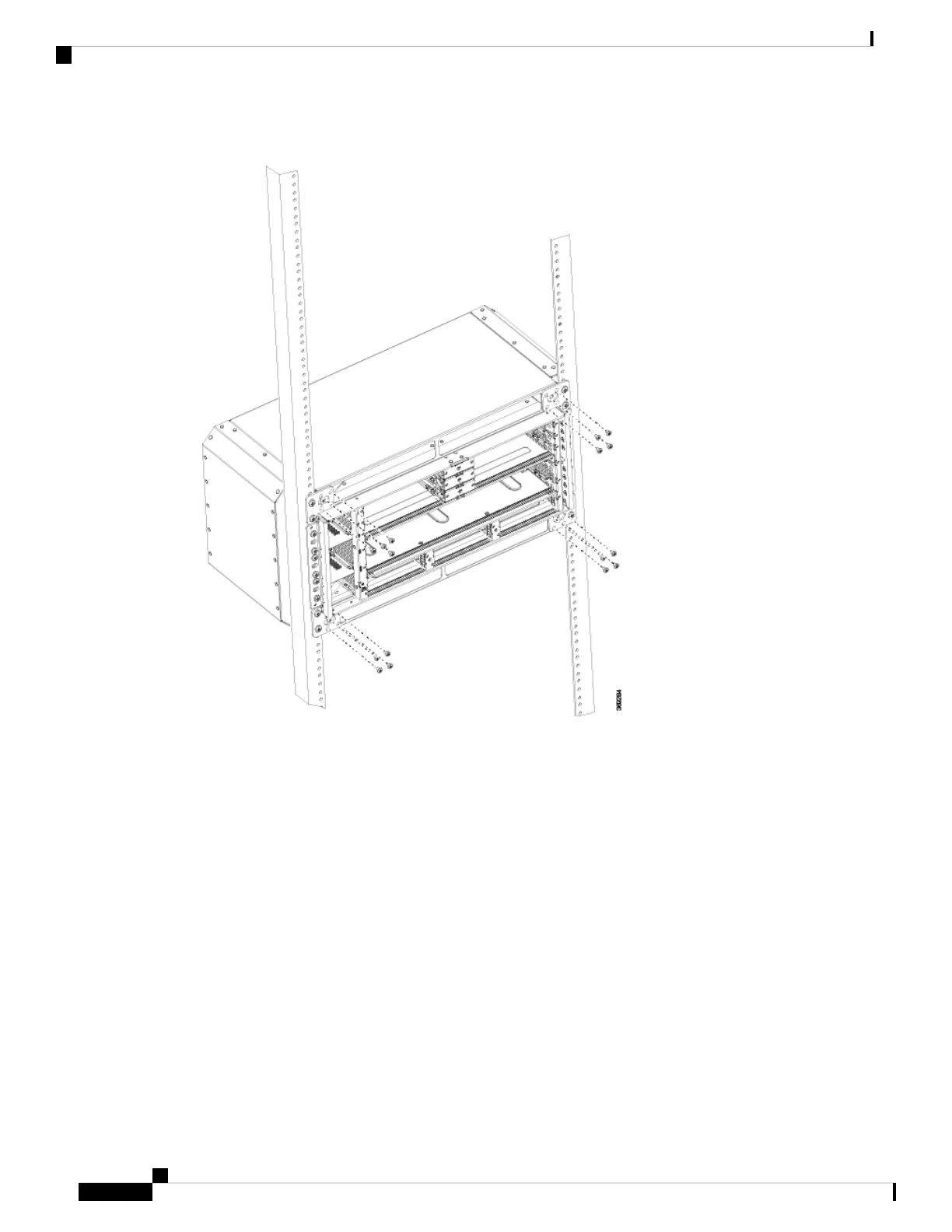

Figure 24: Installing the Plenum Around the Router
Ensure that the rack post flange dimensions are maintaned as shown in the figure below.
Cisco NCS 560-4 Router Hardware Installation Guide
54
Installing the Cisco NCS 560-4 Router
Installing the Plenum on the Rack When Router is Installed on the Rack
