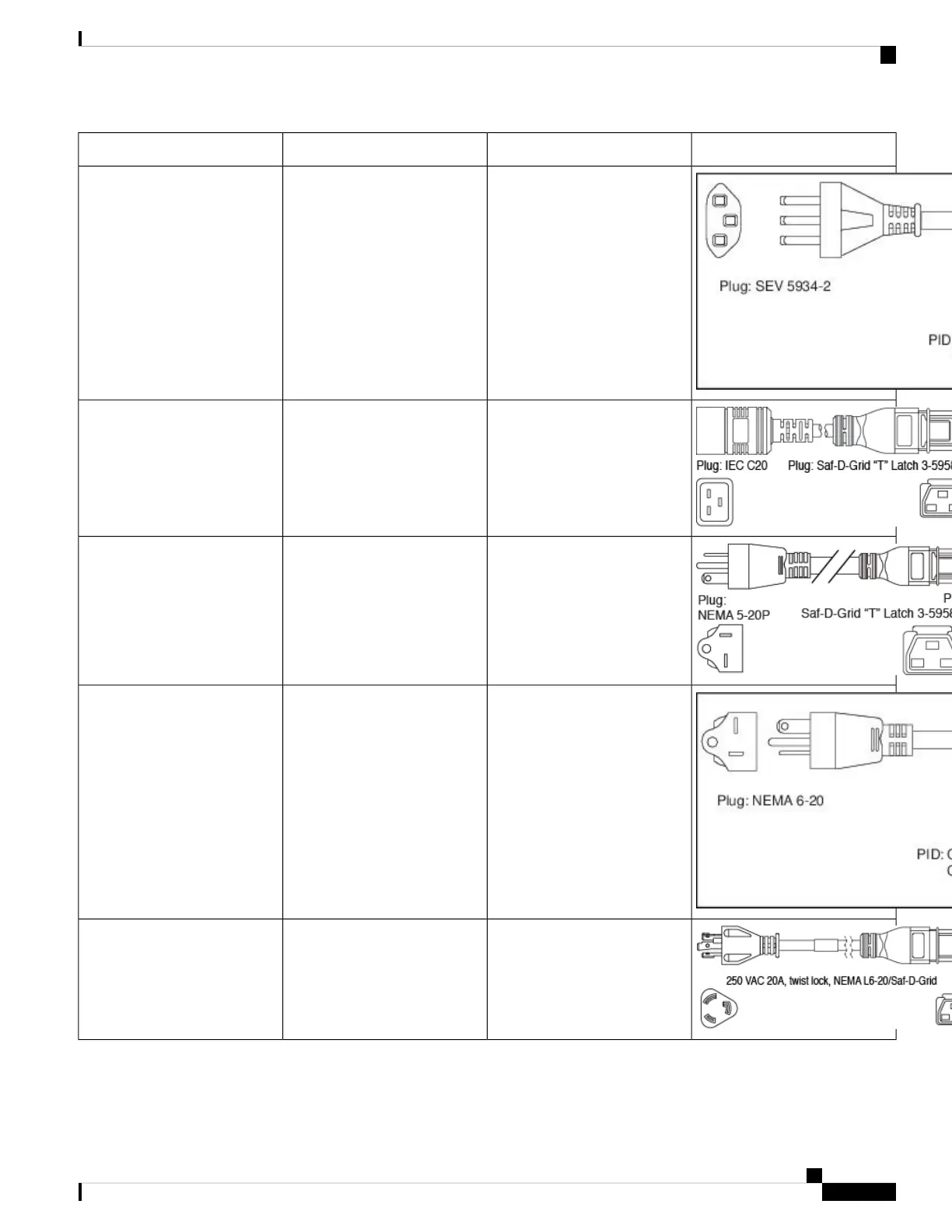

Power Cord IllustrationCord Set RatingPower Cord Part NumberLocale

16 A, 250 VACCAB-AC-16A-SG-SWSwitzerland

250 VAC 20 ACAB-AC-20A-SG-C20North America

16 A, 250 VACCAB-AC-20A-SG-USNorth America

250 VAC 20 ACAB-AC-20A-SG-US2North America (non locking)

200-240 VAC operation

250 VAC 20 ACAB-AC-20A-SG-US3North America

Cisco Nexus 9508 NX-OS Mode Switch Hardware Installation Guide

123

System Specifications

Table of Contents3
Preface7
Audience7
Documentation Conventions7
Related Documentation for Cisco Nexus 9000 Series NX-OS Software8
Documentation Feedback10
Obtaining Documentation and Submitting a Service Request10
Overview11
Preparing the Site19
Temperature Requirements19
Humidity Requirements19
Altitude Requirements19
Dust and Particulate Requirements20
Minimizing Electromagnetic and Radio Frequency Interference20
Shock and Vibration Requirements21
Grounding Requirements21
Planning for Power Requirements21
Rack and Cabinet Requirements28
Clearance Requirements29
Installing a Chassis31
Installing a Rack or Cabinet31
Inspecting the New Switch32
Step 132
Installing the Bottom-Support Rails33
Installing a Chassis in a Rack or Cabinet36
Grounding the Chassis41
Starting up the Switch42
Connecting a 3-Kw AC Power Supply to an AC Power Source43
Connecting a 3-Kw Universal AC/DC Power Supply to an AC Power Source44
Connecting a 3-Kw Universal AC/DC Power Supply to a DC Power Source44
Connecting a 3-Kw DC Power Supply to a DC Power Source45
Connecting the Switch to the Network49
Guidelines for Connecting Ports49
Connecting a Console to the Switch50
Connecting the Management Interface51
Creating the Initial Switch Configuration52
Connecting Interface Ports54
Connecting a BASE-T Port to the Network54
Disconnecting a BASE-T Port from the Network54
Connecting an Optical Port to the Network55
Disconnecting Optical Ports from the Network55
Optic Transceiver Removal Using the Optics Extraction Tool56
Maintaining Transceivers and Optical Cables57
Managing the Switch59
Displaying Information about the Installed Hardware Modules59
Displaying the Hardware Inventory for a Switch63
Displaying the Backplane and Serial Number Information64
Displaying Environmental Information for the Switch66
Displaying the Current State of a Module67
Displaying Temperatures for a Module69
Connecting to a Module70
Saving the Module Configuration71
Shutting down or Starting up a Module72
Purging a Nonfunctioning Module from the Running Configuration73
Displaying Power Usage Information73
Reload a Module74
Rebooting a Switch75
Overview of Supervisor Modules75
Overview of Power Modes77
Setting the Power Mode81
Overview of Fan Trays82
Displaying the Status for the Fan Trays83
Replacing or Installing Modules, Fan Trays, and Power Supplies85
Preventing Electrostatic Damage85
Installing or Replacing a Supervisor Module85
Upgrading a Supervisor Module88
Installing or Replacing a System Controller Module89
Installing or Replacing a Line Card91
Installing and Removing a Blank Line Card94
Replacing a Fan Tray96
Removing a Fan Tray96
Installing a Fan Tray97
Replacing a Fabric Module99
Removing a Fabric Module99
Installing a Fabric Module102
Installing or Replacing Power Supplies106
Installing or Replacing a 3-Kw AC Power Supply106
Installing or Replacing a 3-Kw Universal AC/DC Power Supply109
Installing or Replacing a 3.15-Kw Dual Input Universal AC/DC Power Supply111
Installing or Replacing a 3-Kw DC Power Supply113
Migrating the Switch from Using 40-Gigabit Line Cards to Using 100-Gigabit -EX/-FX Line Cards118
System Specifications121
Environmental Specifications121
Switch Dimensions121
Weights for the Chassis, Modules, Fan Trays, and Power Supplies122
Power Specifications125
Power Requirements for Switch Modules125
Maximum Power Available to the Switch125
Power Supply Specifications126
3000-W AC Power Supply Specifications126
3000-W Universal AC/DC Power Supply Specifications126
3000-W Dual Input Universal AC/DC Power Supply Specifications127
3000-W DC Power Supply Specifications127
Power Cable Specifications128
3-Kw AC Power Cable Specifications128
3-Kw Universal AC/DC and 3-Kw Dual Input Universal AC/DC Power Cable Specifications131
3-Kw DC Power Supply Power Cord Specifications135
Leds137
Chassis Leds137
System Controller Leds138
Supervisor Module Leds138
Fan Tray Leds139
Fabric Module Leds140
Line Card Leds140
Power Supply Leds141
Additional Kits143
Accessory Kit143
