Chapter 1 General Troubleshooting
1.2.2 Perform a Terminal Loopback on a Source-Node MXP or TXP Port

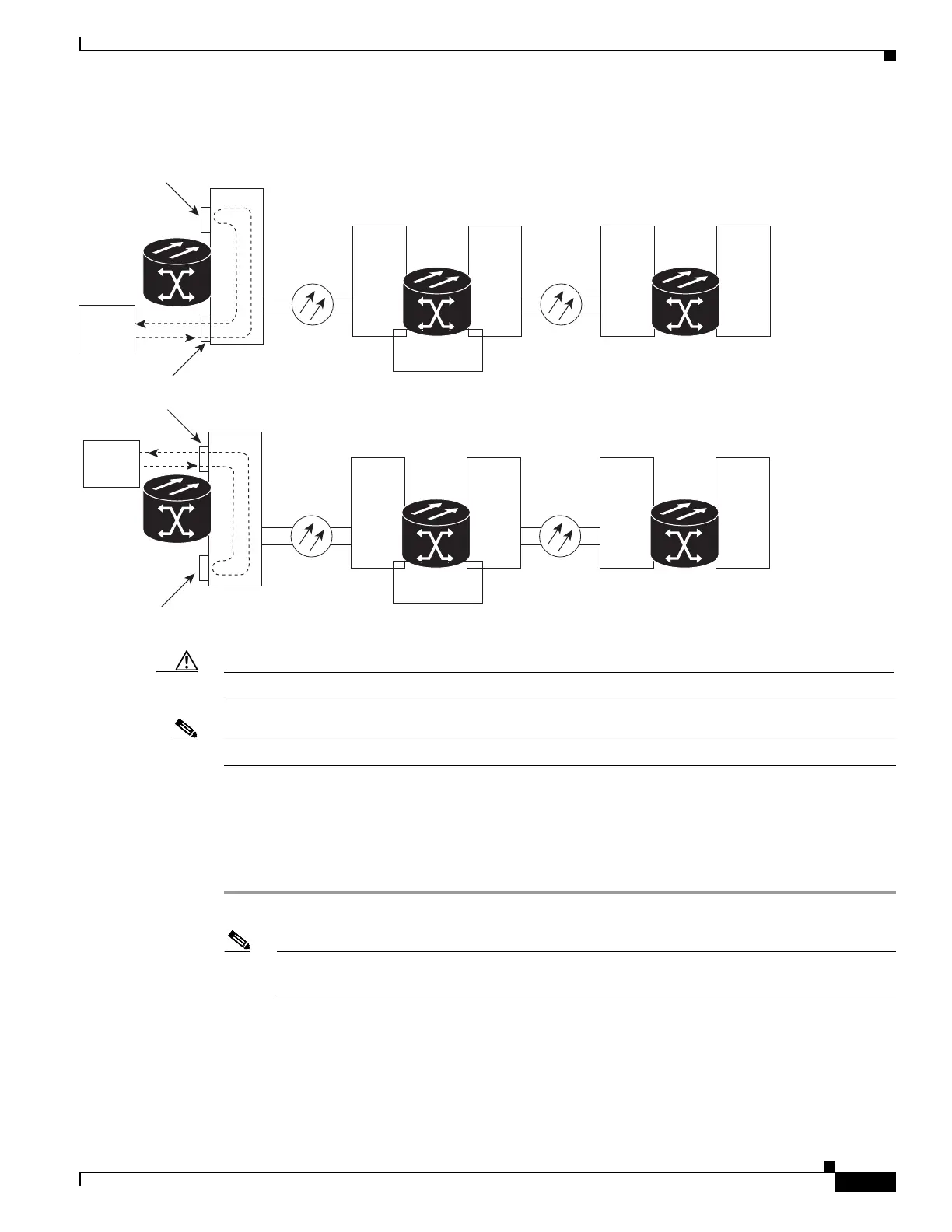

Figure 1-4 Terminal Loopback on a Source-Node MXP or TXP Port
Caution Performing a loopback on an in-service circuit is service-affecting.
Note Terminal loopbacks require on-site personnel.
Complete the “Create the Terminal Loopback on a Source-Node MXP or TXP Port” procedure on
page 1-11.
Create the Terminal Loopback on a Source-Node MXP or TXP Port
Step 1 Connect an optical test set to the port you are testing:
Note For specific procedures to connect, set up, and use the test set equipment, consult the
manufacturer.
a. If you just completed the “1.2.1 Perform a Facility Loopback on a Source-Node MXP or TXP Port”
procedure on page 1-7, leave the optical test set hooked up to the MXP or TXP port in the source
node.
TXP
Te st Set
Client port
Tr unk port
TXP
Client port
Tr unk port
Te st Set
Destination
ONS Node
TXPTXP
Source
ONS Node
Source
ONS Node
Intermediate
ONS Node
TXPTXP
Destination
ONS Node
TXPTXP
Intermediate
ONS Node
TXPTXP
145760
Regenerate
Regenerate
