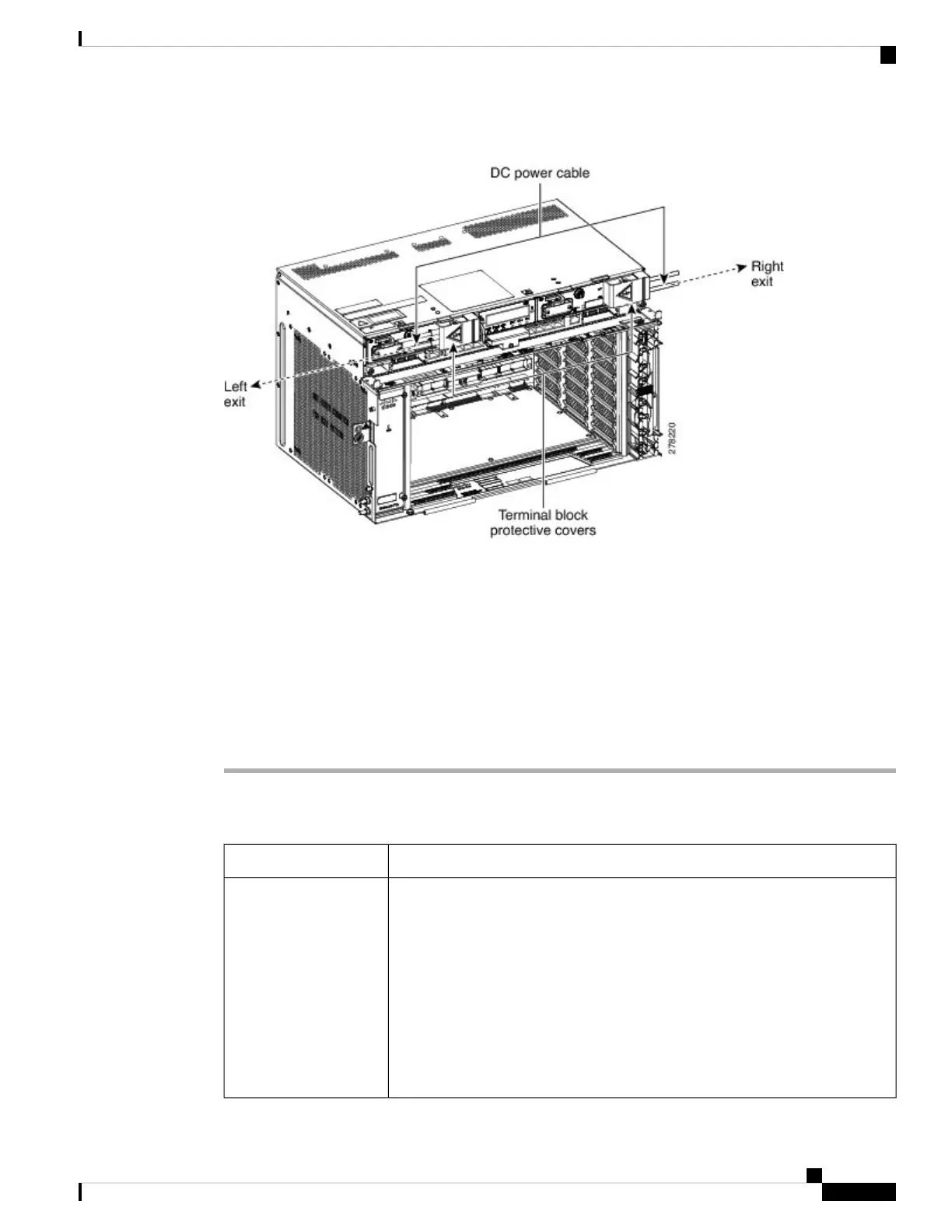

Figure 86: Connecting Office Power—DC Power Modules (ANSI Only)
Before you make any crimp connections, coat all bare conductors (battery, battery return, and frame
ground) with an appropriate antioxidant compound. Bring all unplated connectors, braided strap,
and bus bars to a bright finish, then coat with an antioxidant before you connect them. You do not
need to prepare tinned, solder-plated, or silver-plated connectors and other plated connection surfaces,
but always keep them clean and free of contaminants.
Caution
When terminating power, return (RET), and frame ground, do not use soldering lug, screwless
(push-in) connectors, quick-connect, or other friction-fit connectors.
Caution
Step 13 Return to your originating procedure (NTP).
DLP-G573 Connect Office Power (DC) to the ONS 15454 M6 Shelf (ETSI Only)
This task connects power to the ONS 15454 M6 shelf (ETSI Only).Purpose
• #2 Phillips Dynamometric screwdriver
• Medium slot-head screwdriver
• Small slot-head screwdriver
• Wire wrapper
• Wire cutters
• Wire strippers
• Crimp tool
• Fuse panel
• Ground cable #6 AWG stranded. The PIDs of the power cables are listed in
Table 3: PIDs for DC Power Cables, on page 114.
Tools/Equipment
Installing the ONS 15454 M6 Shelf
111
Installing the ONS 15454 M6 Shelf
DLP-G573 Connect Office Power (DC) to the ONS 15454 M6 Shelf (ETSI Only)
