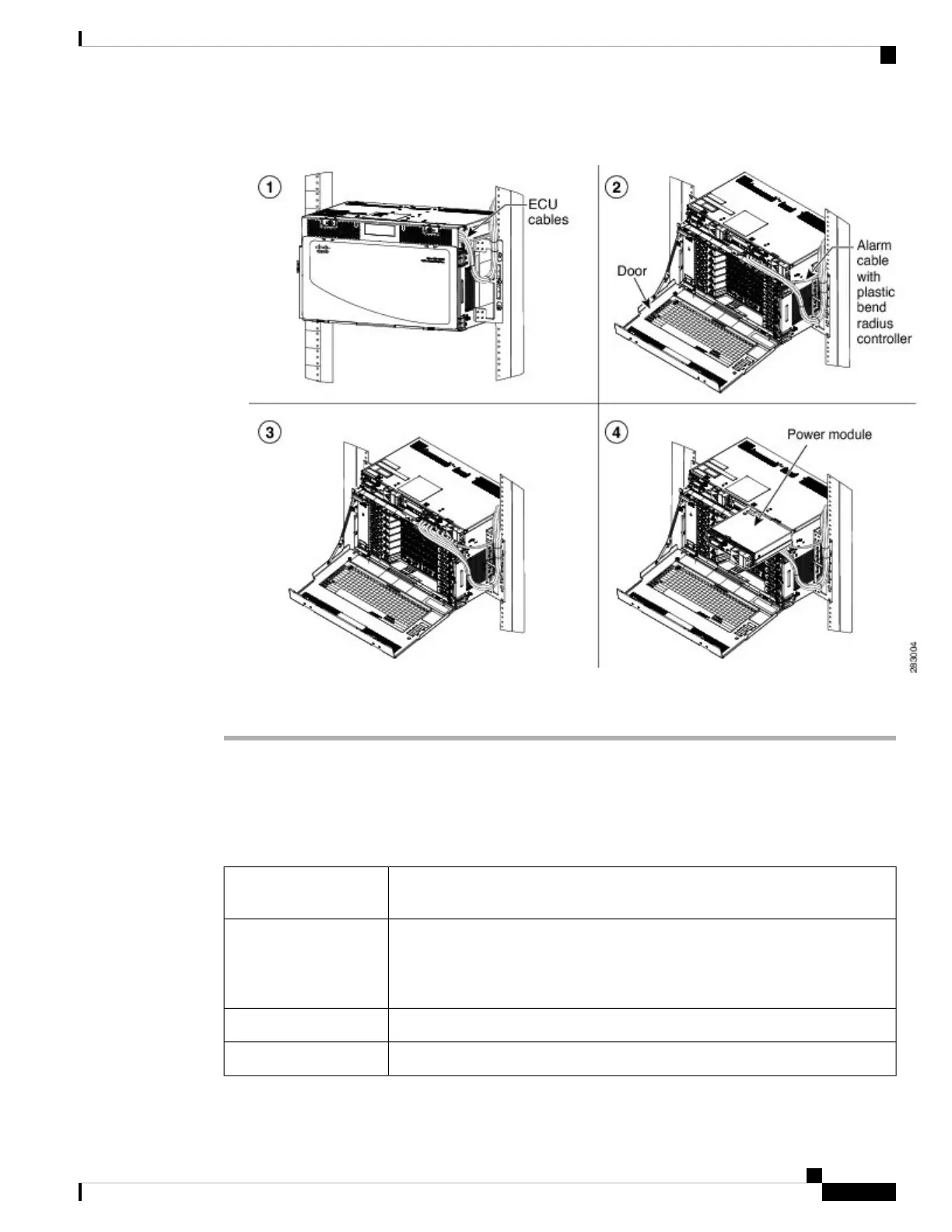

Figure 97: Sequence to Remove the Power Module
Step 5 Return to your originating procedure (NTP).
NTP-G312 Attach Wires to Alarm, Timing, LAN, and Craft Pin
Connections in Cisco ONS 15454 M6
Use this procedure to attach alarm, timing, LAN, and craft wires in the ONS 15454
M6 shelf.
Purpose
Twisted #22 or #24 AWG (0.51 mm² or 0.64 mm²) shielded wires for LAN or
craft 75-ohm coaxial cable with DIN-1.0/2.3 miniature coaxial connector, Alarm
26 pins SCSI cable. The PIDs of the SCSI cables are listed in Table 4: PIDs for
SCSI Cables, on page 128.
Tools/Equipment
NTP-G253 Install the ECU or ECU-S Module, on page 79Prerequisite Procedures
As neededRequired/As Needed
Installing the ONS 15454 M6 Shelf
127
Installing the ONS 15454 M6 Shelf
NTP-G312 Attach Wires to Alarm, Timing, LAN, and Craft Pin Connections in Cisco ONS 15454 M6
