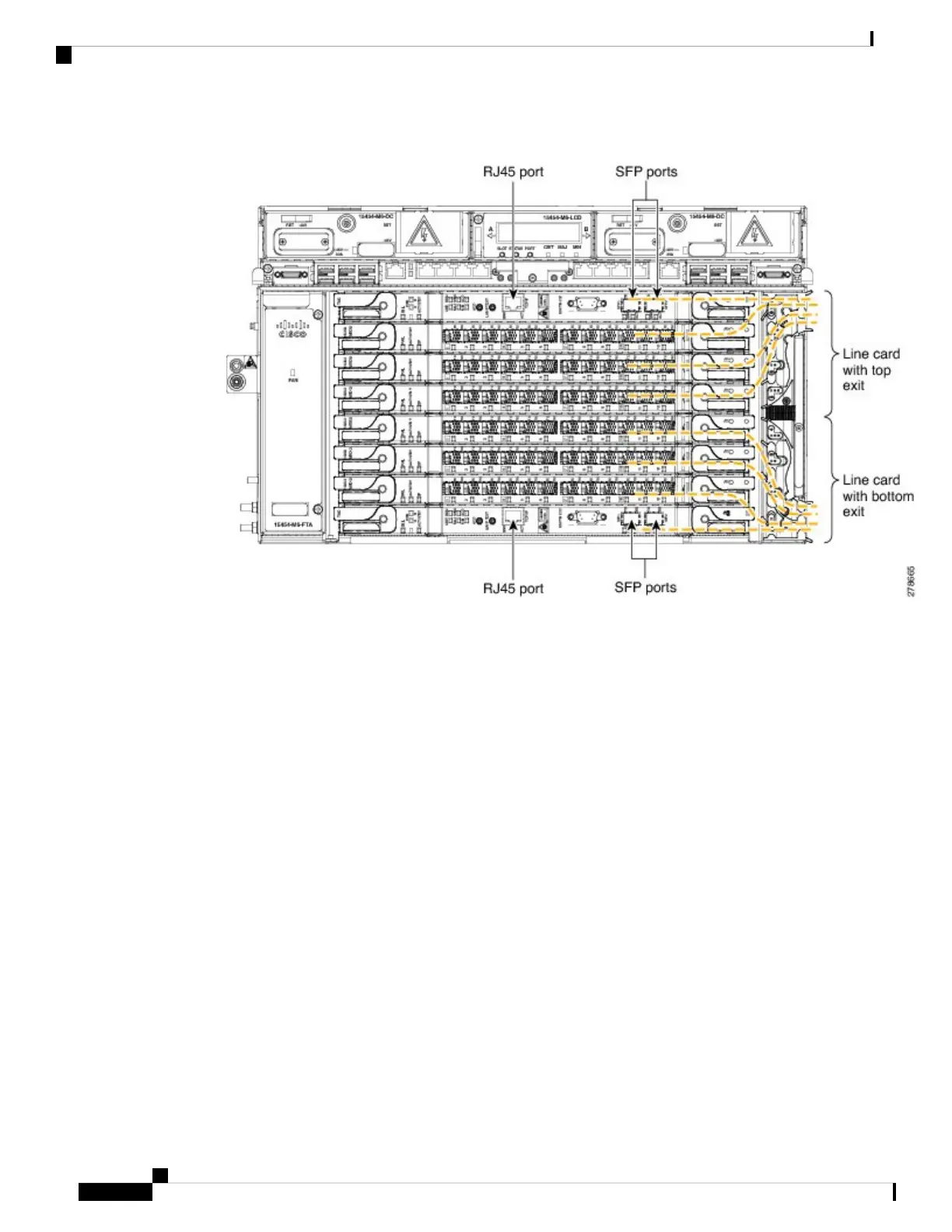

Figure 96: Cable Routing
b) Remove the front door and connect the copper cables to the SFP or RJ-45 ports of the cards.Do not route
the copper cables from the SFPs or RJ-45 ports through the fiber or cable module.
Step 4 To extract the power module, do the following:
a) Open the door of the chassis. See Diagram 2 of Figure 97: Sequence to Remove the Power Module, on
page 127.
b) Move the ECU cables away from the chassis. Ensure that the alarm cable with the plastic bend radius
controller is not moved. See Diagram 3 of Figure 97: Sequence to Remove the Power Module, on page
127.
c) Remove the power module. See Diagram 4 of Figure 97: Sequence to Remove the Power Module, on
page 127.
Installing the ONS 15454 M6 Shelf
126
Installing the ONS 15454 M6 Shelf
DLP-G655 Route and Lock Cables
