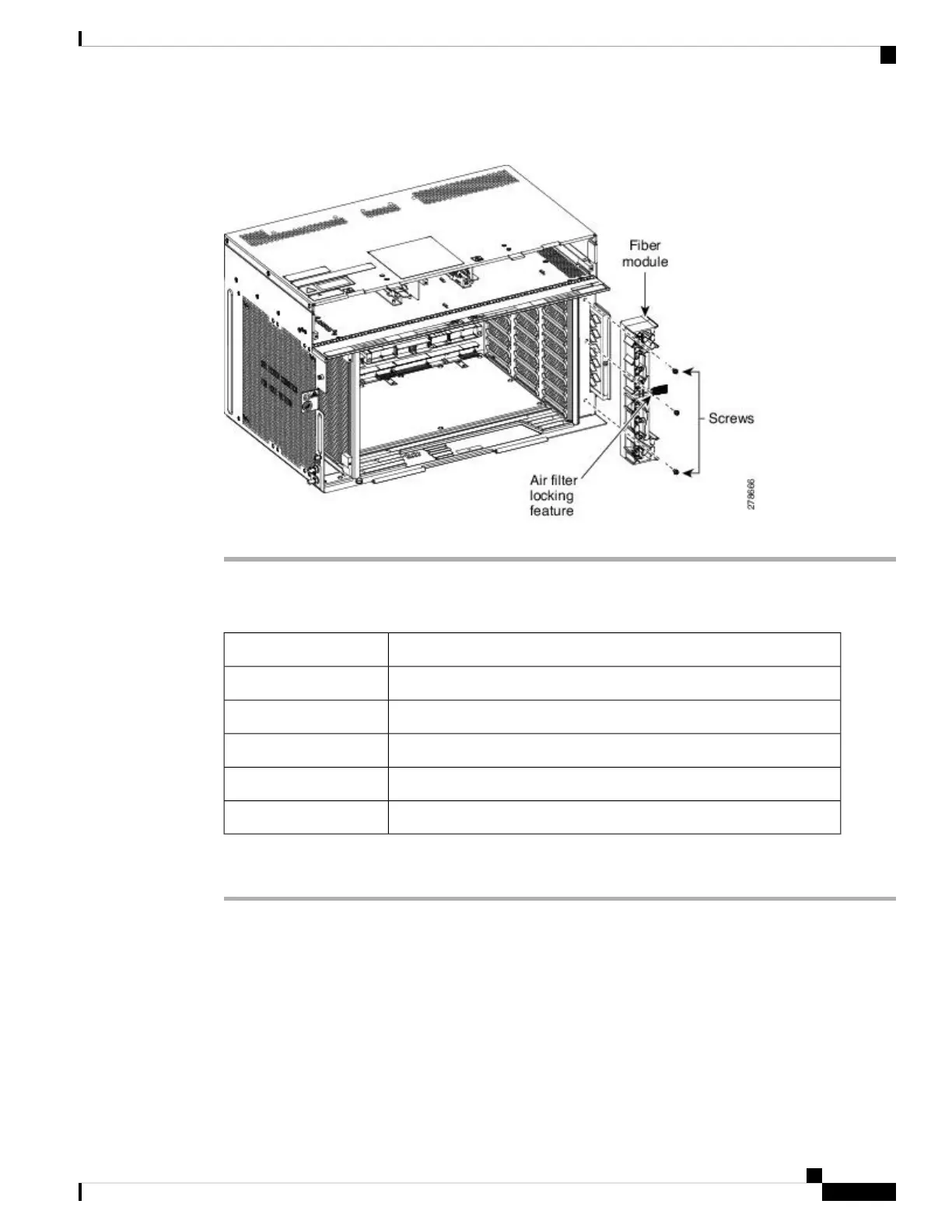

Figure 92: Removing the Fiber module
DLP-G654 Install the Cable Module
This procedure installs the cable module in the ONS 15454 M6 system.Purpose
Phillips cross-head PH screwdriver #1Tools/Equipment
DLP-G653 Remove the Fiber Module, on page 122Prerequisite Procedures
As neededRequired/As Needed
OnsiteOnsite/Remote
NoneSecurity Level
Procedure
Step 1 Insert the air filter locking feature on the cable module. (See the following figure.)
Step 2 Attach the slot label identity on the cable module, with screws.
Step 3 Mount the cable module on the chassis, and tighten the screws to a torque value of 4 in-lb (0.45 N-m) to attach
the cable module to the ONS 15454 M6 shelf.
Installing the ONS 15454 M6 Shelf
123
Installing the ONS 15454 M6 Shelf
DLP-G654 Install the Cable Module
