Step 6 Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 7 Place the 23-inch mounting bracket flush in the front position (see Diagram 1 of Figure 32: Mounting the
Brackets with Air Deflectors (Front-to-Back) on the ONS 15454 M6 Shelf for ANSI Rack Configuration, on
page 34) or in the middle position (see Diagram 3 of Figure 32: Mounting the Brackets with Air Deflectors
(Front-to-Back) on the ONS 15454 M6 Shelf for ANSI Rack Configuration, on page 34) against the right
side of the chassis.
Step 8 Align the screw holes on the 23-inch mounting bracket with the screw holes on the right side of the chassis.
Step 9 Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).
Step 10 Place the 23-inch mounting bracket flush in the front position (see Diagram 1 of Figure 32: Mounting the
Brackets with Air Deflectors (Front-to-Back) on the ONS 15454 M6 Shelf for ANSI Rack Configuration, on
page 34) or in the middle position (see Diagram 3 of Figure 32: Mounting the Brackets with Air Deflectors
(Front-to-Back) on the ONS 15454 M6 Shelf for ANSI Rack Configuration, on page 34) against the left side
of the chassis.
Step 11 Align the screw holes on the 23-inch mounting bracket with the screw holes on the left side of the chassis.
Step 12 Insert the screws and tighten them to a torque value of 11.5 in-lb (1.3 N-m).

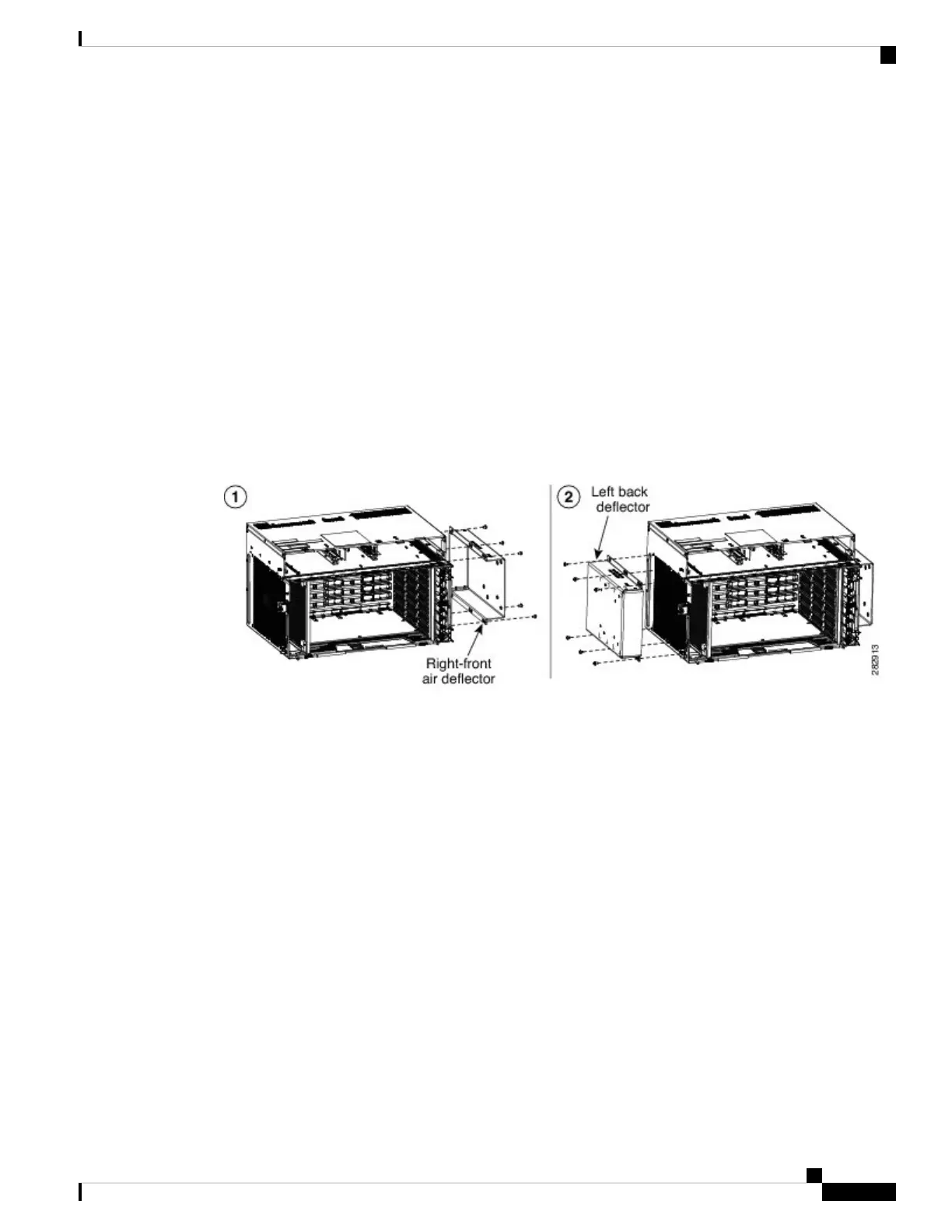

Figure 31: Mounting the Air Deflectors (Front-to-Back) on the ONS 15454 M6 Shelf for the ANSI rack Configuration
Installing the ONS 15454 M6 Shelf
33
Installing the ONS 15454 M6 Shelf
DLP-G561 Mounting the Bracket with Air Deflectors (Front-to-Back) on the ONS 15454 M6 Shelf for ANSI Rack Configuration
