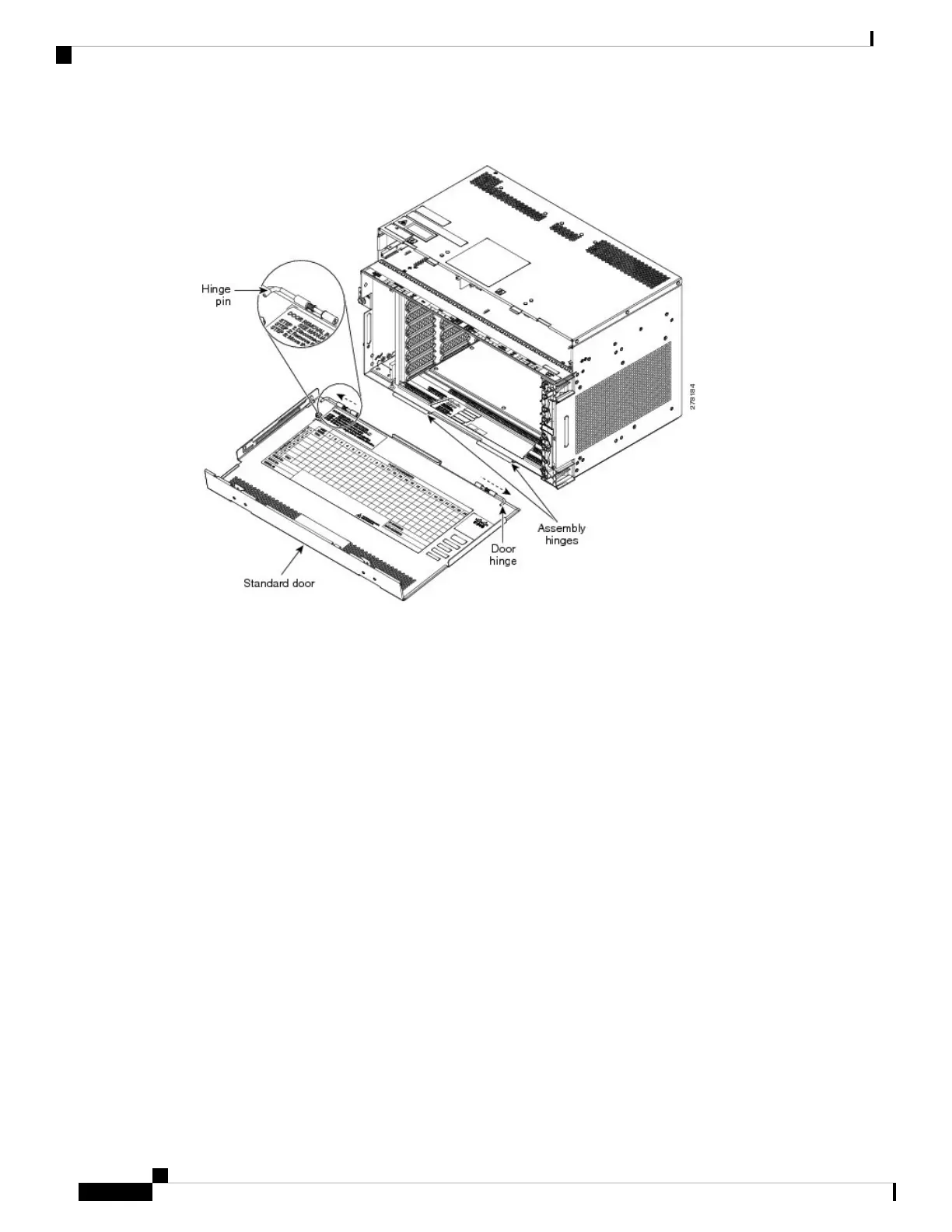

Figure 48: Installing the Standard Door
Step 2 Align the standard door hinges with the chassis hinges.
Step 3 Release the hinge pins.
Step 4 Pull the retention feature from the door (see Figure 49: Mounting the Mechanical Stop, on page 55).
Step 5 Loosen the screws and place the mechanical stop on the retention feature. (See Diagram 1 of Figure 49:
Mounting the Mechanical Stop, on page 55.)
Step 6 Place the retention feature on the pin present on the chassis. (See Diagram 2 of Figure 49: Mounting the
Mechanical Stop, on page 55.)
Step 7 Raise the door to slide the pin. (See Diagram 3 of Figure 49: Mounting the Mechanical Stop, on page 55.)
Step 8 Slide the mechanical stop to lock the door position and tighten the screws. (See Diagram 4 of Figure 49:
Mounting the Mechanical Stop, on page 55.)
Reinstall the door after installing all the other modules.
