Cisco ONS 15454 M6 - Page 7

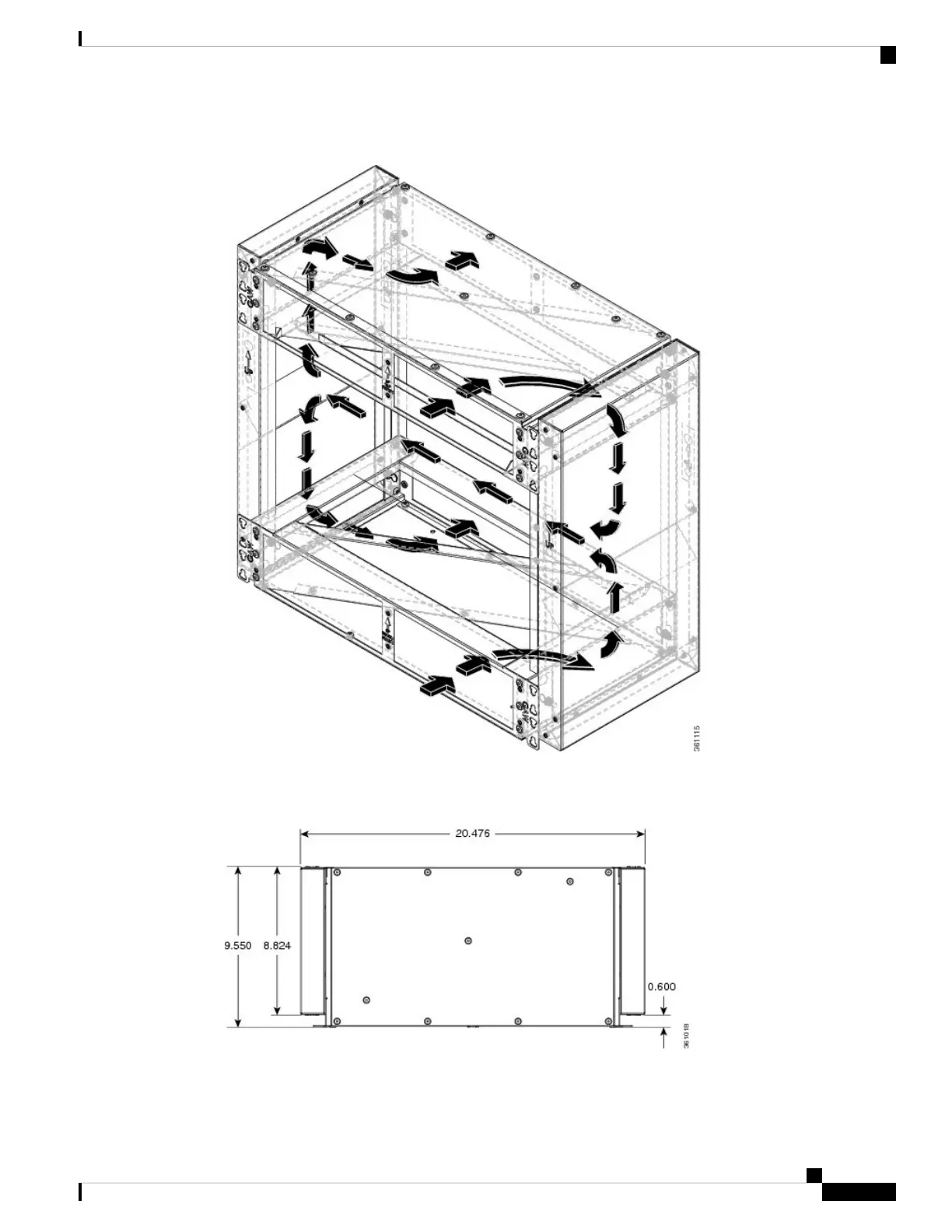

Figure 3: Air flow within the air plenum in the cabinet
The following two figures shows the dimensions of the air plenum relative to the cabinet or rack.
Figure 4: Dimension of Cisco ONS 15454 M6 chassis relative to the air plenum
Installing the ONS 15454 M6 Shelf
7
Installing the ONS 15454 M6 Shelf
Air Plenum
