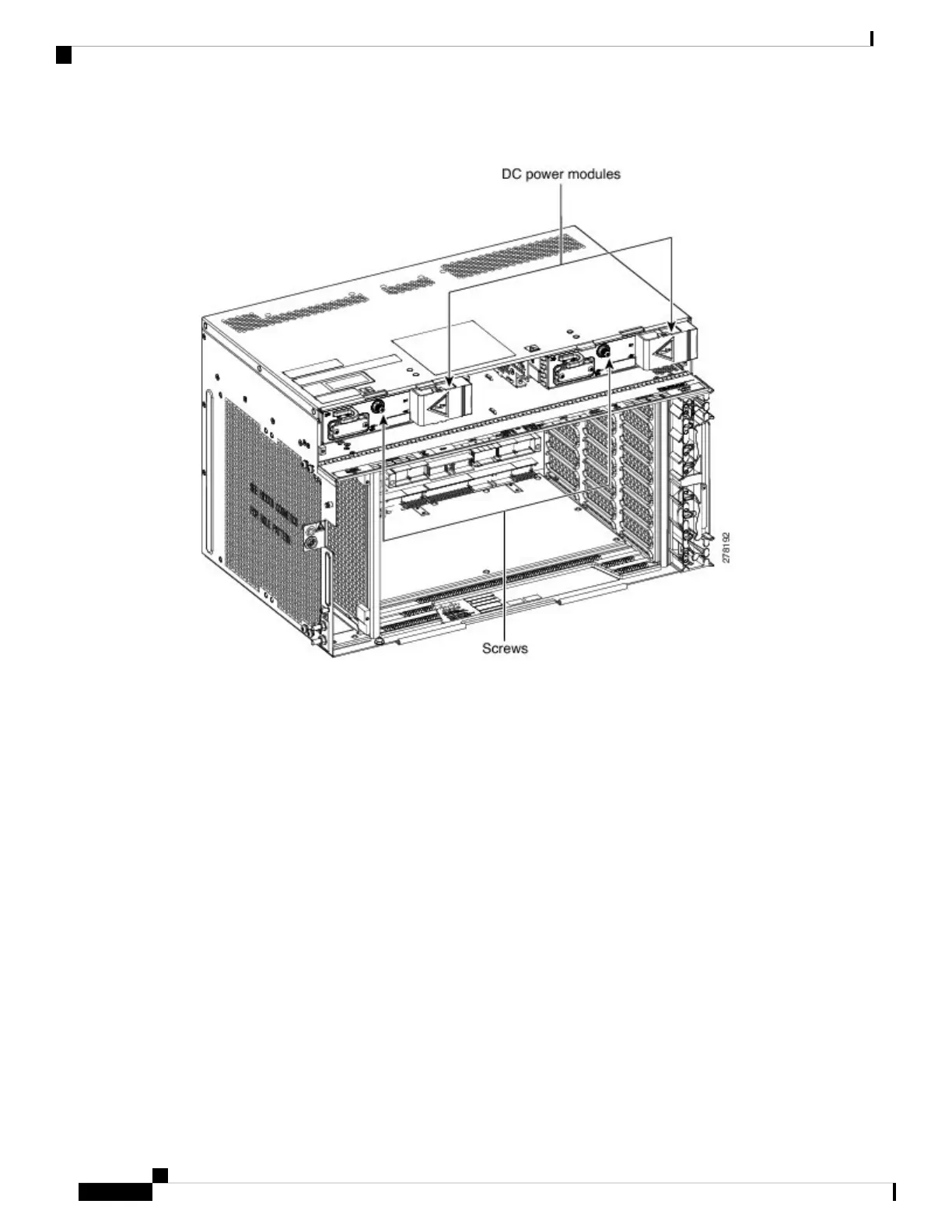

Figure 77: DC Power Modules Installed in the ONS 15454 M6 Shelf
For redundant power supplies, two DC power modules can be installed in Slot A and Slot B. However,
only one power module can sustain the functioning of the entire ONS 15454 M6 system. In that
case, insert a power filler module in the empty slot (see the following figure).
Note
The following figure shows a DC power module installed in Slot A and a power filler module installed in Slot
B.
Installing the ONS 15454 M6 Shelf
92
Installing the ONS 15454 M6 Shelf
DLP-G570 Install the DC Power Module in the ONS 15454 M6 Shelf
