Cisco UCS C240 M5 Service Manual

b) Slide the server out the front of the rack far enough so that you can remove the top cover. You might have to detach
cables from the rear panel to provide clearance.
If you cannot safely view and access the component, remove the server from the
rack.
Caution
c) Remove the top cover from the server as described in Removing the Server Top Cover, on page 41.
Step 2
Remove an existing intrusion switch:
a) Disconnect the intrusion switch cable from the socket on the motherboard.
b) Use a #1 Phillips-head screwdriver to loosen and remove the single screw that holds the switch mechanism to the
chassis wall.
c) Slide the switch mechanism straight up to disengage it from the clips on the chassis.
Step 3
Install a new intrusion switch:
a) Slide the switch mechanism down into the clips on the chassis wall so that the screwholes line up.
b) Use a #1 Phillips-head screwdriver to install the single screw that secures the switch mechanism to the chassis wall.
c) Connect the switch cable to the socket on the motherboard.
Step 4
Replace the cover to the server.
Step 5
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

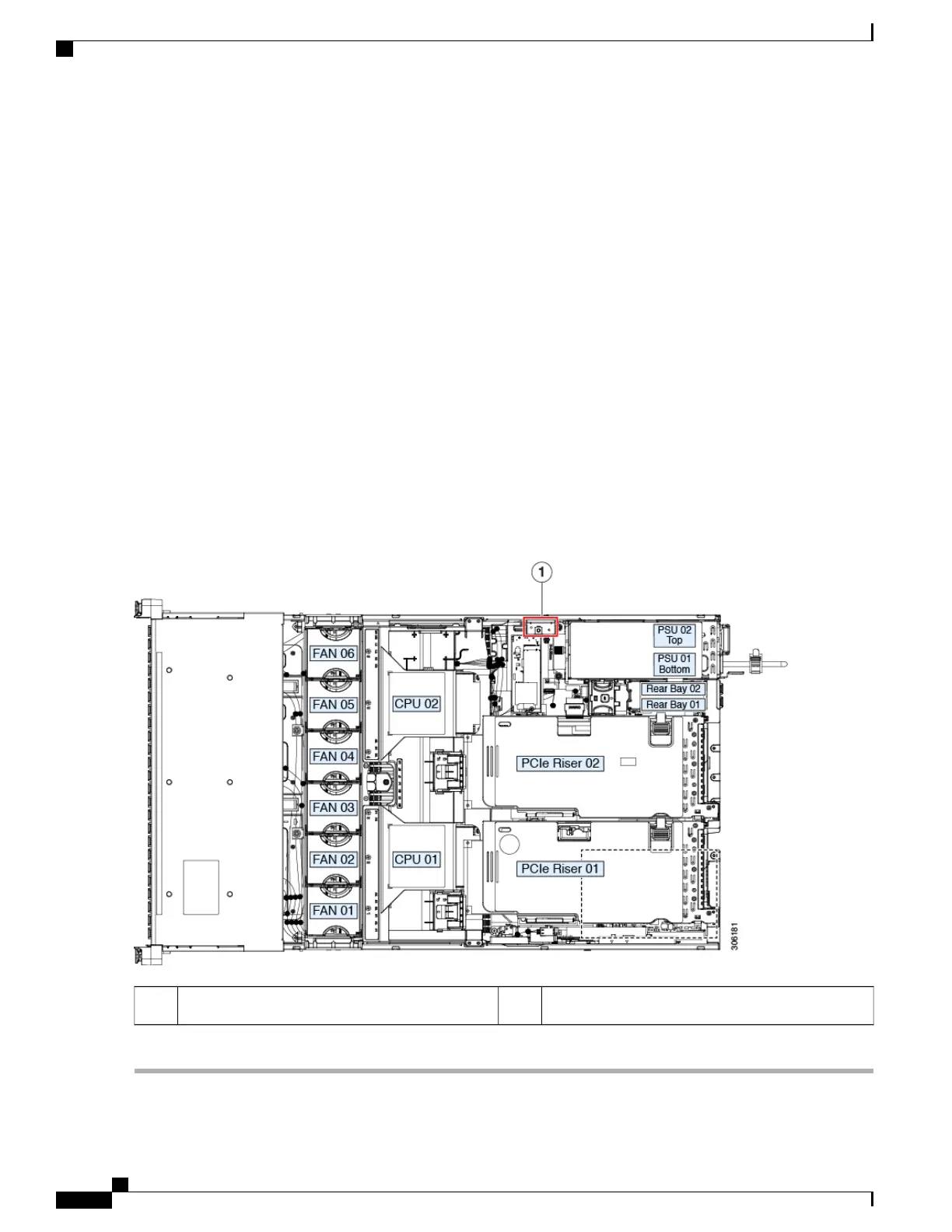

Figure 48: Replacing a Chassis Intrusion Switch
-Intrusion switch location1
Cisco UCS C240 M5 Server Installation and Service Guide
108
Maintaining the Server
Replacing a Chassis Intrusion Switch

Cisco UCS C240 M5 Specifications

General

Form Factor	2U Rack
Storage Controllers	Cisco 12G SAS Modular RAID Controller
Management	Cisco Integrated Management Controller (CIMC)
Processor	Intel Xeon Scalable Processors
Memory	Up to 3TB DDR4
Drive Bays	Up to 12 x 3.5-inch drives
