c) Carefully push down on both ends of the PCIe riser to fully engage its circuit board connector with the socket on the
motherboard.
Step 6
Replace the top cover to the server.
Step 7
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

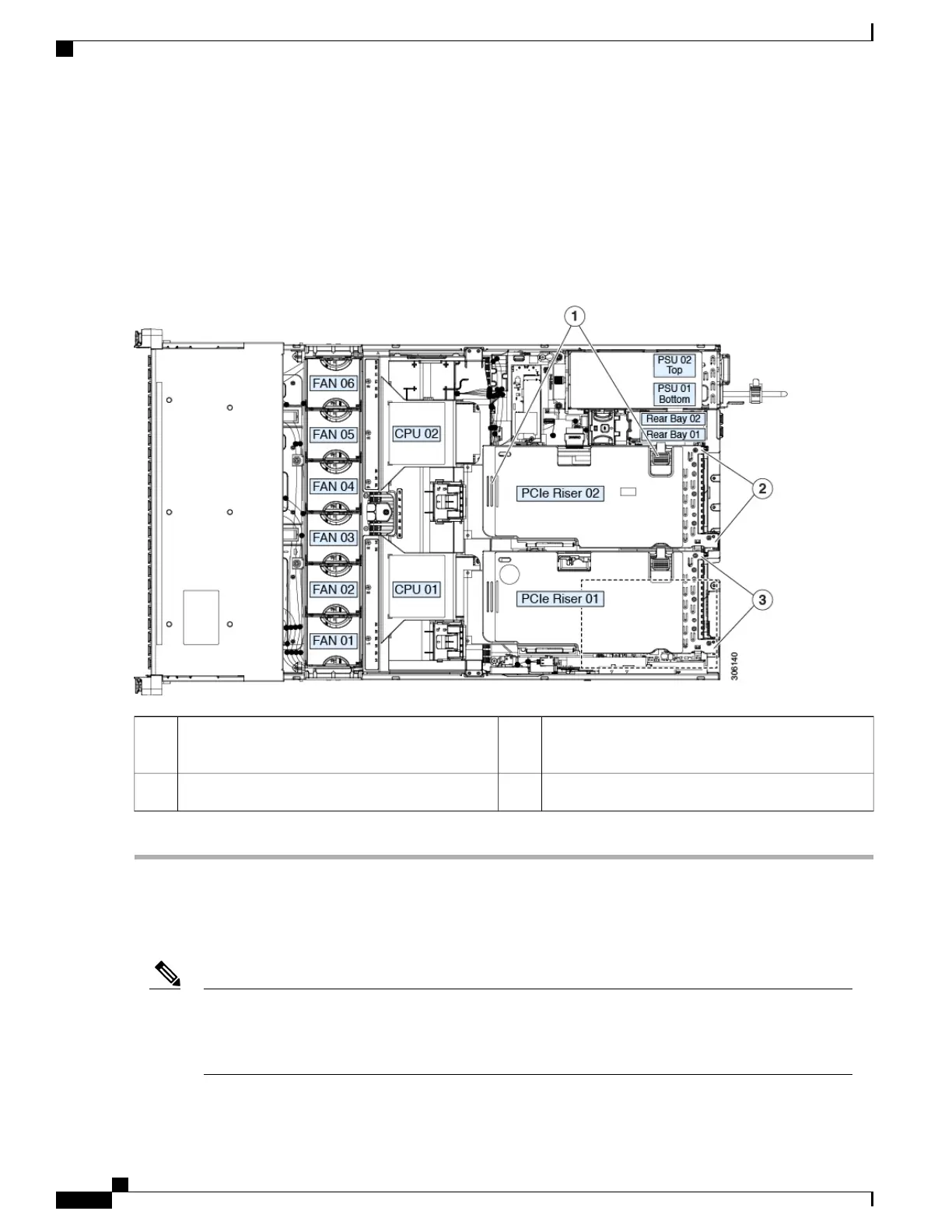

Figure 41: PCIe Riser Alignment Features
Riser 1 alignment features in chassis3Riser handling points (flip-up handle and blue
forward edge)
1
Riser 2 alignment features in chassis2
Replacing a PCIe Card
Cisco supports all PCIe cards qualified and sold by Cisco. PCIe cards not qualified or sold by Cisco are
the responsibility of the customer. Although Cisco will always stand behind and support the C-Series
rack-mount servers, customers using standard, off-the-shelf, third-party cards must go to the third-party
card vendor for support if any issue with that particular card occurs.
Note
Cisco UCS C240 M5 Server Installation and Service Guide
94
Maintaining the Server
Replacing a PCIe Card
