Cisco UCS C240 M5 Service Manual

c) Push down on the carrier so that the securing clips click over it at both ends.
Step 6
Replace the top cover to the server.
Step 7
Replace the server in the rack, replace cables, and then fully power on the server by pressing the Power button.

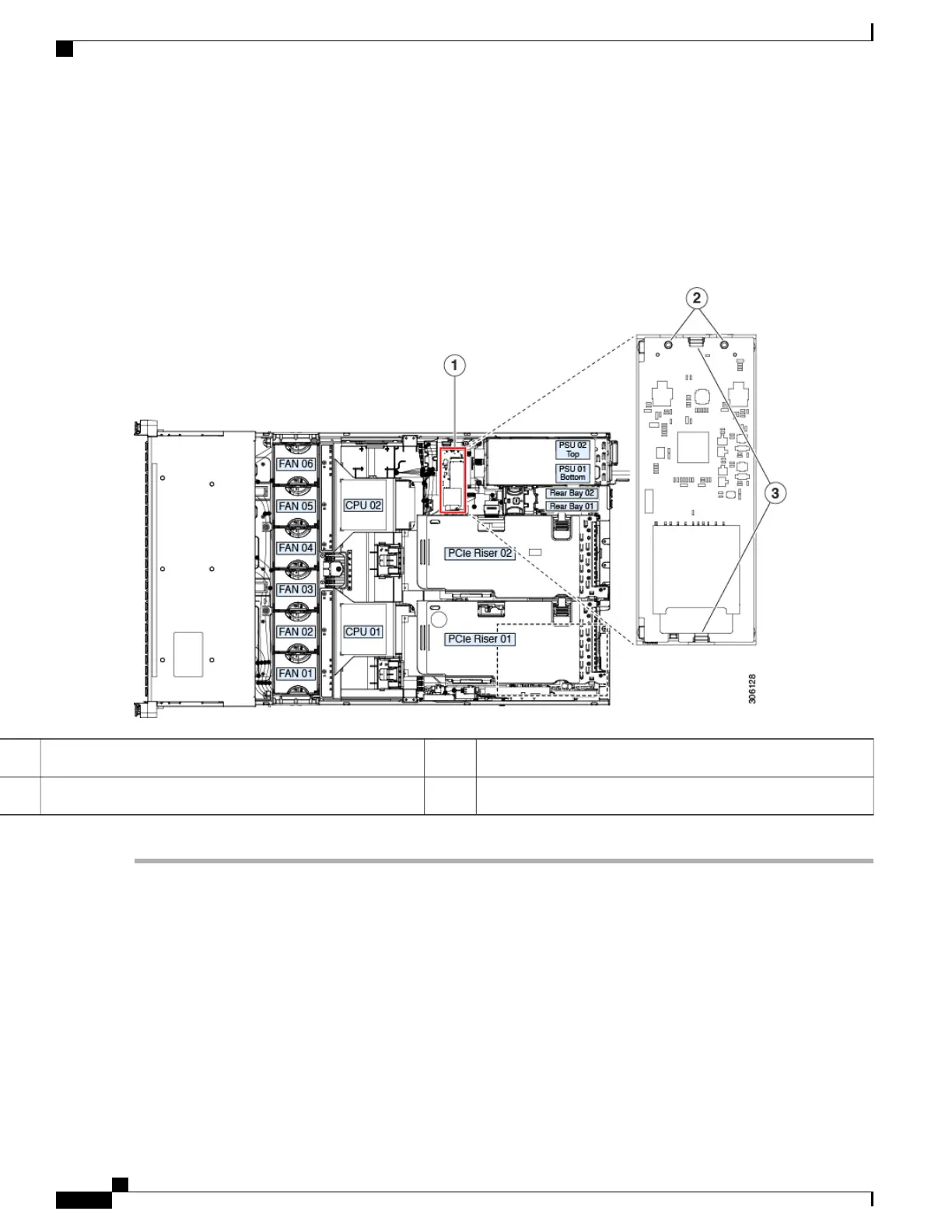

Figure 34: Mini-Storage Module Carrier Socket
Securing clips3Location of socket on motherboard1
-Alignment pegs2
Replacing an SD Card in a Mini-Storage Carrier For SD
This topic describes how to remove and replace an SD card in a mini-storage carrier for SD (PID
UCS-MSTOR-SD). The carrier has one SD card socket on its top and one socket on its underside.
Population Rules For Mini-Storage SD Cards
•
You can use one or two SD cards in the carrier.
•
Dual SD cards can be configured in a RAID 1 array through the Cisco IMC interface.
Cisco UCS C240 M5 Server Installation and Service Guide
82
Maintaining the Server
Replacing a Mini-Storage Module

Cisco UCS C240 M5 Specifications

General

Form Factor	2U Rack
Storage Controllers	Cisco 12G SAS Modular RAID Controller
Management	Cisco Integrated Management Controller (CIMC)
Processor	Intel Xeon Scalable Processors
Memory	Up to 3TB DDR4
Drive Bays	Up to 12 x 3.5-inch drives
