CPUs and their sockets are fragile and must be handled with extreme care to avoid damaging

pins.

Caution

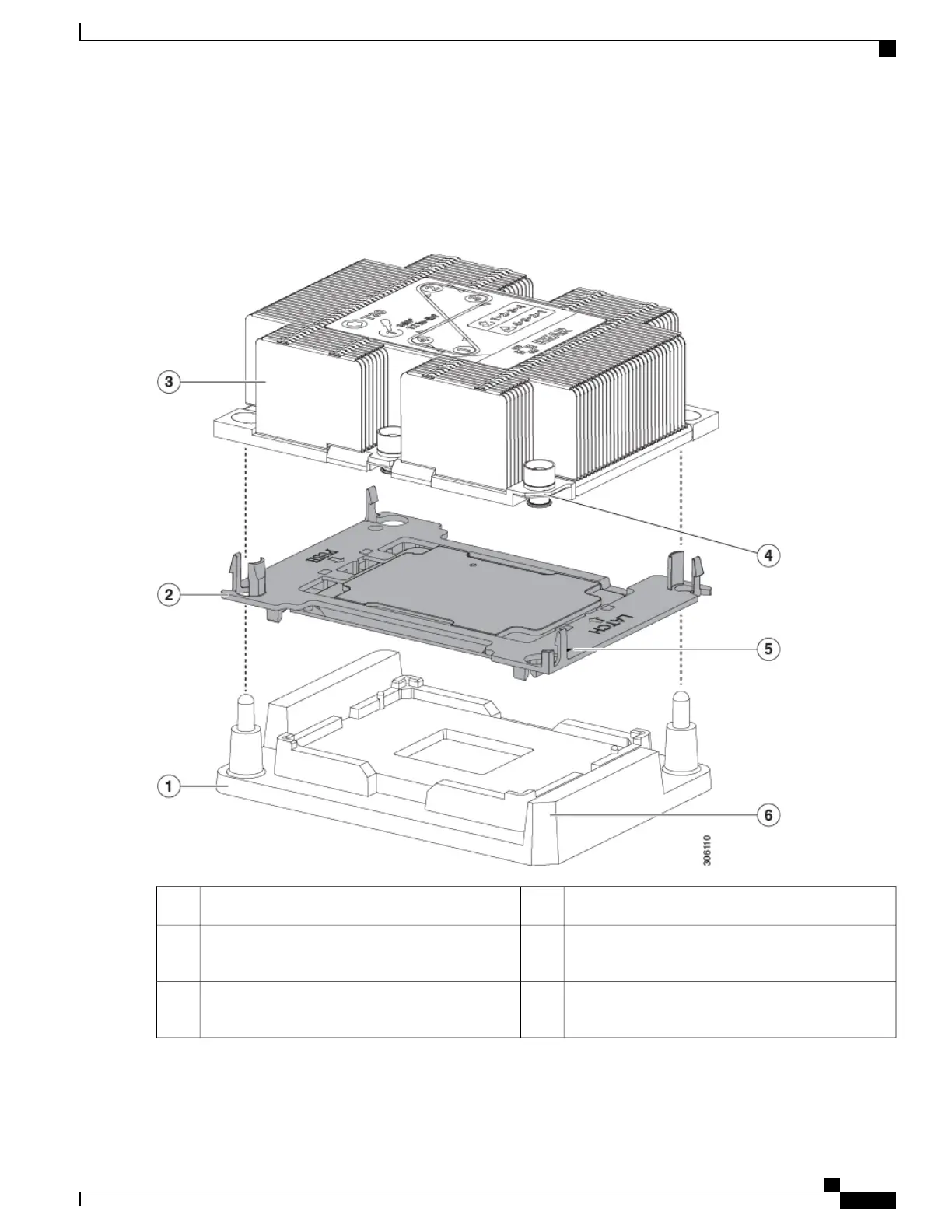

Figure 31: CPU Assembly Tool, CPU Assembly, and Heatsink Alignment Features

Angled corner on heatsink (pin 1 alignment feature)4CPU assembly tool1

Triangle cut into plastic carrier (pin 1 alignment

feature)

5CPU assembly (CPU in plastic carrier frame)2

Angled corner on CPU assembly tool (pin 1

alignment feature)

6Heatsink3

Step 4

Apply new TIM to the heatsink:

Cisco UCS C240 M5 Server Installation and Service Guide

Maintaining the Server

Replacing CPUs and Heatsinks

Overview3
