Chapter 3 Maintaining the Server
Installing or Replacing Server Components
Caution If you cannot safely view and access the component, remove the server from the rack.
c. Remove the top cover as described in “Removing and Replacing the Server Top Cover” section on
page 3-7.
d. Remove the I/O riser to provide clearance. See Replacing the I/O Riser, page 3-12.
e. Locate the eUSB drive and remove the single screw that secures it to the motherboard standoff.
f. Lift straight up on both ends the eUSB drive to disengage it from the motherboard connector.
Step 2 Install a new eUSB drive.
a. Align the connector on the underside of the eUSB drive with the empty drive connector on the
motherboard and push on both ends of the drive evenly to seat the connector.
b. Replace the single mounting screw that secures the eUSB drive to the motherboard standoff.
c. Replace the I/O riser. See Replacing the I/O Riser, page 3-12.
d. Replace the top cover.
e. Replace the server in the rack, replace cables, and then power on the server by pressing the Power
button.

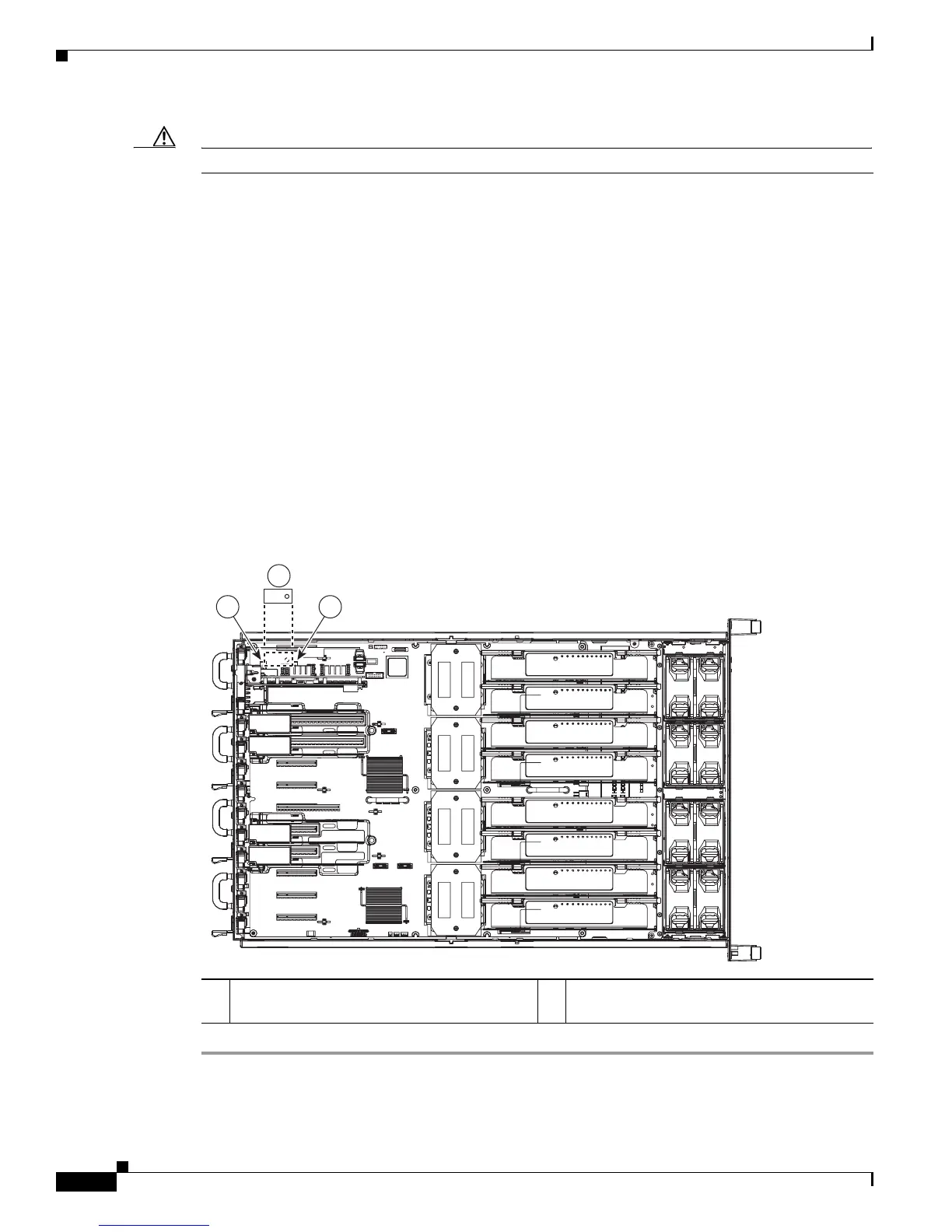

Figure 3-8 Removing and Replacing the eUSB Drive
1 eUSB connectors on motherboard (two) 2 eUSB drive, showing orientation of hole for
securing screw
198884
1
2
1
