3-13
Cisco UCS C460 Server Installation and Service Guide
OL-22326-01z
Chapter 3 Maintaining the Server
Installing or Replacing Server Components

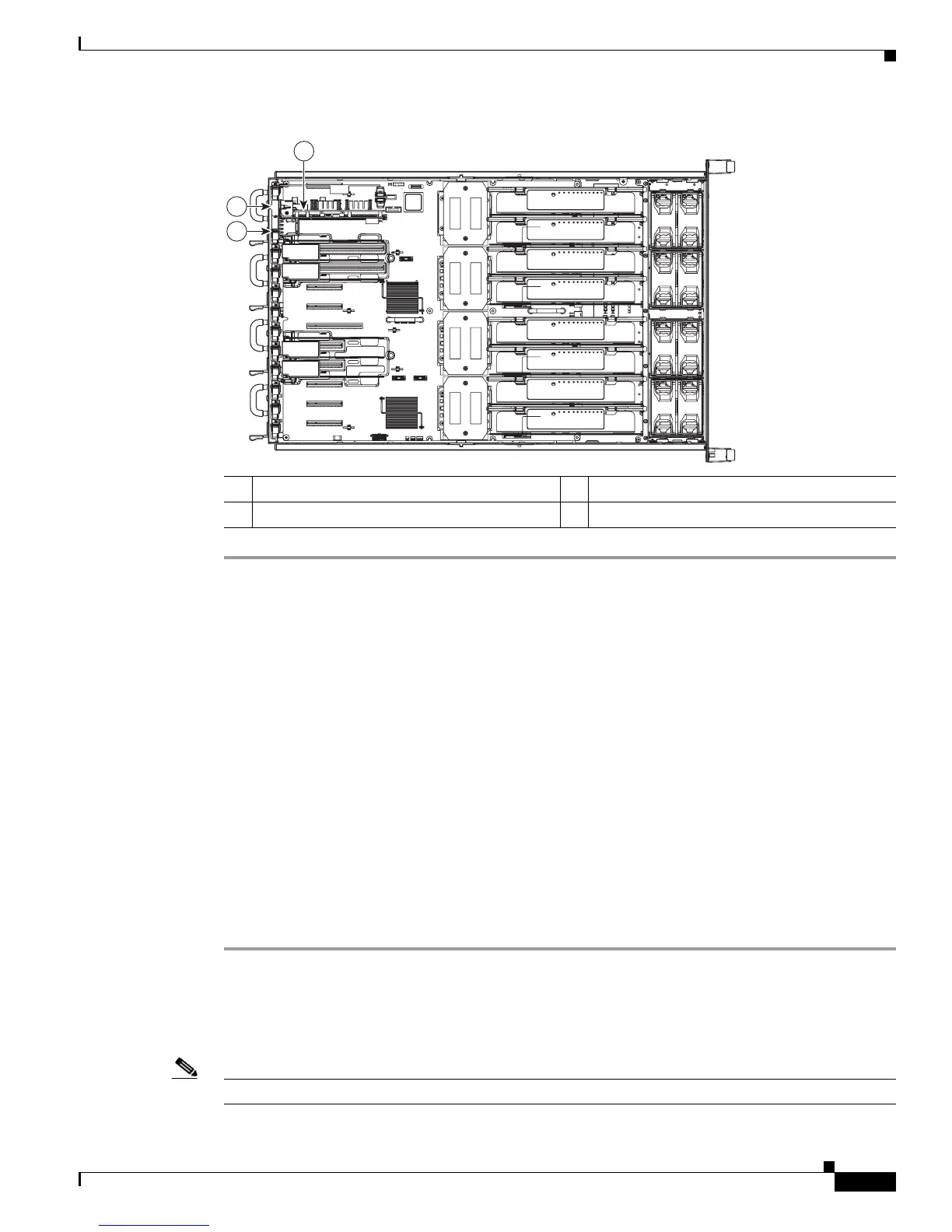

Figure 3-7 Removing and Replacing the I/O Riser
Replacing an Internal Flash eUSB Drive
The eUSB drive is a small solid-state flash drive card that connects to the motherboard in either of two
eUSB drive connectors.
The qualified and supported part numbers for this component are subject to change over time. For the most
up-to-date list of replaceable components, see the following URL and then scroll to Technical Specifications:
http://www.cisco.com/en/US/products/ps10493/products_data_sheets_list.html
This section contains the following topics:
• Replacement Procedure, page 3-13
• Enabling or Disabling the Internal USB Port, page 3-15
Replacement Procedure
To install or replace the eUSB drive, follow these steps:
Step 1 Remove the eUSB drive you are replacing. See Figure 3-8:
a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on
page 3-6.
b. Slide the server out the front of the rack far enough so that you can remove the top cover.
Note You might have to detach cables from the rear panel to provide clearance.
1 Retaining clip 2 I/O riser back panel
3 I/O riser
3
1
2
198883
