Chapter 3 Maintaining the Server
Installing or Replacing Server Components
Replacing a PCIe Card
Note If you are installing a Cisco UCS Virtual Interface Card, there are prerequisite considerations. See
Special Considerations for Cisco UCS Virtual Interface Cards, page 3-42.
This server has 10 PCIe expansion slots. See Figure 3-27 and Table 3-4 for information about the slots
and which slots are hot-swappable. The replacement procedures differ depending on whether the PCIe
slot is hot-swappable or not. This section contains the following topics:
• PCIe Slots, page 3-38
• Replacing a PCIe Card in a Non Hot-Swappable Slot, page 3-39
• Replacing a PCIe Card in a Hot-Swappable Slot, page 3-40
• Special Considerations for Cisco UCS Virtual Interface Cards, page 3-42
• Special Considerations for Cisco UCS Fusion ioDrive2 Storage Accelerator Cards, page 3-42
• Installing Multiple PCIe Cards and Resolving Limited Resources, page 3-43
PCIe Slots

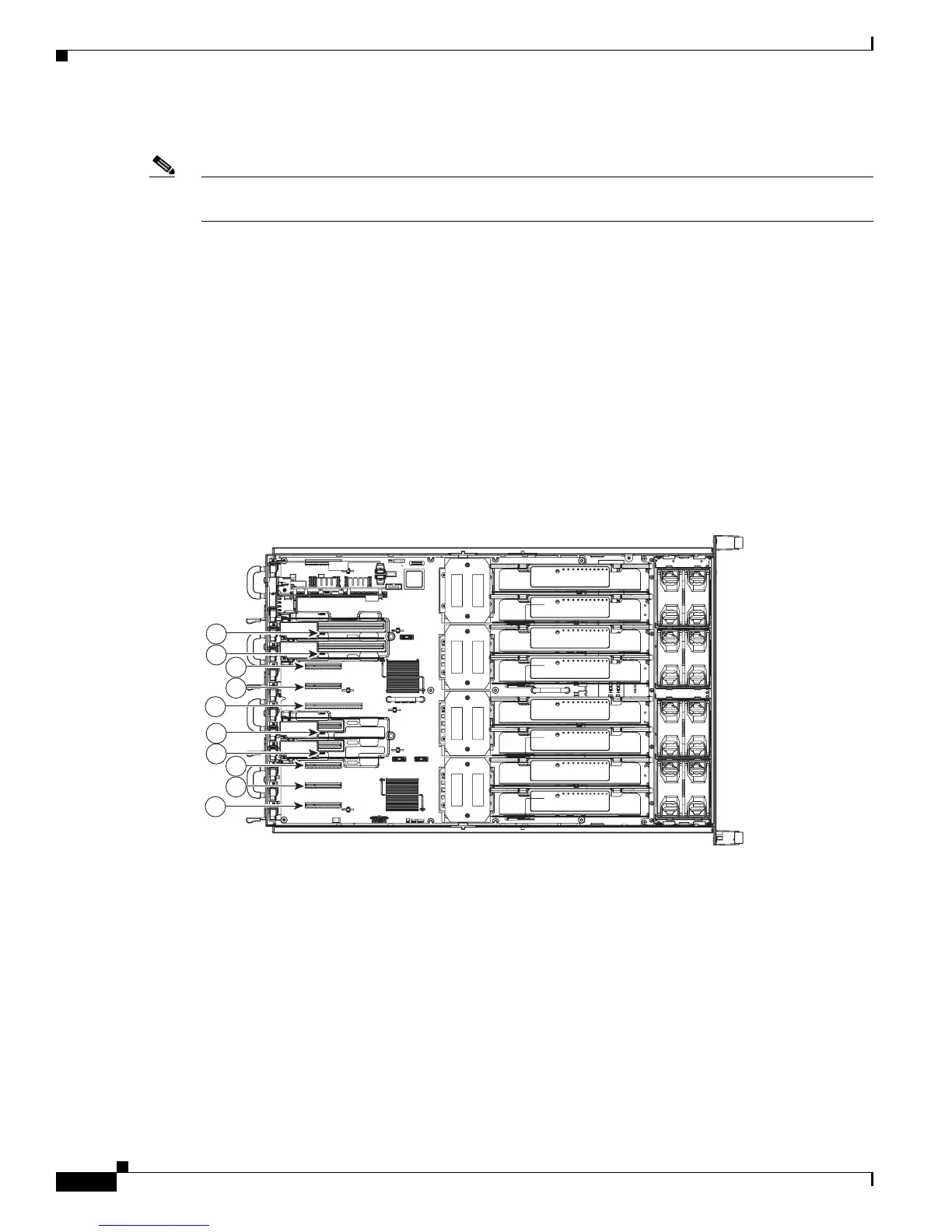

Figure 3-27 PCIe Slots
198935
1
6
7
2
3
4
8
9
5
10
