Cisco UCS C460 Installation And Service Guide

3-47
Cisco UCS C460 Server Installation and Service Guide
OL-22326-01z
Chapter 3 Maintaining the Server
Installing or Replacing Server Components
To install or replace an NVIDIA Tesla C2050 GPU card, follow these steps:
Step 1 Prepare the server for installation of the card:
a. Power off the server as described in the “Shutting Down and Powering Off the Server” section on
page 3-6.
b. Disconnect all power cords from the power supplies.
c. Slide the server out the front of the rack far enough so that you can remove the top cover. You might
have to detach cables from the rear panel to provide clearance.
Caution If you cannot safely view and access the component, remove the server from the rack.
d. Remove the top cover as described in the “Removing and Replacing the Server Top Cover” section
on page 3-7.
e. Open the two green PCIe retainer latches on PCIe slots 5 and 6 (see Figure 3-30).
f. Remove any PCIe cards or blanking panels from PCIe slots 5 and 6.
g. Remove the plastic divider assembly that is over PCIe slots 6 and 7 to make clearance for the card.
Pull up on the pin that attaches this divider assembly to the motherboard, then lift the assembly out
of the server. This pin is on the front end of the divider assembly where it touches the motherboard
(see
Figure 3-30).

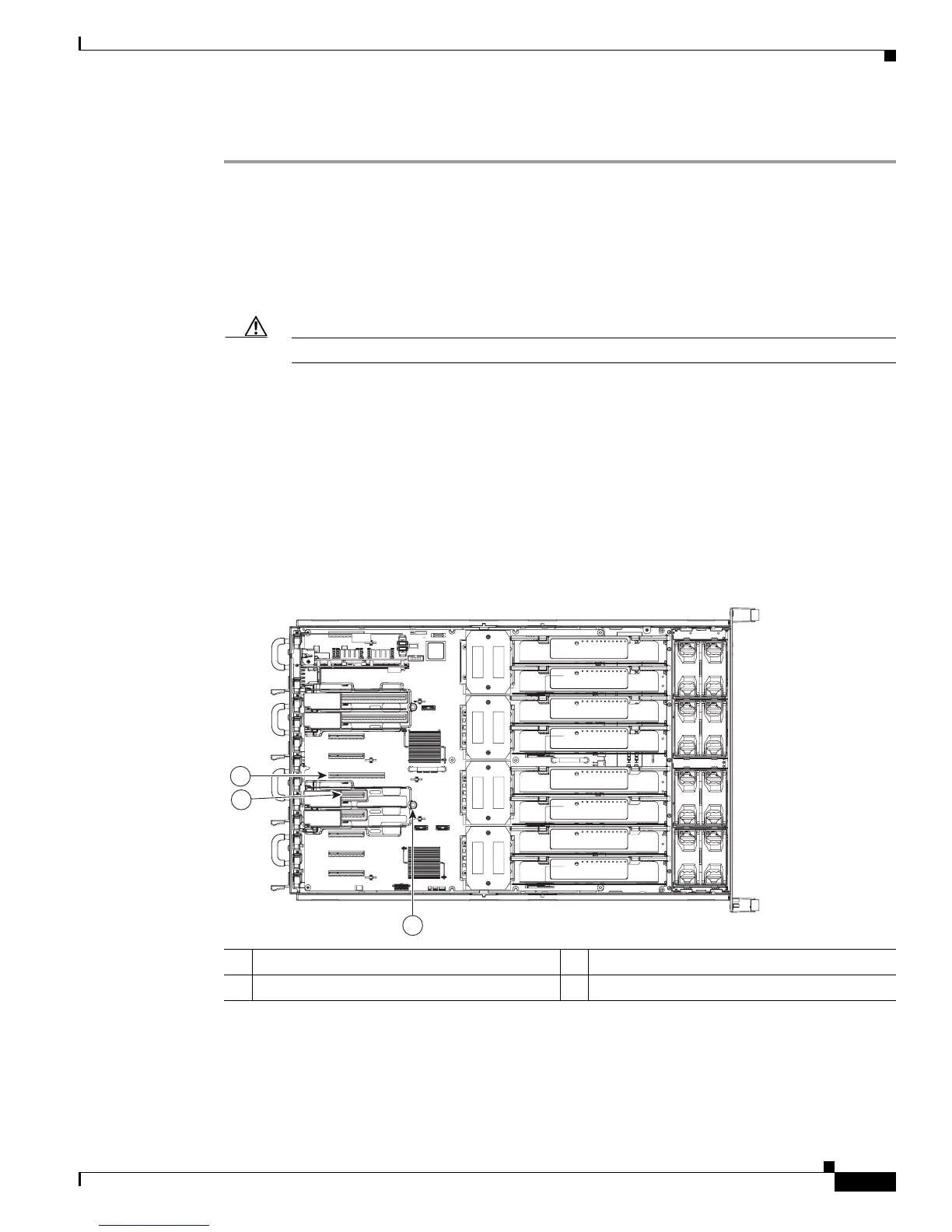

Figure 3-30 Cisco C2050 GPU Card Slots
2
1
3
330673
1 PCIe slot 5 3 Release pin on front of divider assembly
2 PCIe slot 6
