Cisco UCS C460 Installation And Service Guide

3-49
Cisco UCS C460 Server Installation and Service Guide
OL-22326-01z
Chapter 3 Maintaining the Server
Installing or Replacing Server Components
Step 4 Install the power cable adapter:
a. Disconnect the PCIe power cable from the motherboard. This is 10-pin connector J166 (see
Figure 3-32).
b. Connect the male 10-pin connector of the power cable adapter to the motherboard connector J166.
c. Connect the PCIe power cable into the female 10-pin connector on the power cable adapter, which
you attached to the card in
Step 2.
Step 5 Replace the top cover.
Step 6 Replace the server in the rack, replace power cords and any other cables, and then power on the server
by pressing the Power button.

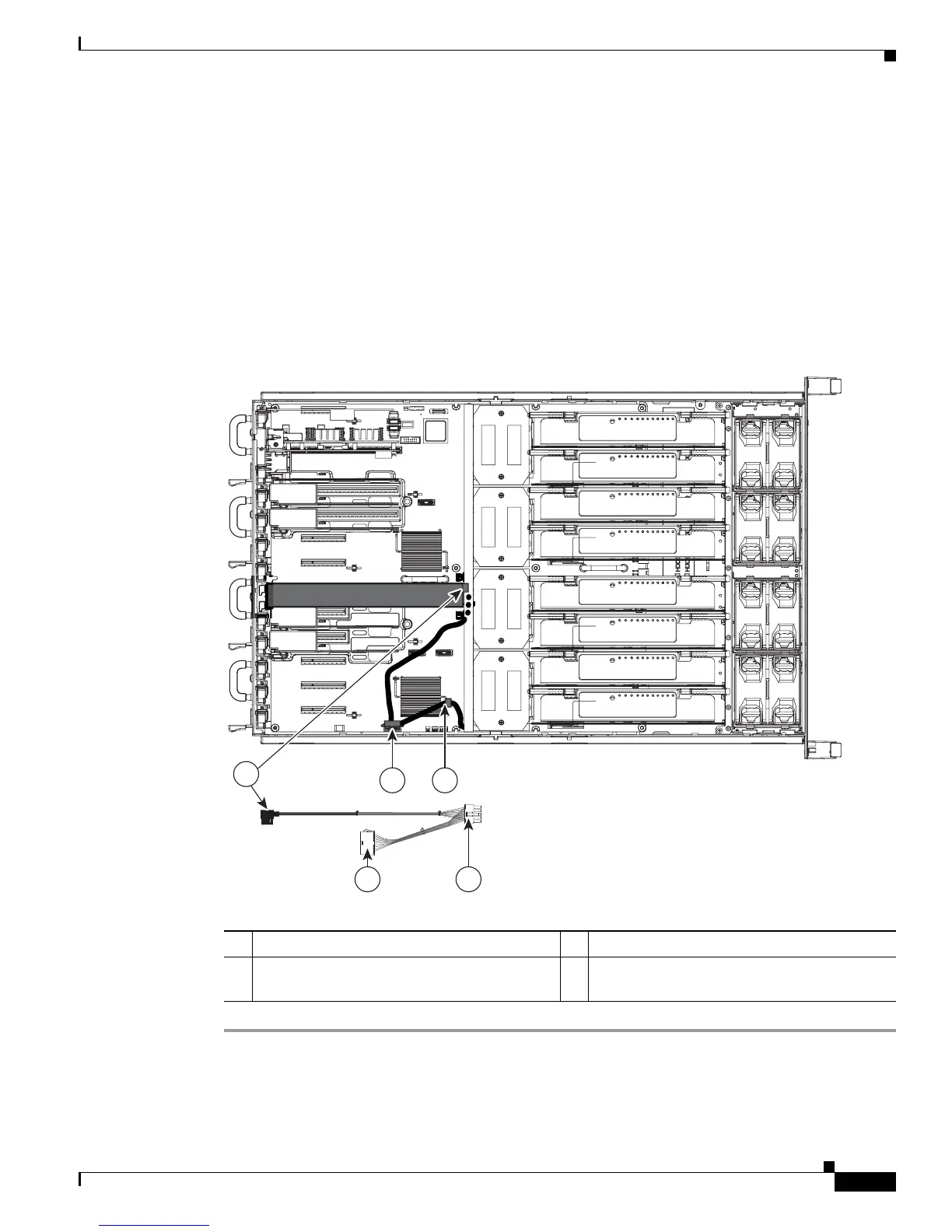

Figure 3-32 Installing and Cabling the GPU Card
330673
1
2
3
3 2
1 Six-pin connector to GPU card 3 Ten-pin female connector to PCIe power cable
2 Ten-pin male connector to motherboard
socket J166
