1-3
Cisco UCS 6100 Series Fabric Interconnect Hardware Installation Guide
OL-20036-02
Chapter 1 Product Overview
Cisco UCS 6120XP Chassis

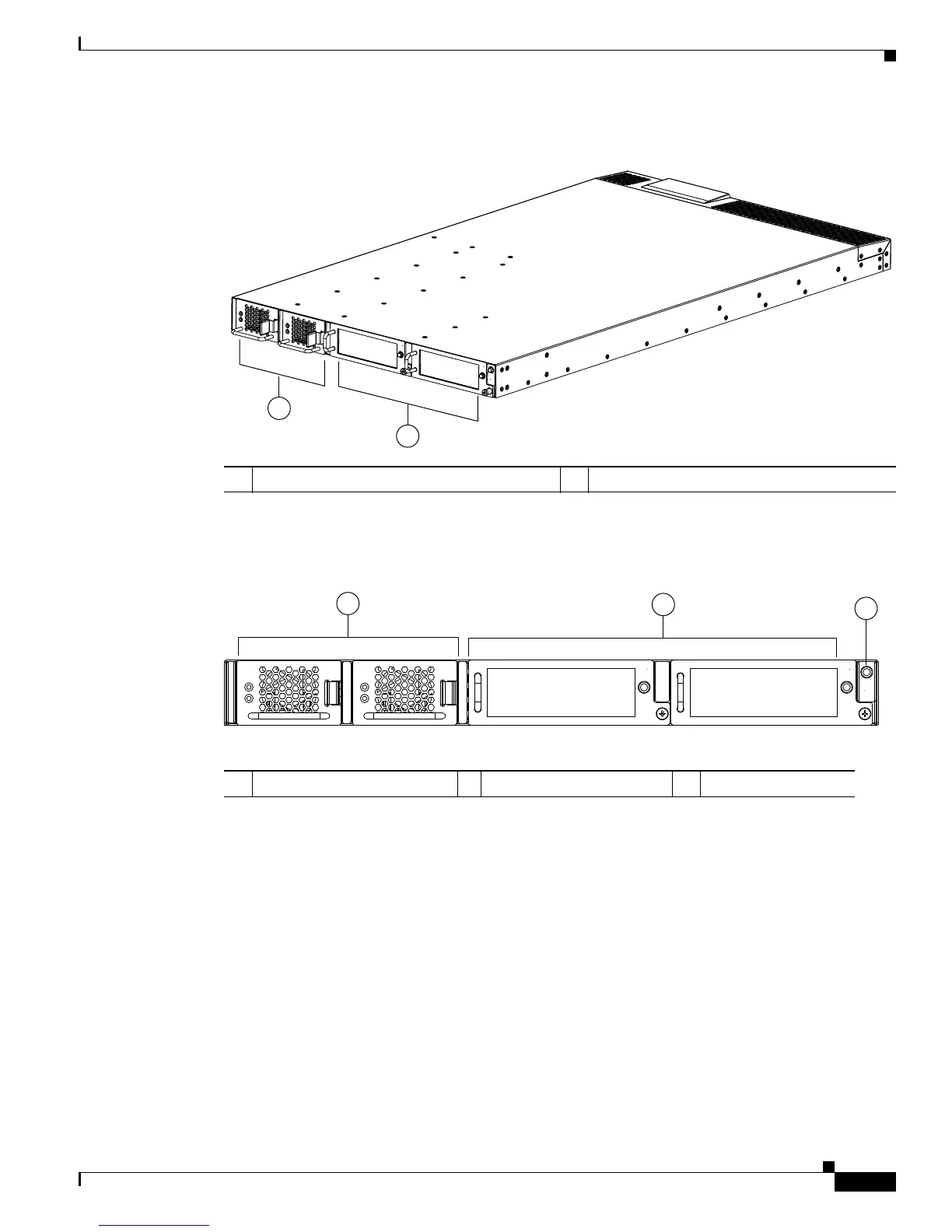

Figure 1-2 Cisco UCS 6120XP Front View
Figure 1-3 shows a close-up view of the front of the chassis.
Figure 1-3 Cisco UCS 6120XP Front View Close-up
The rear of the Cisco UCS 6120XP chassis has 20 fixed 10-Gigabit, Fiber Channel over Ethernet-capable
SFP+ Ethernet ports, 1 slot for an optional expansion module, an Ethernet connector with 2
cross-connect ports and 2 management ports, a console port, and 2 AC power connectors. Up to eight of
the 20 ports can be 1Gbps SFP ports if necessary.
Figure 1-4 shows the rear of the Cisco UCS 6120XP.
1 Two power supplies 2 Two fan modules
189949
2
1
189950
1
2
3
1 Two power supplies 2 Two fan modules 3 System status LED
